Everything You Need to Specify Trusscore in Your Next Project

Achieve your aesthetic, performance, and sustainability goals with Trusscore

Made from PVC, Trusscore products are designed to replace conventional wall systems made from plywood, painted drywall, and FRP panels in a broad range of commercial and agricultural applications.


Product dimensions

TrusscoreWall&CeilingBoard is available in a standard width of 16” and a standard length of 8', 10', 12', 14', 16’ or 20’. Custom lengths are available subject to minimum order requirements.

Durability

Trusscore Wall&CeilingBoard durability testing results are as follows:

  • Specific Gravity (ASTM D792): 1.46
  • Tensile Strength (ASTM D638): 6575 psi
  • Tensile Modulus (ASTM D638): 377,000 psi
  • Yield Strength (ASTM D638): 6575 psi
  • Drop Impact Resistance (ASTM D4226): 2.08 ln-lb/mil

Volatile organic compounds

Trusscore panels are low VOC compliant per the California Department of Public Health Standard Method v1.2 testing standard.

Light reflectivity

White Trusscore panels have a high light reflectivity (LR) score of 0.9, meaning 90% of light will be reflected when it hits our panels.

Antimicrobial testing

Per third party testing (ISO 846:2019), Trusscore Wall&CeilingBoard provides complete protection against mold and bacteria.

Fire performance

Trusscore Wall&CeilingBoard has a "Class A" fire rating with a flame spread index of 10 and smoke developed index of 380, per CAN/ULC S102 and ASTM E84 testing.

Recyclability

Trusscore products are 100% recyclable and can be reground and reused to make new materials.

Streamline your design process with our collection of CAD drawings

Below you’ll find PDF and DWG files of Trusscore Wall&CeilingBoard panel profiles, Trusscore trim profiles, and Trusscore Wall&CeilingBoard vertical and horizontal steel, wood, and concrete masonry unit (CMU) wall assemblies.

...
Trusscore Wall&CeilingBoard: Section & Elevation

PDF | DWG


...
45 Degree H Channel

PDF | DWG


...
Base Trim

PDF | DWG


...
F-Trim

PDF | DWG


...
H-Channel Snap-In Trim

PDF | DWG


...

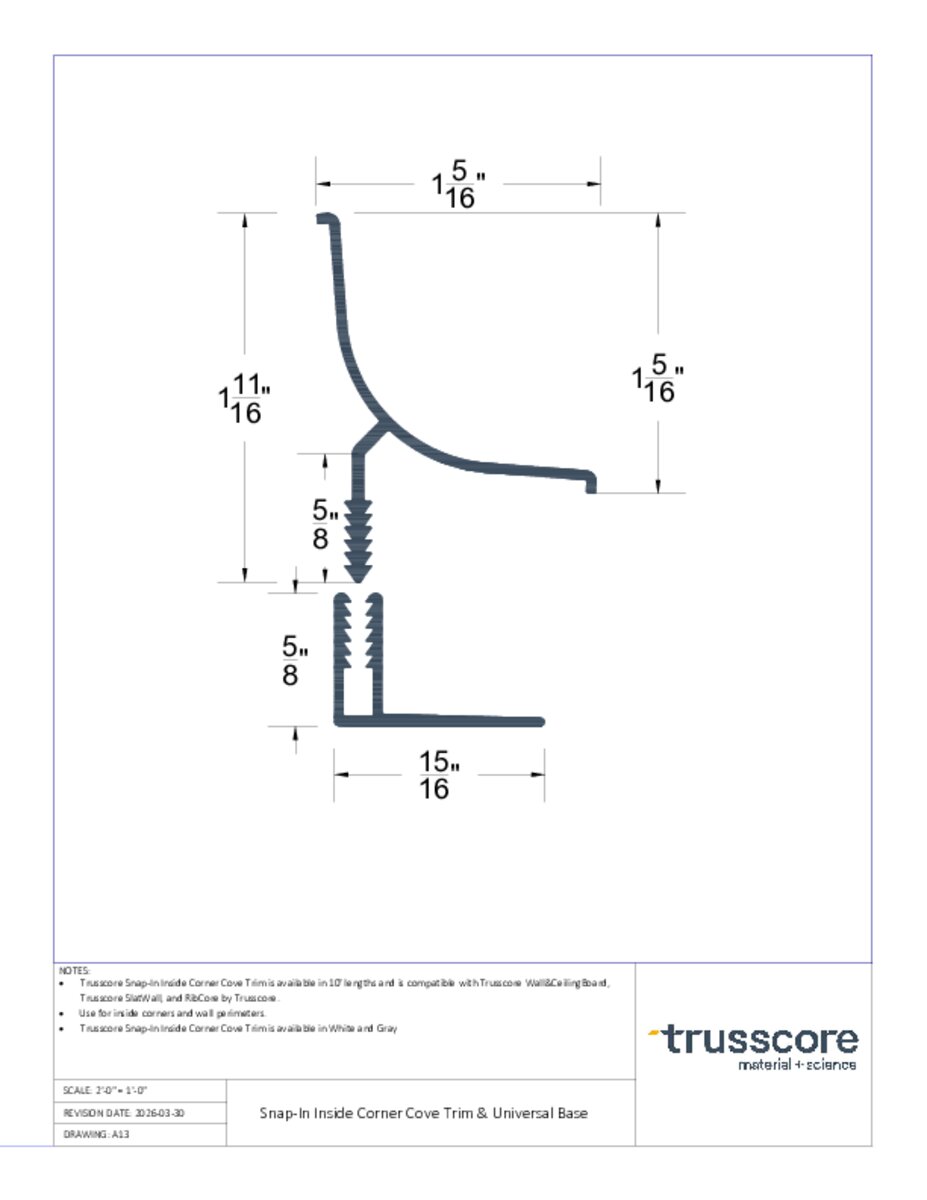

Inside Cove Corner

PDF | DWG


...

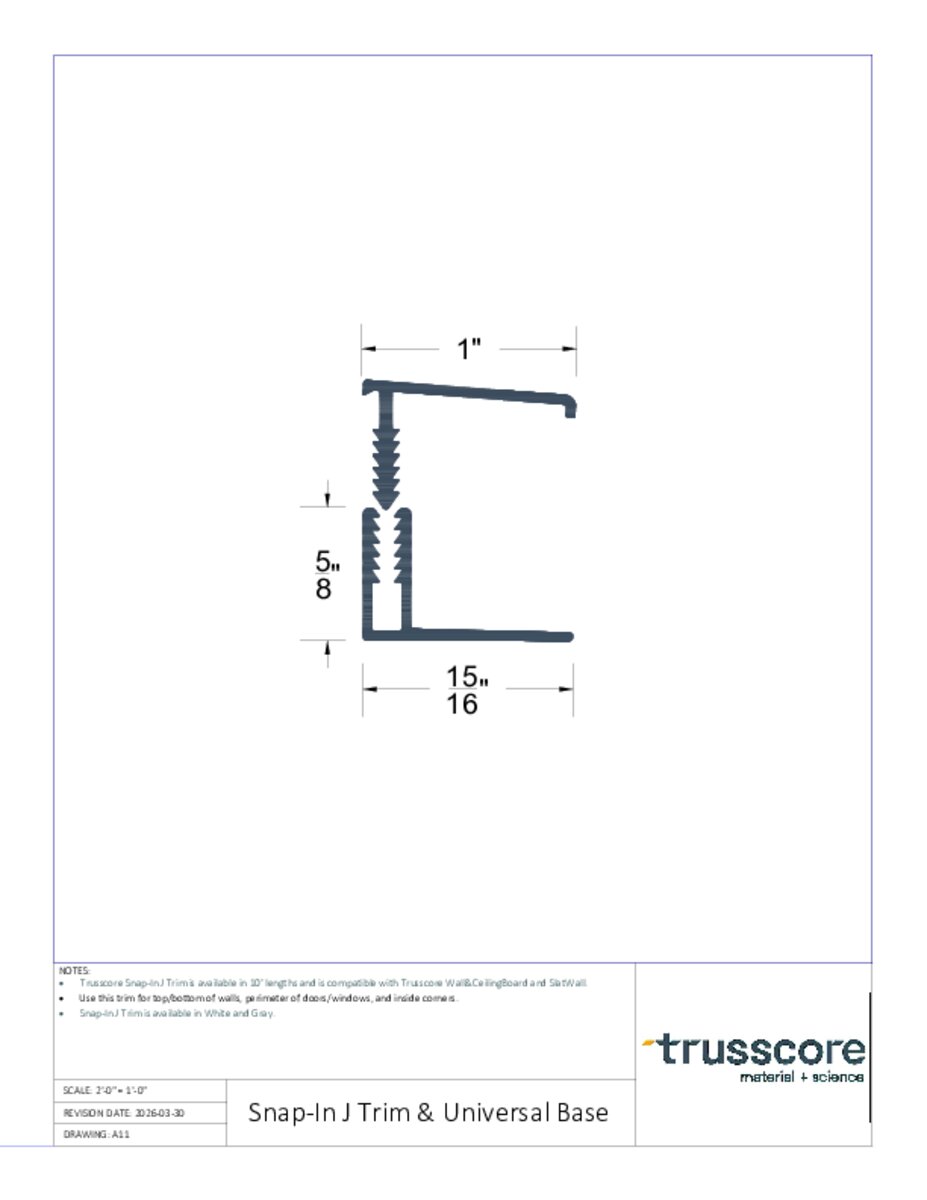

J-Trim

PDF | DWG


...
Outside Corner Rounded

PDF | DWG


...
Outside Corner Square

PDF | DWG


...
2Steel Stud With Insulation

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Square Corner

PDF | DWG


...
Steel Stud

Square Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Wood Stud

Square Corner

PDF | DWG


...
Wood Stud With Insulation

Square Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Steel Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded Corner

PDF | DWG


...
Steel Stud

Rounded Corner

PDF | DWG


...
Steel Stud With Insulation

Rounded Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Wood Stud

Rounded Corner

PDF | DWG


...
Wood Stud With Insulation

Rounded Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Square Corner

PDF | DWG


...
Steel Stud

Square Corner

PDF | DWG


...
Steel Stud With Insulation

Square Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Wood Stud

Square Corner

PDF | DWG


...
Wood Stud With Insulation

Square Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Steel Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
8" CMU

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded Corner

PDF | DWG


...
Steel Stud

Rounded Corner

PDF | DWG


...
Steel Stud With Insulation

Rounded Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Wood Stud

Rounded Corner

PDF | DWG


...
Wood Stud With Insulation

Rounded Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Door & Trim Installation

Horizontal Panel Installation

PDF | DWG


...
Door & Trim Installation

Vertical Panel Installation

PDF | DWG


...
Window & Trim Installation

Horizontal Panel Installation

PDF | DWG


...
Window & Trim Installation

Vertical Panel Installation

PDF | DWG


...
Wood Stud

Horizontal Panel Installation

PDF | DWG


...
Wood Stud

Vertical Panel Installation

PDF | DWG


Download product resources and technical information about Trusscore products

If you’re looking for more detailed technical information about Trusscore Wall&CeilingBoard, Trusscore SlatWall, NorLock by Trusscore, or RibCore by Trusscore, explore the resources below.

  • Residential Spaces - Application Sheet

    Trusscore wall systems are transforming the residential construction industry. Trusscore is perfect for residential spaces. (1.20 MB PDF) - *


  • Trusscore Poultry Application Sheet

    Poultry production facilities — for layers, broilers, breeders, and pullets — are some of the most demanding and harsh agriculture environments. Building them strong and keeping them clean with low maintenance is paramount to the productivity of your operations. (898.22 KB PDF) - *


  • Trusscore Hog and Pork Application Sheet

    In today’s competitive pork production business with strict biosecurity measures, maintaining clean and hygienic facilities that are high-strength and long lasting are critical for better productivity and profitability. (2.44 MB PDF) - *


  • Trusscore Dairy Application Sheet

    Dairy farmers know the problem areas in their barn because they’ve had to repair them several times. It’s time to choose a future-proof material that reduces the time and money spent on repairs that come with inferior products like FRP, glass board, concrete, plywood, and OSB. It’s time to choose Trusscore. (1.57 MB PDF) - *


  • Trusscore Car and Truck Washes Application Sheet

    Car and truck washes make heavy demands on its wall and ceiling coverings. The longevity of your facility depends heavily on your choice of materials. Trusscore has you covered. (735.68 KB PDF)

  • Wall&CeilingBoard - Installation Guide

    Detailed installation guide, also featuring tips, time-saving suggestions, and some must-do’s for a successful installation. (7.11 MB PDF) - *


  • NorLock - Installation Guide

    A quick, helpful guide for installing NorLock panels featuring technical specs and available trim and accessories (415.84 KB PDF) - *


  • SlatWall - Full Installation Guide

    Detailed installation guide, also featuring tips, time-saving suggestions, and some must-do’s for a successful installation. (5.10 MB PDF) - *


  • RibCore - Installation Guide

    Detailed installation guide, also featuring tips, time-saving suggestions, and some must-do’s for a successful installation (5.03 MB PDF)

Can’t find the information you’re looking for?

Contact us — a Trusscore Product Specialist is on hand with answers to any of your questions.

Ask an Expert

Participate in accredited Trusscore training sessions

Learn how to design beautiful and functional spaces using high-performance PVC wall and ceiling systems in this free one-hour course accredited by the American Institute of Architecture (AIA) and the International Design Continuing Education Council (IDCEC).

Whether you choose to participate in an on-demand, live virtual, or in-person training session, you’ll earn one Health, Safety, and Welfare (HSW) credit from the AIA and IDCEC, and one learning hour from the Ontario Association of Architects (OAA).

...

Watch On-Demand

Looking for flexibility? Get your credit immediately with our on-demand option. Complete this 1-hour course on yout own time.

...

Join a Live Session

It's your chance to learn the course and get answers to your questions in real-time.

No live sessions for this course are currently scheduled. Watch this space for updates.

...

Book a Session

Who doesn't love Lunch & Learns?
Gather your colleagues and let's do this!

Earn LEED certification credits with Trusscore

Leadership in Energy and Environmental Design — also known as LEED — is a globally recognized accreditation in the building sector which encourages green, sustainable building design. All Trusscore products, including Trusscore Wall&CeilingBoard can help builders earn credits in the Materials and Resources and Indoor Environmental Quality categories.

leed-table.svg

Visit our Trusscore & LEED Certification page to learn more.
