Trim for Wall&CeilingBoard / SlatWall / RibCore


Trims add the perfect touch to any project by providing a functional and distinctive design element—bringing your project to life. Trusscore provides a comprehensive assortment of trims to meet all your project needs.

At Trusscore, ease of installation is one of our core principles; that’s why we’ve added snap-in trims to our trim portfolio. Snap-in trims make installation a breeze for do-it-yourselfers and contractors alike by making the process quicker and easier. Before you start your next project, familiarize yourself with the Trusscore trim options available, and make your project clean, beautiful, and secure.

Looking for NorLock trims? Click below to download our NorLock trim brochure.

Download NorLock Trim Brochure

J Trim

J Trim is our most versatile trim. It’s used with multiple products and can be used in a variety of applications.

Use this trim for:

  • Top/bottom of walls
  • Window/door perimeter
  • Inside corners
  • SlatWall framing

Product #

  • 1/2” White - J Trim - TCT12J10
  • 1/2” Gray - J Trim - GTCT12J10
  • 3/4” White - J Trim - RCT34J10
  • 3/4” Gray - J Trim - GRCT34J10

Pieces per carton: 50
Length: 10’

J Trim
System Compatibility
Wall&CeilingBoard SlatWall RibCore
(1/2”) (3/4”) (3/4”)

H Channel Snap-In Trim Kit

The H Channel Trim is designed to safely accommodate any panel expansion or contraction in a safe way that preserves the beauty of your project.

Use this trim for:

  • Panel joints
  • Product transitions

Product #

  • White - TLT58WTC10K
  • Gray - GTLT58HC10K0

Pieces per carton: 20
Length: 10’

H Channel Snap-In Trim Kit
System Compatibility
Wall&CeilingBoard SlatWall RibCore

Inside Cove Corner

Our cove style inside corner is a clean and stylish option to complete the inside corners on your project.

Use this trim for:

  • Inside corners
  • Top / bottom of wet walls

Product #

  • White - TCT12IC10
  • Gray - GTCT12IC10

Pieces per carton: 25
Length: 10’

Inside Cove Corner
System Compatibility
Wall&CeilingBoard SlatWall RibCore

Outside Corner Rounded

Rounded outside corners are designed to form smooth, bullnosed outside corners for applications that require a softer touch.

Use this trim for:

  • Outside corners

Product #

  • White - TCT12IO10
  • Gray - GTCT12IO10

Pieces per carton: 15
Length: 10’

Outside Corner Rounded
System Compatibility
Wall&CeilingBoard SlatWall RibCore

Outside Corner

Outside corners are a standard for any wall installation.These tried-and-true trims neatly complete any wall.

Use this trim for:

  • Outside corners
  • Window trim

Product #
Small

  • White - TCT12OC10
  • Gray - GTCT12OC10

Large

  • White -  TCT12LOC10
  • Gray - GTCT12LOC10

Pieces per carton: 50 Sm/25 Lg
Length: 10’

Outside Corner
System Compatibility
Wall&CeilingBoard SlatWall RibCore

Base Trim

A transition trim that can be used to address the transition between wall panels and the floor of a room.

Use this trim for:

  • Bottom wall transitions

Product #

  • White - TCT12BT10
  • Gray - GTCT12BT10

Pieces per carton: 50
Length: 10’

Base Trim
System Compatibility
Wall&CeilingBoard SlatWall RibCore

F Trim

F trim is designed for specialized Wall&CeilingBoard applications that include soffit or bulkheads.  For RibCore, it will complete your corners.

Use this trim for:

  • Soffit/bulkhead transitions
  • RibCore inside/outside corners

Product #

  • 1/2” White - TCT12F10
  • 1/2” Gray - GTCT12F10
  • 3/4” White - RCT34IC10

Pieces per carton: 50
Length: 10’

F Trim
System Compatibility
Wall&CeilingBoard SlatWall RibCore

45° H Channel

45° H Channel is perfect for instances where two walls come together at an angle, allowing installers to adequately cover the transition between panels.

Use this trim for:

  • Wall to ceiling transition
  • Ceiling to ceiling transitions

Product #

  • White - TCT124510
  • Gray - GTCT124510

Pieces per carton: 25
Length: 10’

45° H Channel
System Compatibility
Wall&CeilingBoard SlatWall RibCore

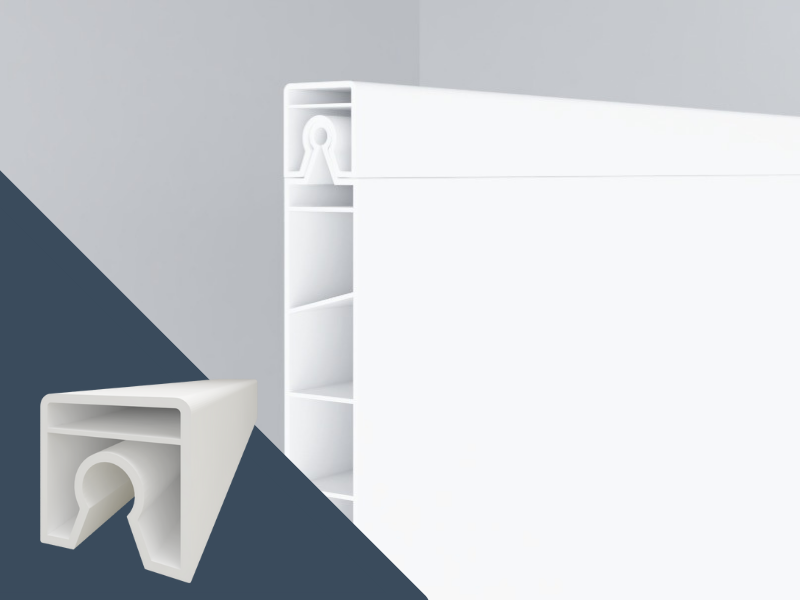

SlatWall Top Cap

Top caps provide a clean finish to the top of a SlatWall panel assembly. This prevents dust and dirt from accumulating behind your SlatWall panels.

Use this trim for:

  • Top of SlatWall installations

Product #

  • White - TLT58J08
  • Gray - GTLT58TC08

Pieces per carton: 50
Length: 8’

SlatWall Top Cap
System Compatibility
Wall&CeilingBoard SlatWall RibCore

Trim Overview

  Size Pieces / Carton Design Wall&CeilingBoard SlatWall RibCore
J Trim 10' 50  J Trim
Inside Cove Corner 10' 25 Inside Cove Corner
H Channel Snap-In Kit 10' 20  H Channel Snap-In Kit
Outside Corner 10' 25 or 50  Outside Corner
Outside Corner Rounded 10' 15  Outside Corner Rounded
F Trim 10' 50  f-trim-outline-256x256.png
Base Trim 10' 50 Base Trim
45° H Channel 10' 25  45° H Channel
SlatWall Top Cap 8' 50 SlatWall Top Cap

Snap-In Trims

The newest addition to the Trusscore trim lineup.

Trusscore’s Snap-in trims are the latest evolution in our products.  Designed to offer a quicker, easier, and more accurate installation experience, we’re confident that installers will love the improvements they bring to their job site.

  • Superior installation experience
  • Install trims 2 times faster
  • Easily determine accurate installation position of trim on the wall
  • Easily ensure proper expansion and contraction spacing between trim and board
  • Quickly review and inspect board spacing by detaching the cap after project completion
  • Durable design that will last

H channel snap-in diagram

Installation

Fasteners

Wood – #10 x 1-1/4” Truss or Pancake Head screws
Concrete – 3/16” x 1-1/4” Flathead screw (Tapcon)

Use only corrosion-resistant (galvanized, stainless steel or aluminum) screws with a minimum head diameter of 3/8”.  The recommended fastener length is 1-1/4” for wood studs or masonry, 1-1/2” or 2” for drywall installation, and 2-1/2” if furring strips are used for strapping.

Note: Large & Small Outside Corners are the exception.  They are installed with silicone caulk adhesive to avoid visible fasteners.

Fasteners

Cutting

Tin snips are the safest and easiest tool to use when cutting trims.  For a cleaner cut, avoid closing the blades at the end of a stroke.

Tin Snips

Spacing

It is essential that a minimum of 1/4” clearance is left at the ends of all panels and trims to allow for expansion and contraction.

Spacing

Install Order

When installing walls, the following trims should be installed before the panels:

  • Bottom of wall - J Trim or Base Trim
  • Top of Wall – J Trim or Inside Cove Corner
  • Perimeter of doors and windows – J Trim

Note: Large & Small Outside Corners must be installed after your Wall&CeilingBoard, SlatWall or RibCore panels are installed

Wet Applications (Carwash, Etc.)

Base trim should be used at the bottom of walls in wet applications.  Alternatively, J Trim can be used if ¼” diameter holes are drilled every 16” in the bottom of the trim for drainage.

Hole in J Trim

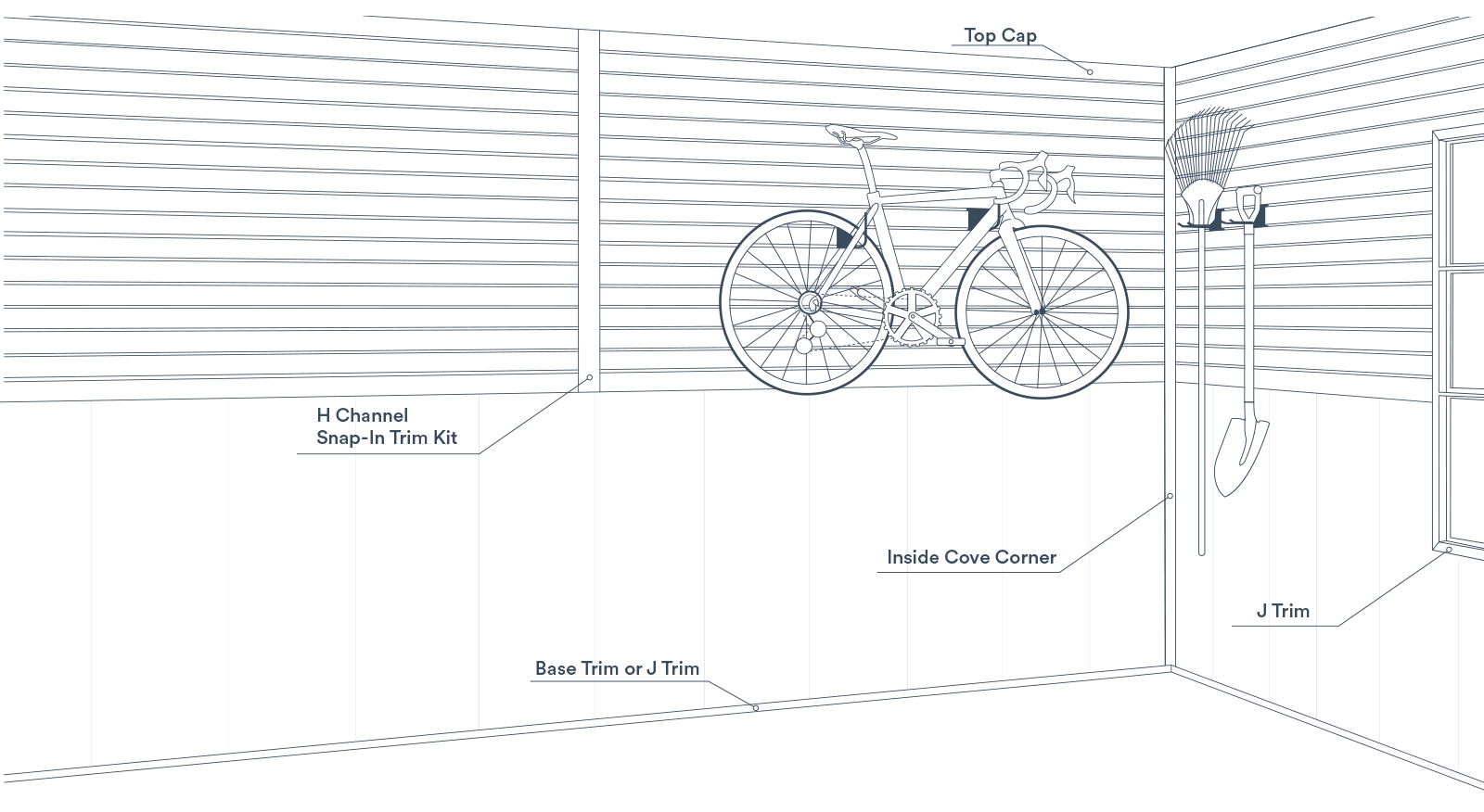

Garage Trims Diagram
