Trusscore Wall&CeilingBoard

Interlocking PVC panels for interior walls and ceilings

Trusscore Wall&CeilingBoard is lightweight, low maintenance, and lasts a lifetime

Designed with a high-strength polymer formulation, Trusscore Wall&CeilingBoard is the perfect, sustainable alternative to traditional drywall and fiberglass reinforced plastic (FRP) systems.

...

Strong & Durable

Trusscore wall and ceiling panels are scratch, dent, and damage resistant and are designed to outlive the buildings they're installed in.

...

Quick & Easy to Install

Trusscore Wall&CeilingBoard weighs less than drywall, installs four times faster, and only requires one person for installation.

...

Moisture & Water Resistant

Waterproof Trusscore panels won’t degrade or deteriorate in wet or damp environments and will never grow mold or mildew.

...

High Light Reflectivity

White and gray wall and ceiling panels maximize natural and fixture lighting to boost energy efficiency and make small, darker spaces appear larger.

...

Environmentally Friendly

Trusscore products are 100% recyclable and can be reground into new materials during the manufacturing process.

Trusscore Wall&CeilingBoard

Change the way you build for the better with PVC-based paneling

Available in 8', 10', 12', 14', 16', and 20' lengths, Trusscore Wall&CeilingBoard combines superior performance with a seamless finish to meet all your residential, commercial, or agricultural project needs. Panels are also available in two colors for design flexibility and are compatible with a variety of PVC-based trims to help you put the finishing touch on any project.

...

Product Color Product Dimensions Product Number
White 8' x 16" x 1/2" TC1608
10' x 16" x 1/2" TC1610
12' x 16" x 1/2" TC1612
14' x 16" x 1/2" TC1614
16' x 16" x 1/2" TC1616
20' x 16" x 1/2" TC1620
Product Color Product Dimensions Product Number
Gray 8' x 16" x 1/2" GTC1608
10' x 16" x 1/2" GTC1610
12' x 16" x 1/2" GTC1612
14' x 16" x 1/2" GTC1614
16' x 16" x 1/2" GTC1616
20' x 16" x 1/2" GTC1620
Trim Type White Gray
½" J Trim TCT12J10 GTCT12J10
H Channel Snap-In Trim Kit TLT58WTC10K GTLT58HC10K
Inside Cove Corner  TCT12IC10 GTCT12IC10
Outside Corner TCT12OC10 GTCT12OC10
Outside Corner Rounded  TCT12IO10 GTCT12IO10
Base Trim TCT12BT10  GTCT12BT10
F Trim TCT12F10 GTCT12F10
45° H Channel  TCT124510 GTCT124510
Inner Truss Design

Trusscore Wall&CeilingBoard panels are ½ inch thick and has a unique inner truss design for high-strength and rigidity.

Hidden Screws

Panels have a unique tongue and groove design that interlocks, making installation quick and easy and hiding all screws for a smooth finish.

Antimicrobial Properties

Non-porous, antimicrobial Trusscore panels provide complete protection against the growth of mold, bacteria, and viruses.

Class A Fire Performance

Trusscore Wall&CeilingBoard has a "Class A" fire rating with a flame spread index of 10 and a smoke developed index of 380.

Regulatory Compliance

Trusscore products are CFIA, USDA, FDA, and cGMP compliant for use in food processing and commercial agricultural facilities.

How much does Trusscore Wall&CeilingBoard cost?

When you purchase Trusscore Wall&CeilingBoard, you may have to invest a little extra up front, but you’ll save money in the long run. How? It’s simple — our products are designed to minimize the total cost of installation materials, labor, and maintenance while never having to be replaced.

The Trusscore products you choose and how you use them in your space can widely affect your project cost - the possibilities are endless! For exact pricing for your project, we’ll connect you with a retailer near you.

To help you understand how much your project might cost, here are a few examples of the most popular applications, designs, and their ballpark project costs to help you start budgeting.

Laundry Room

6 x 10


Basement

18 x 24

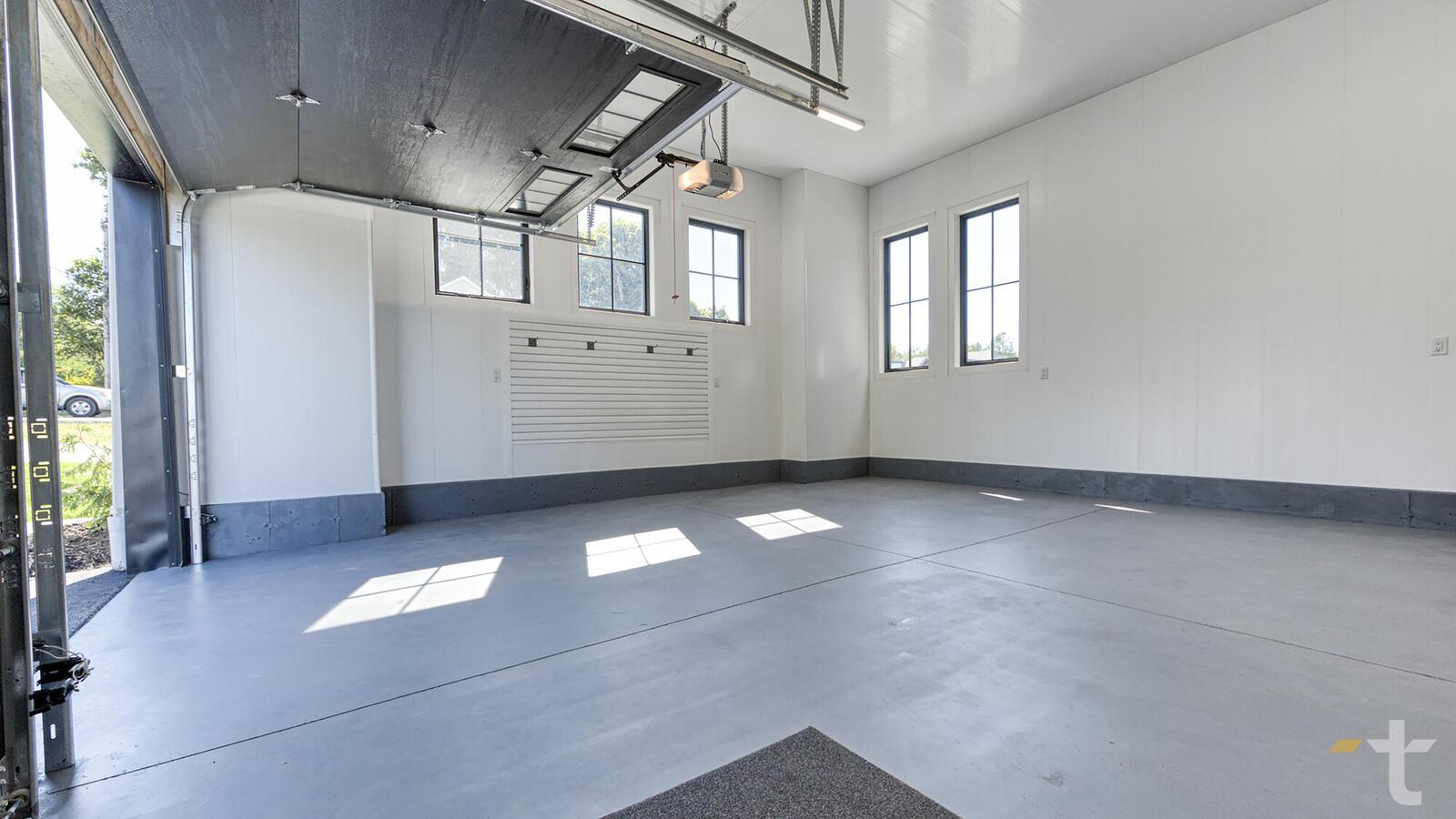

Garage

20 x 20


What makes Trusscore Wall&CeilingBoard better than its competitors?

For starters, Trusscore Wall&CeilingBoard is easier to handle and installs faster than drywall and FRP while being 100% recyclable — but the benefits don’t stop there. Dive deeper into how our products stack up against each alternative one-on-one.

vs. Drywall vs. FRP

Where can you install Trusscore?
Nearly everywhere.

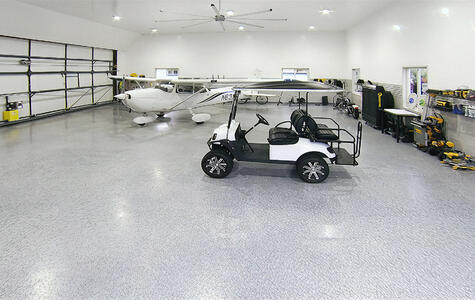

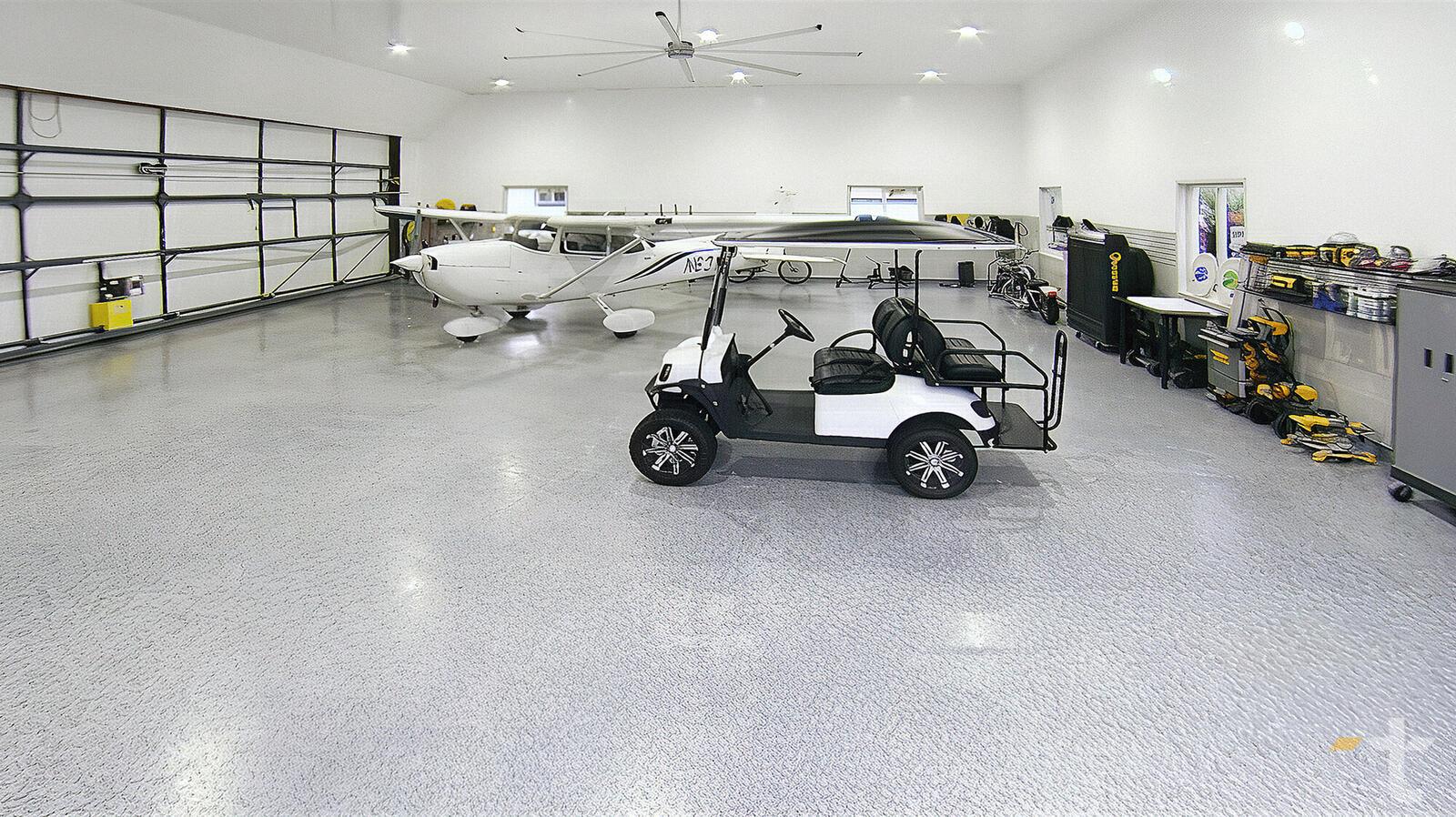

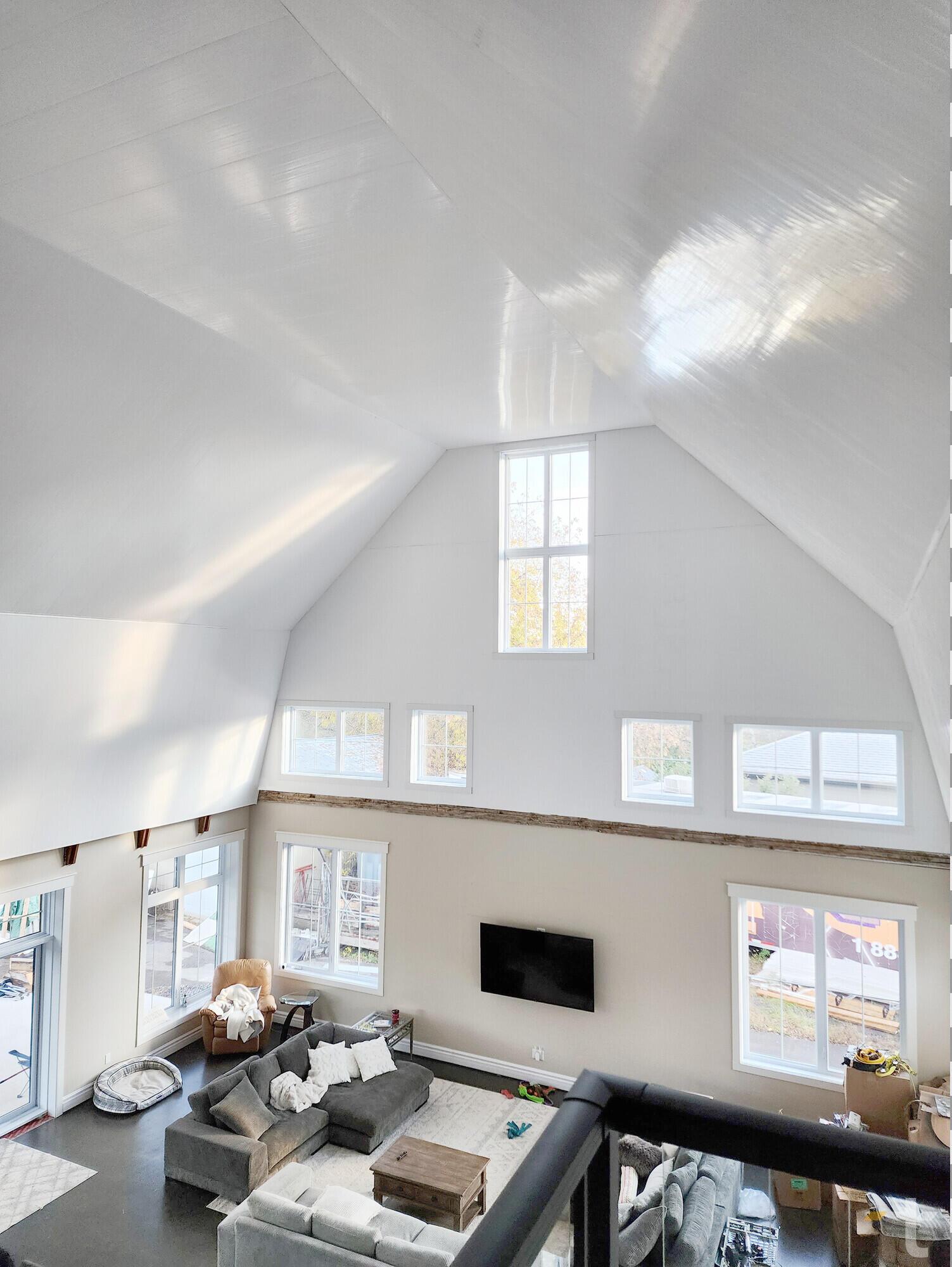

Whether it’s a garage, an office, or a barn, Trusscore Wall&CeilingBoard has your project covered.

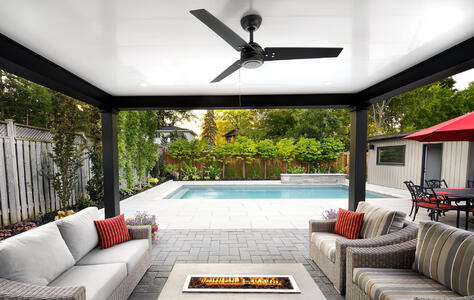

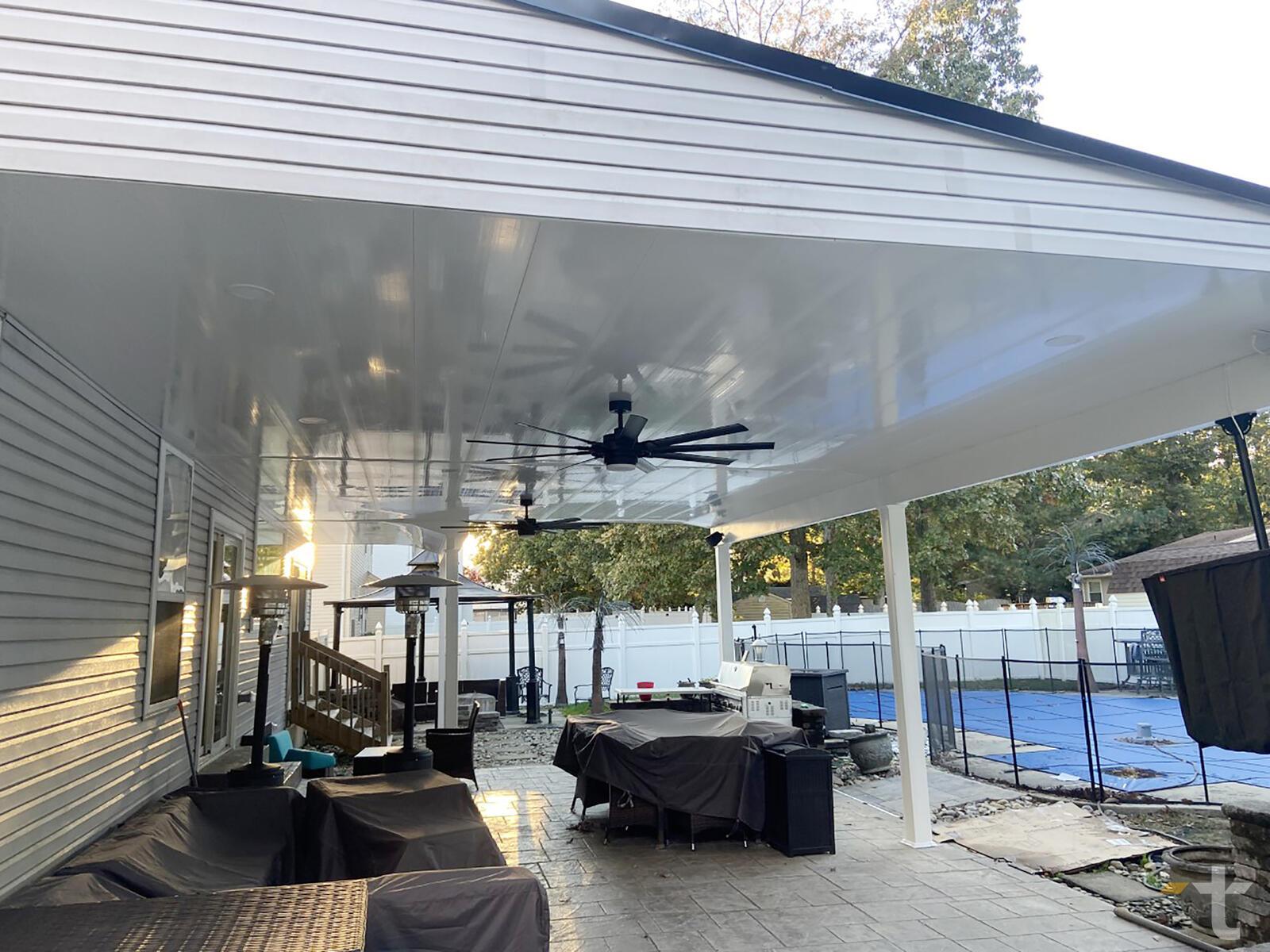

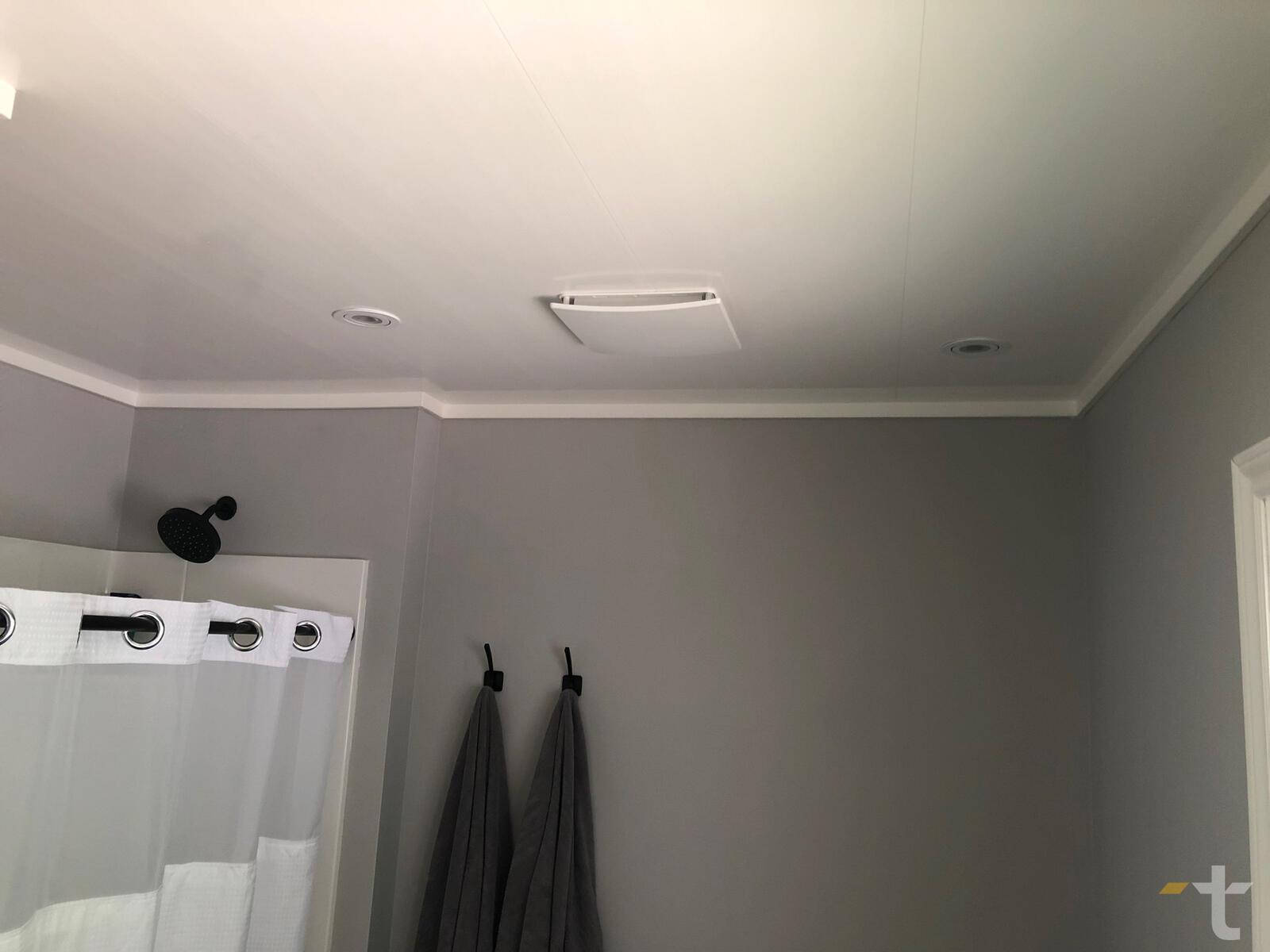

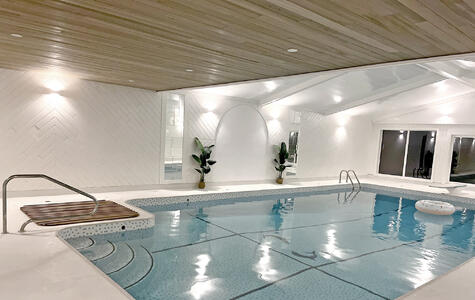

High-performance PVC solutions for residential applications

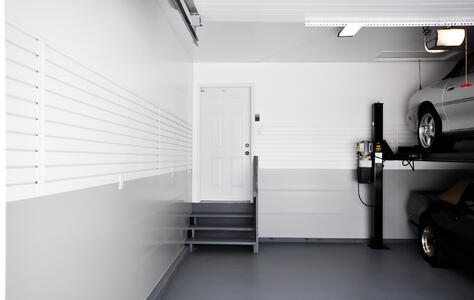

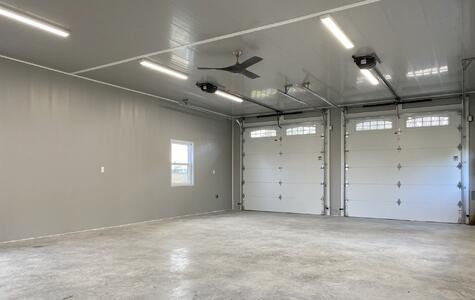

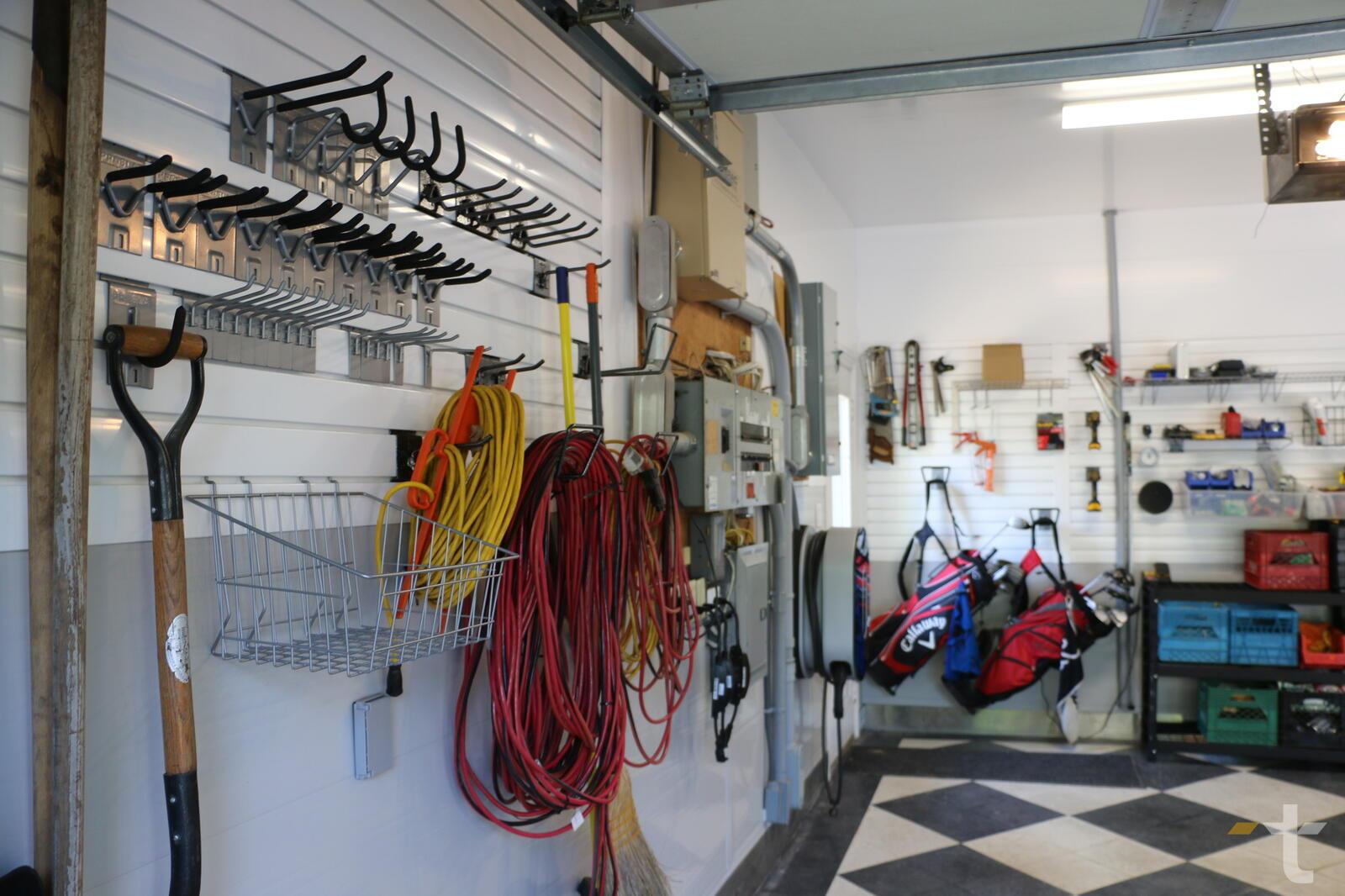

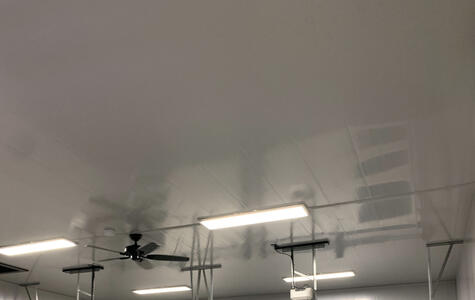

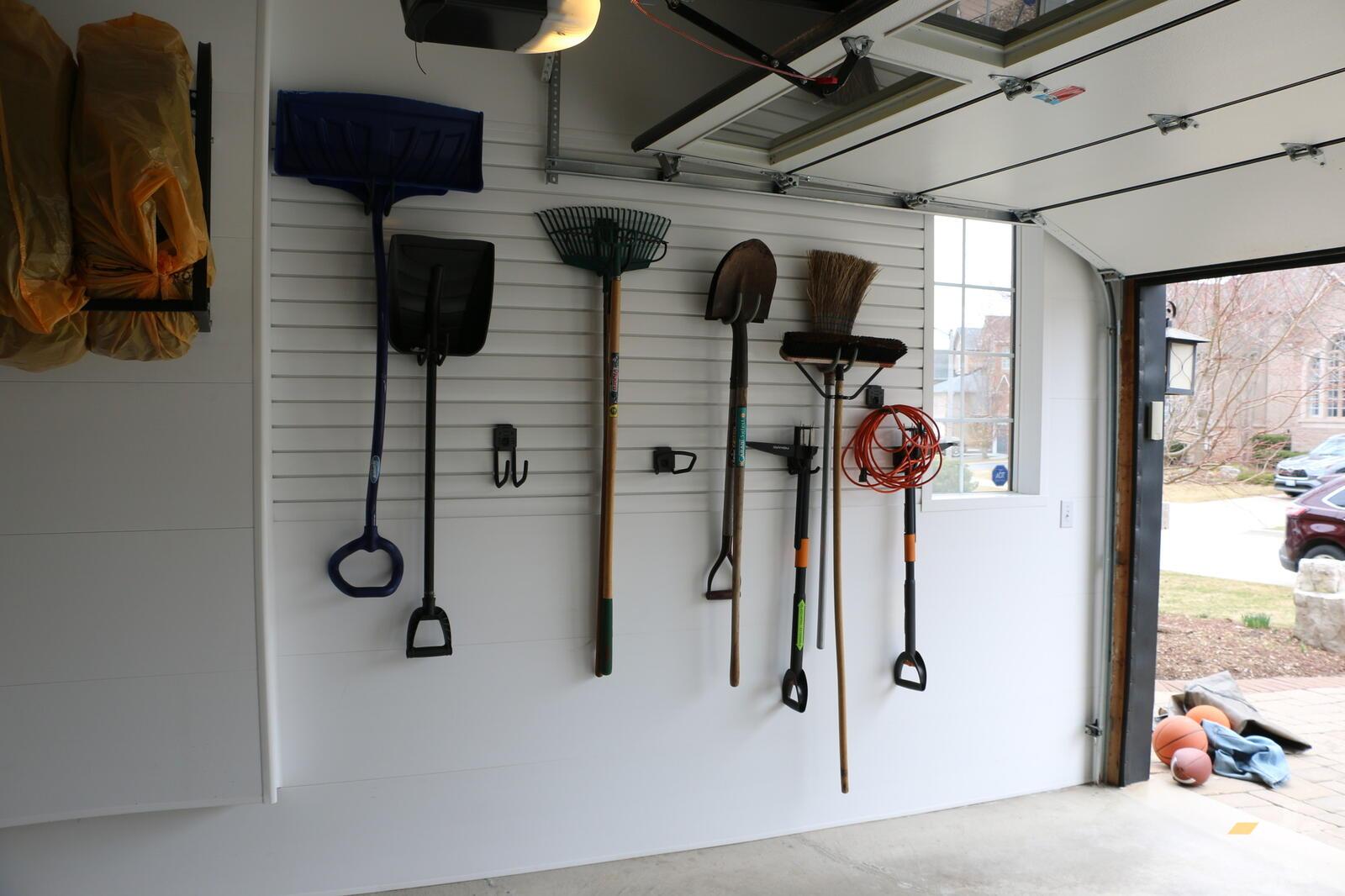

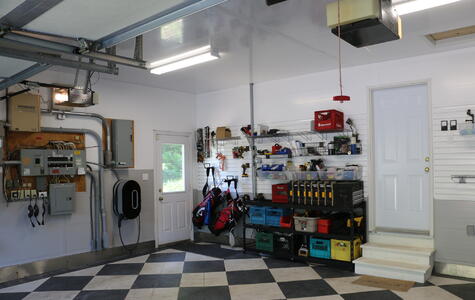

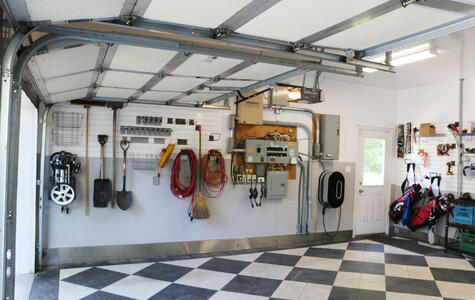

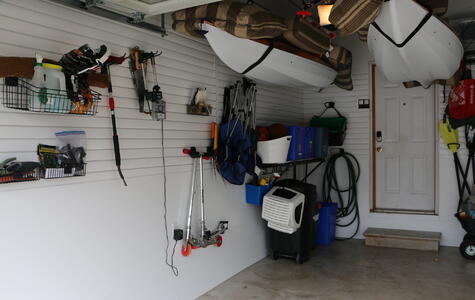

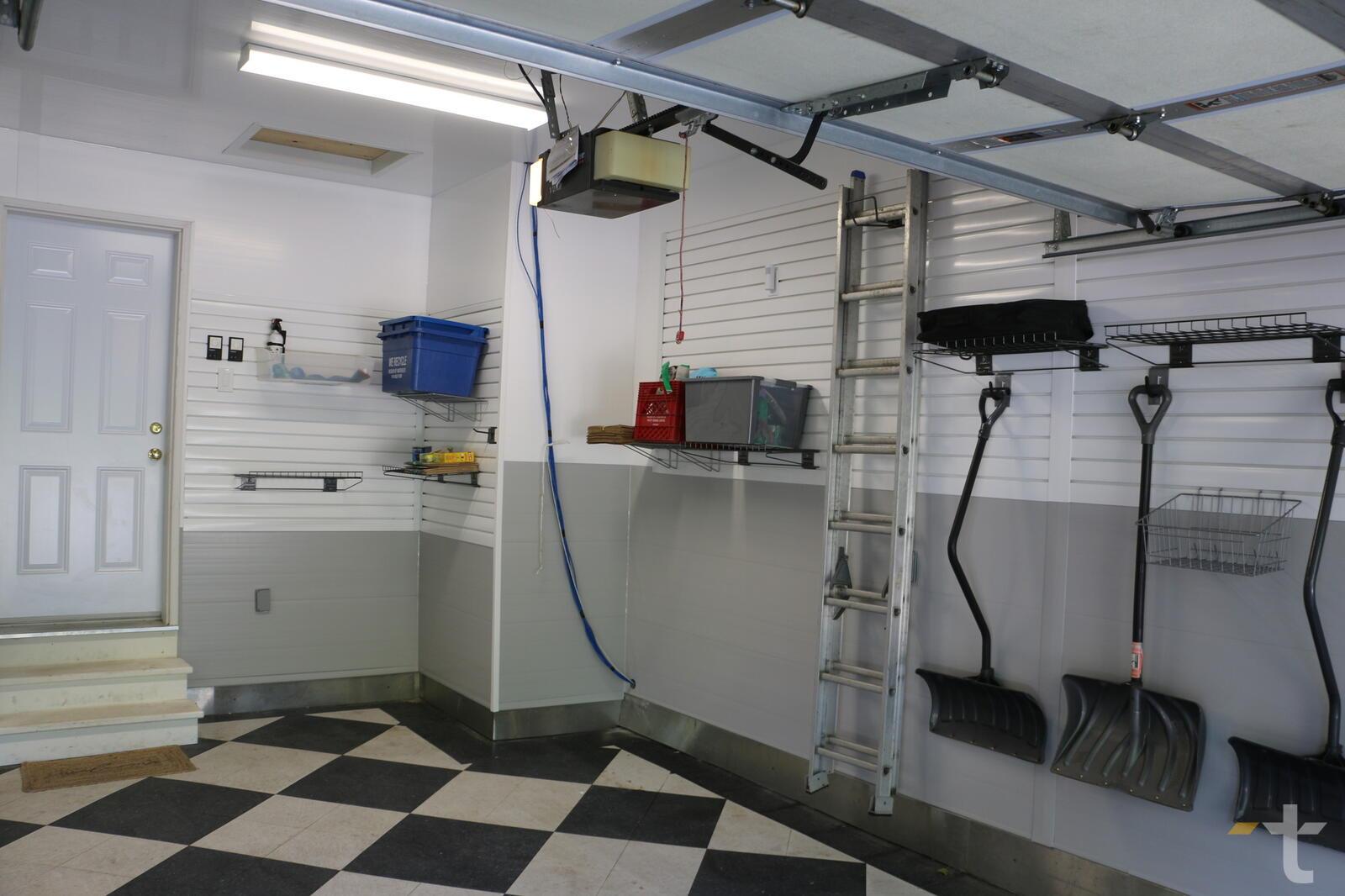

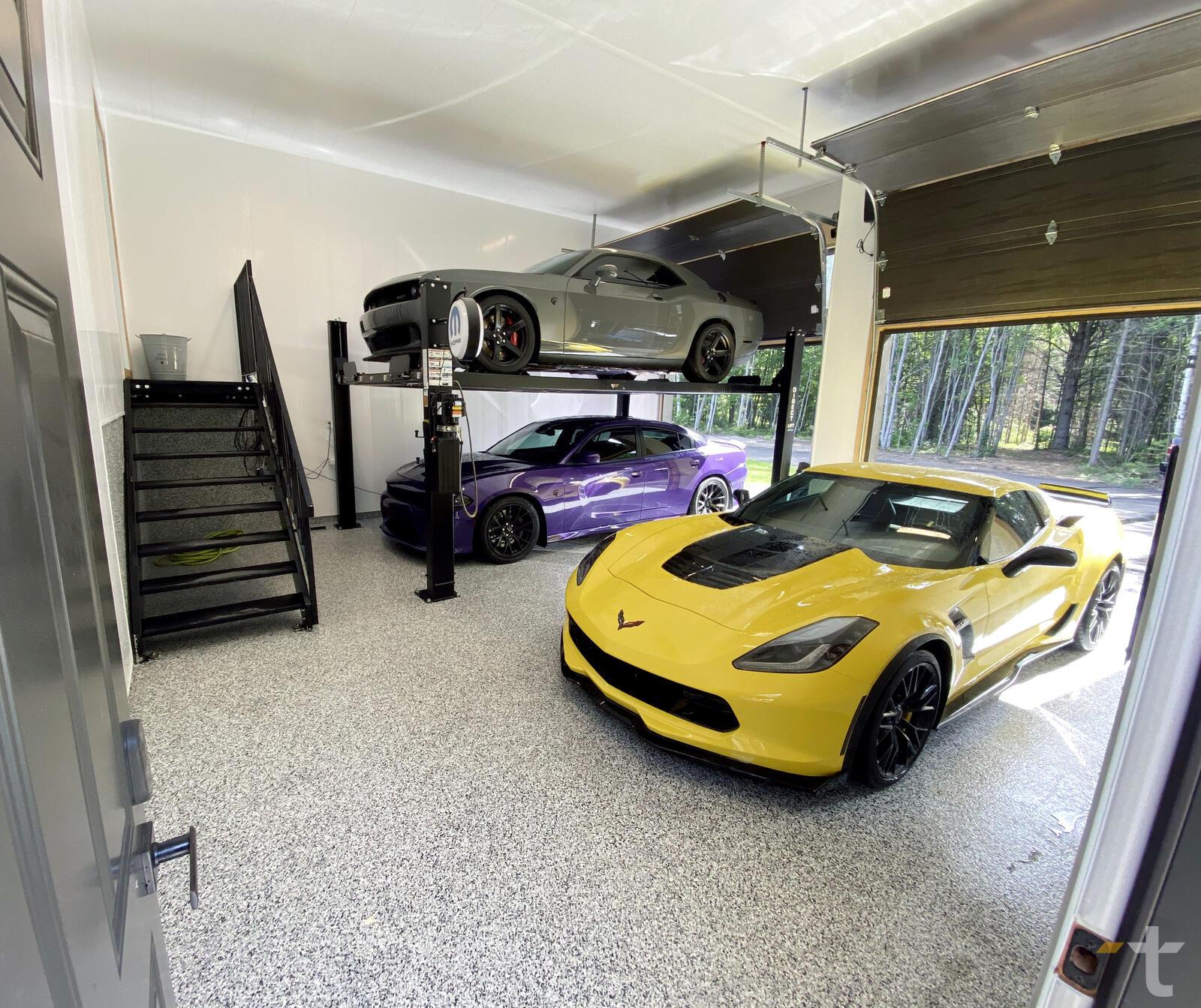

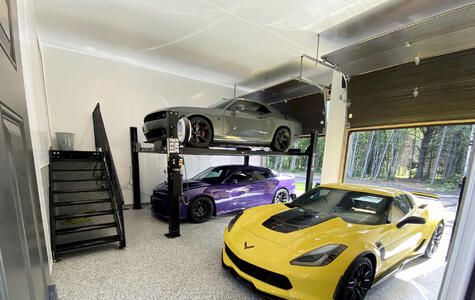

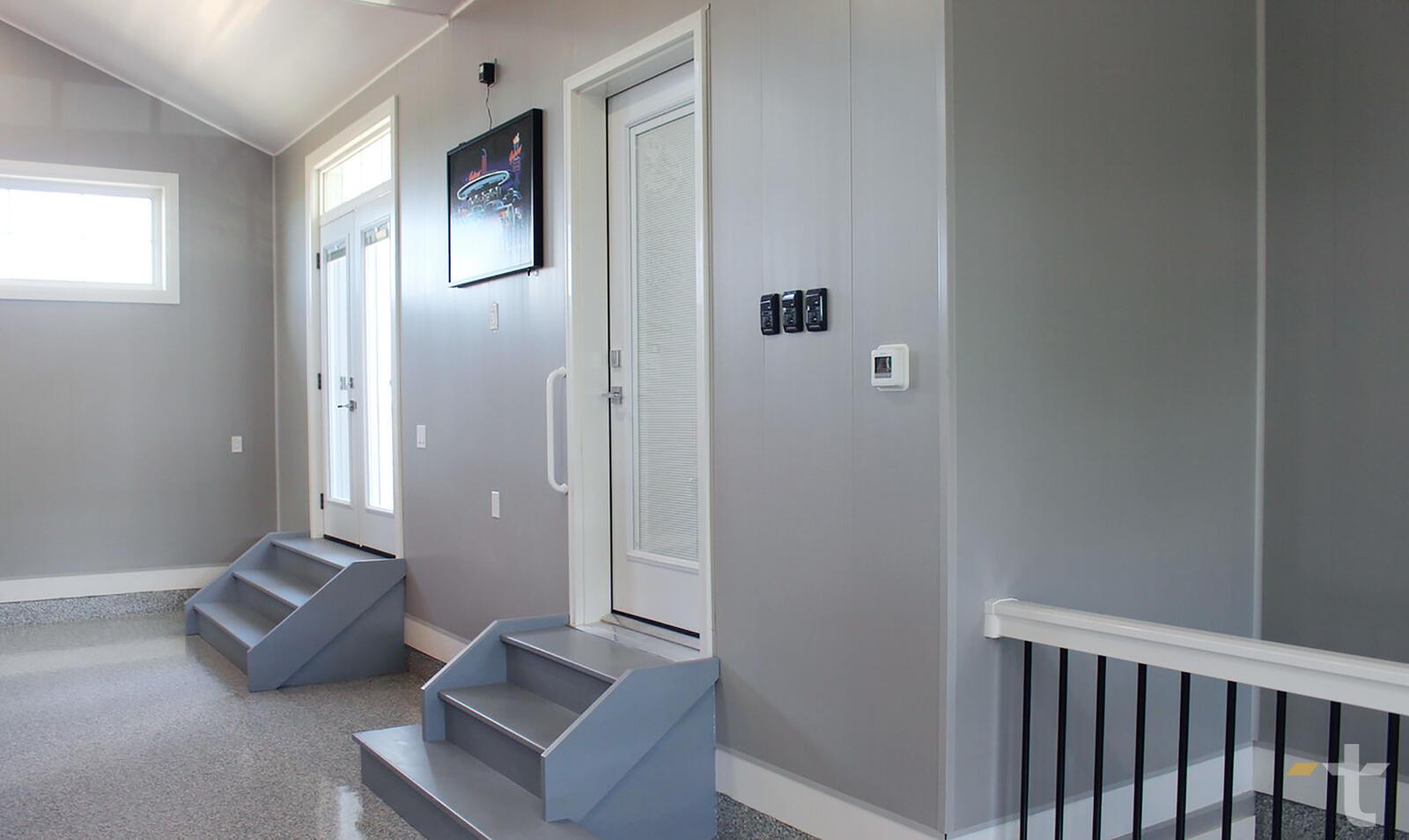

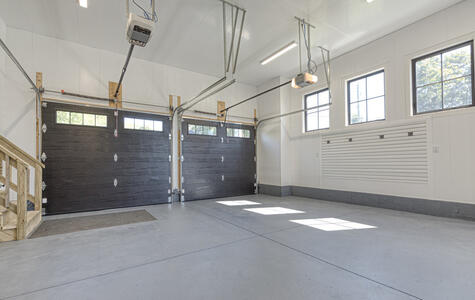

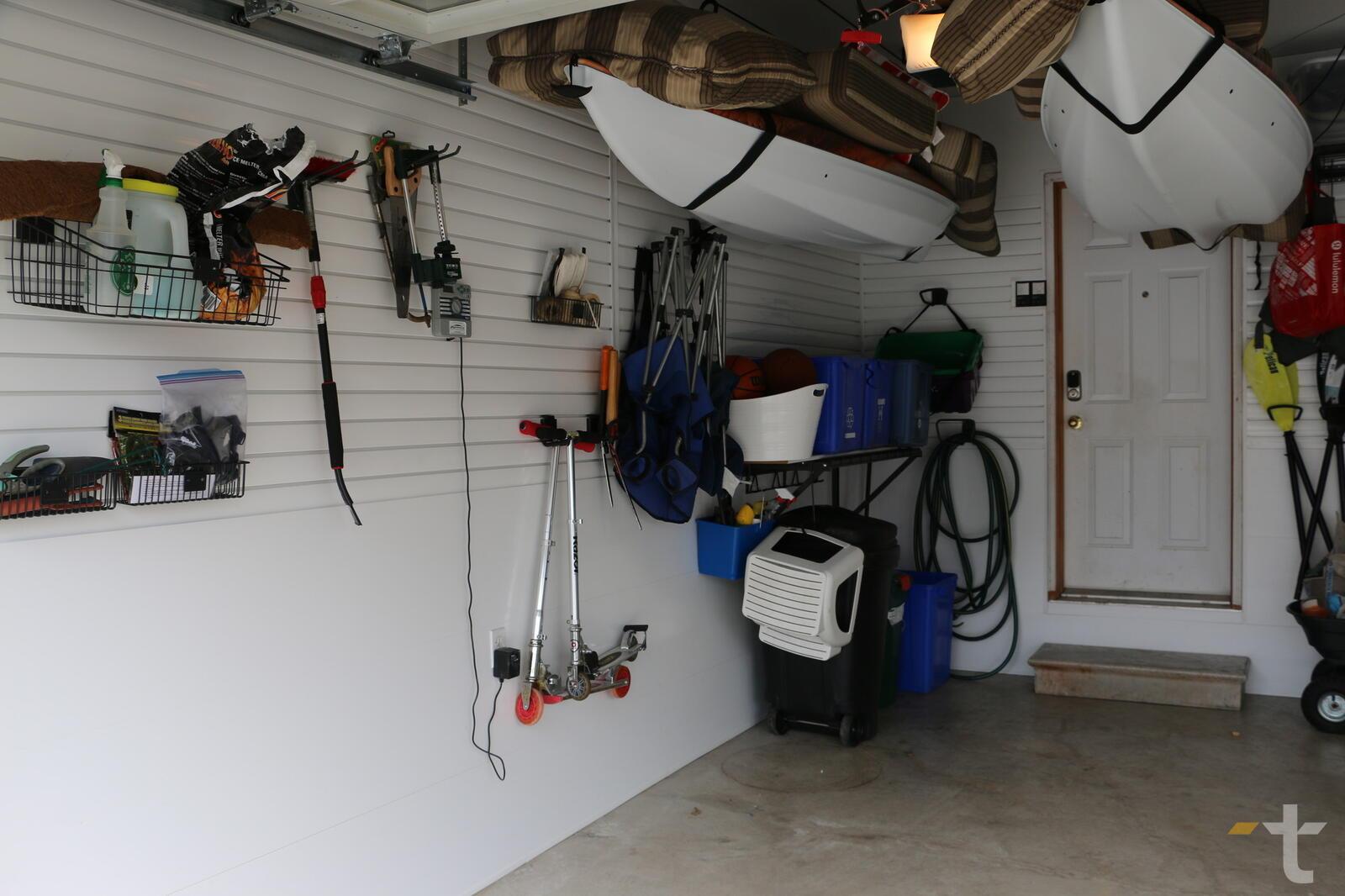

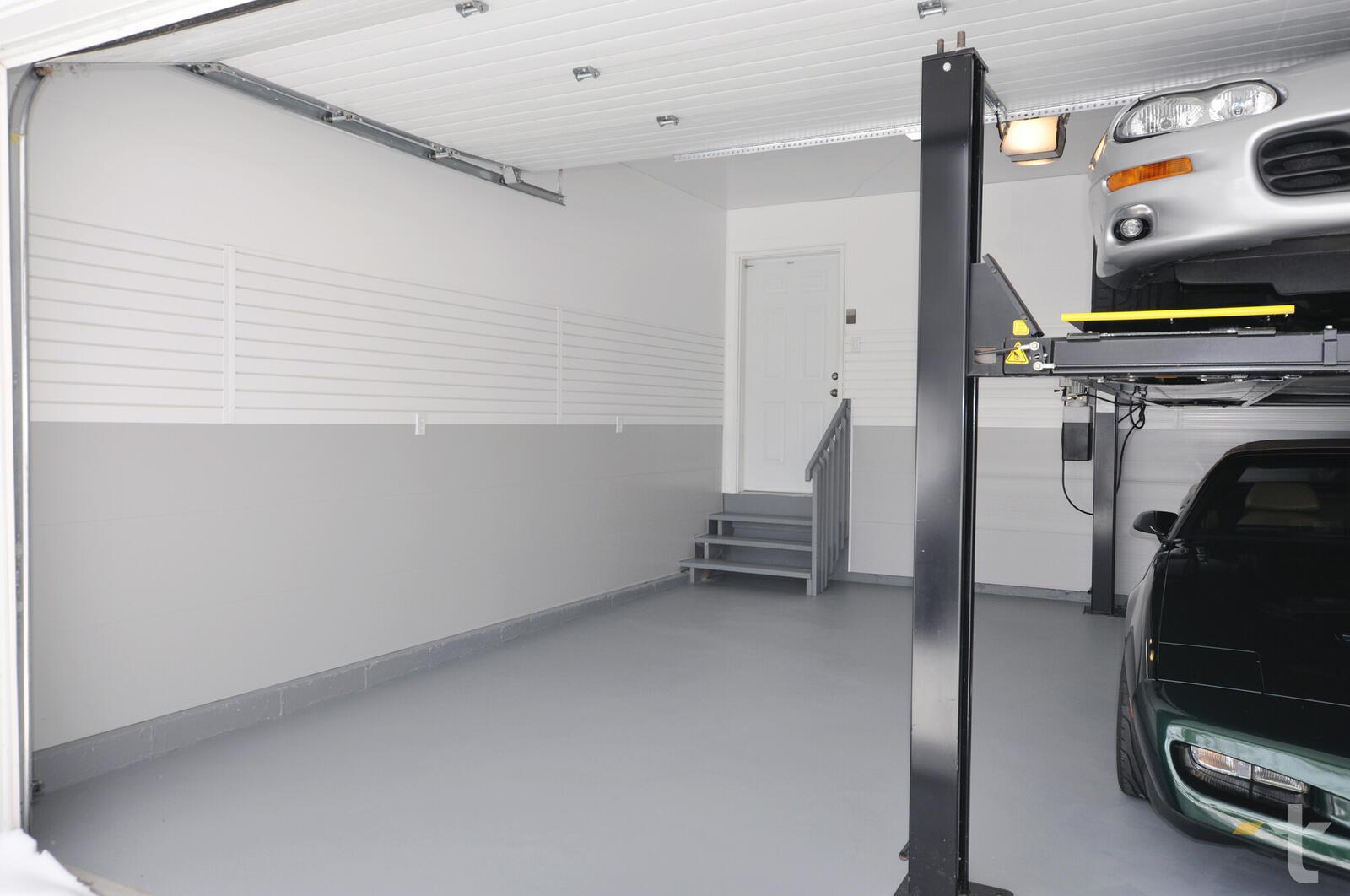

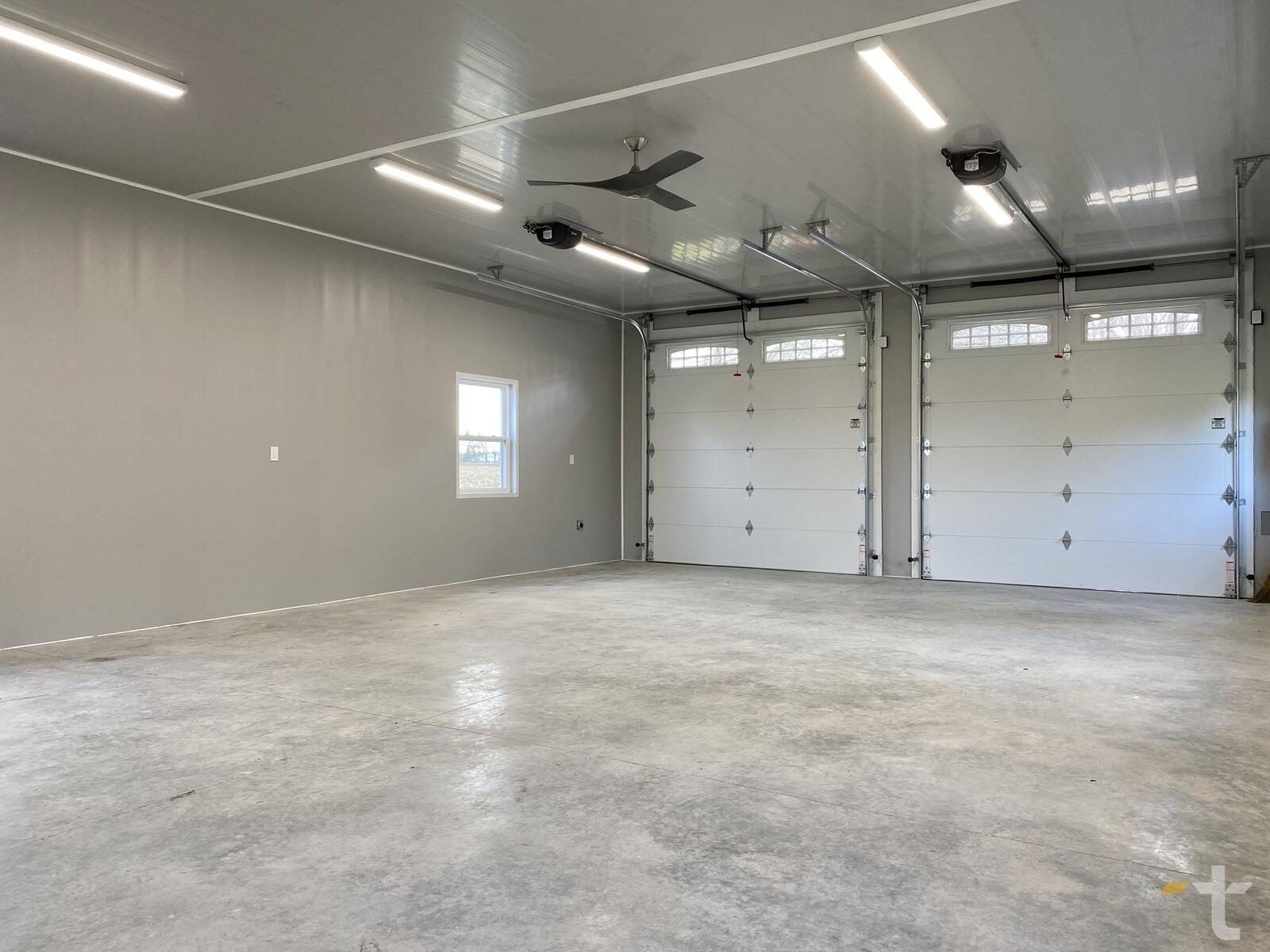

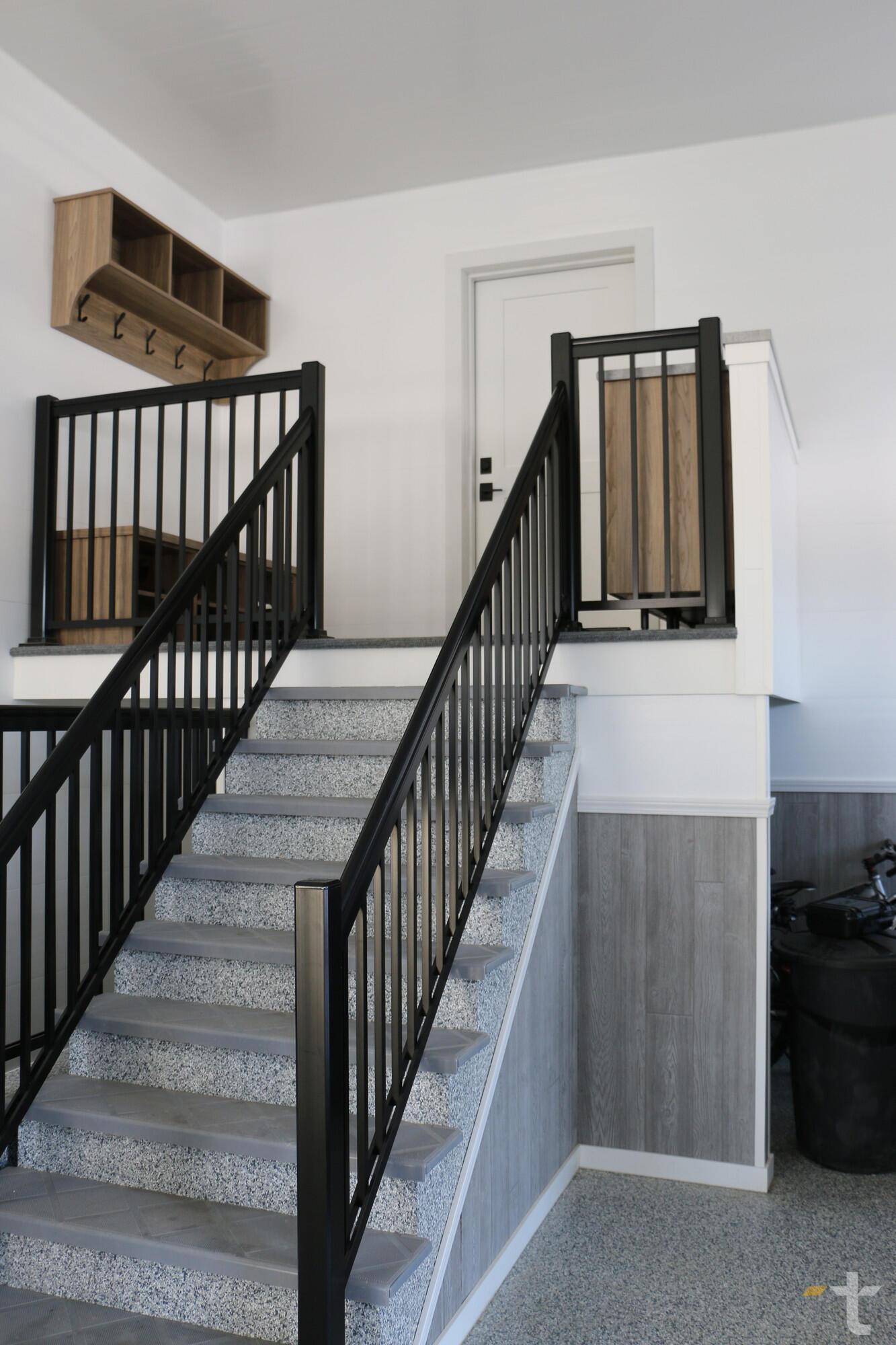

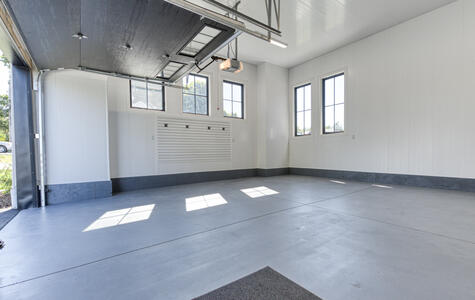

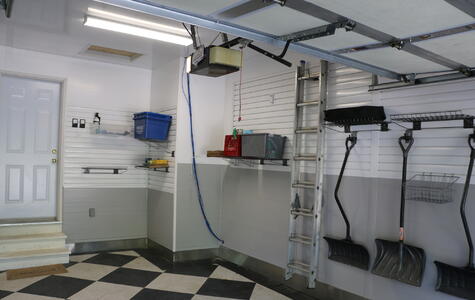

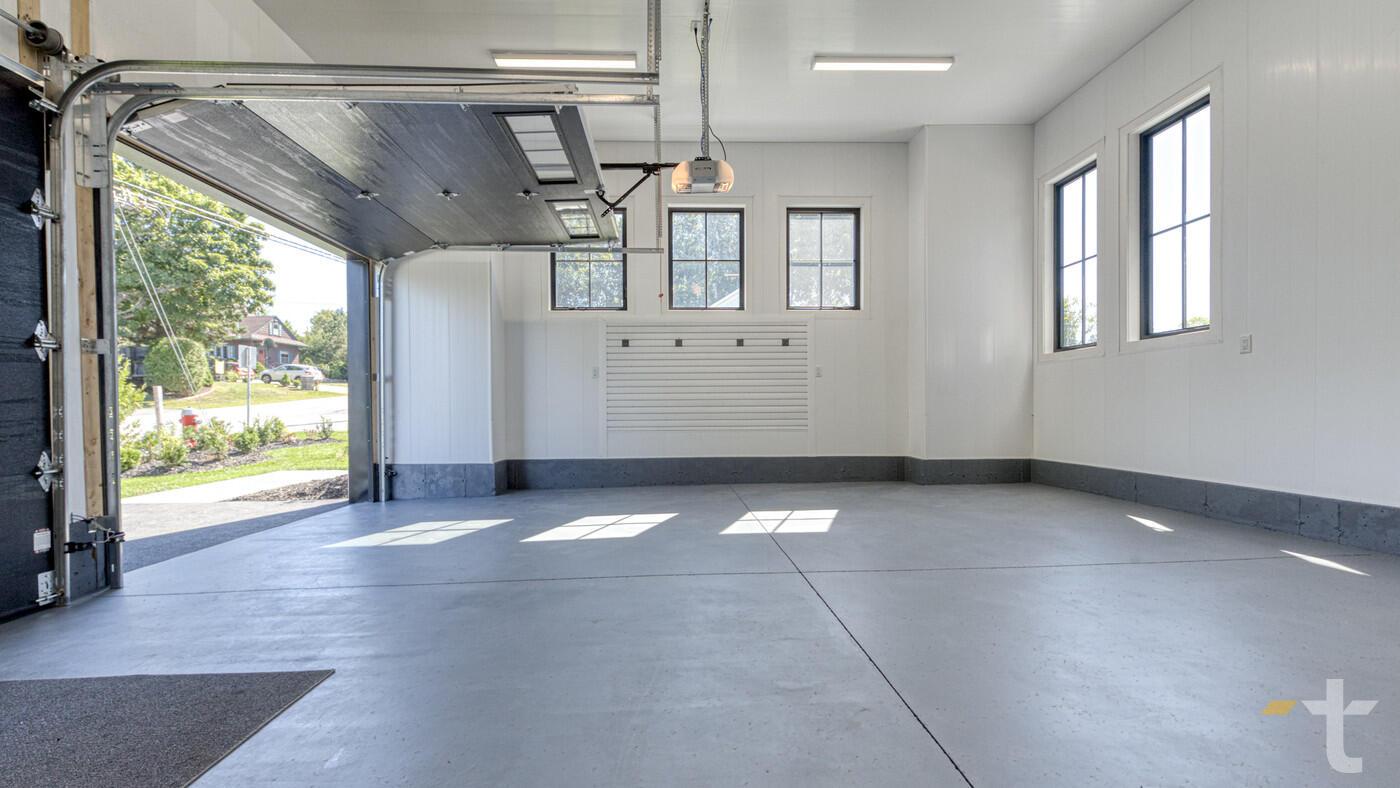

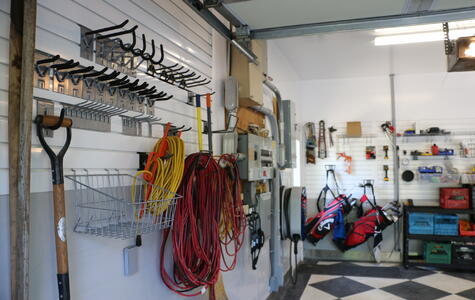

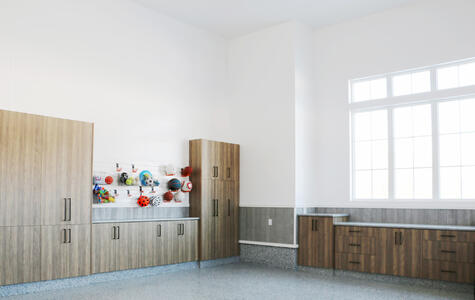

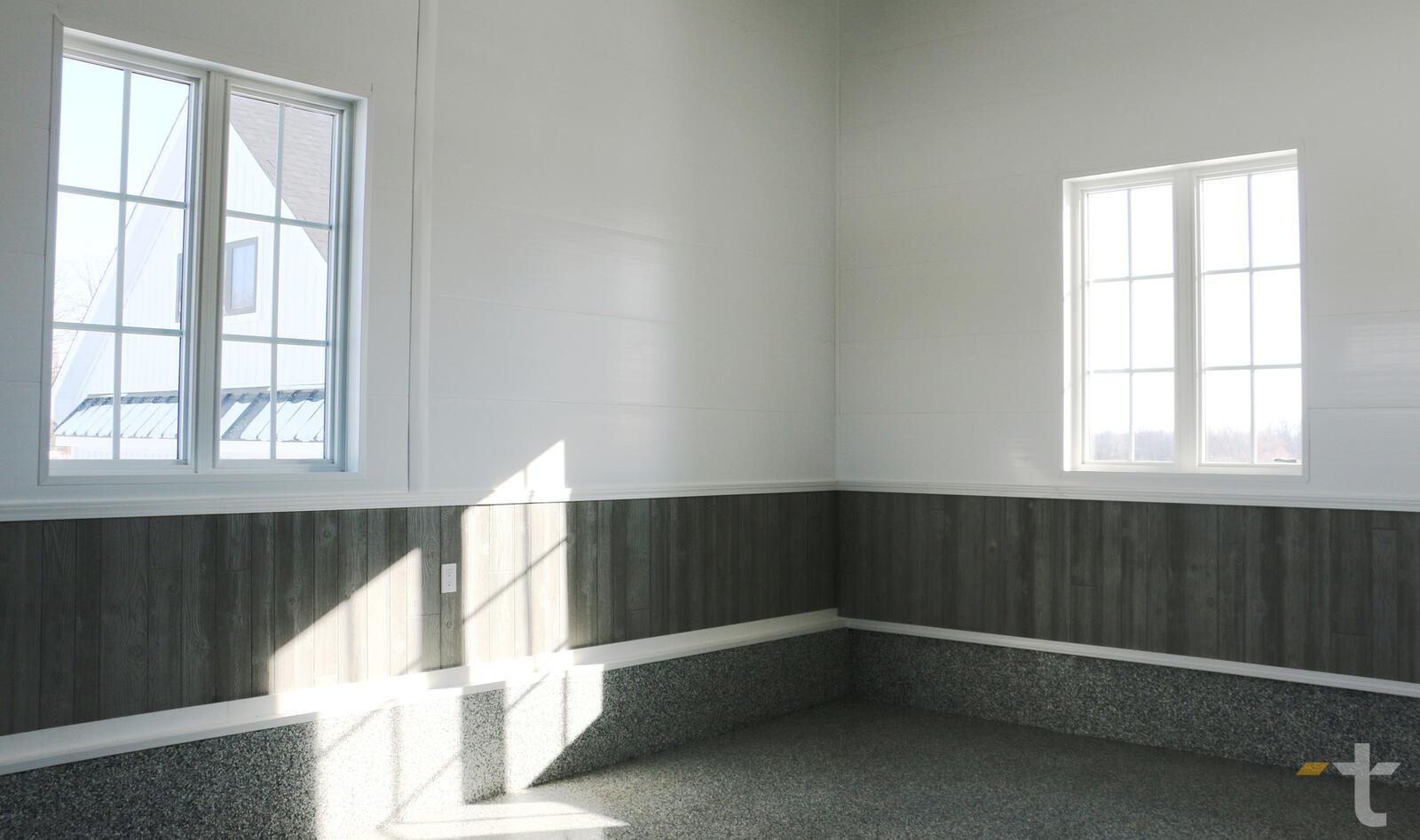

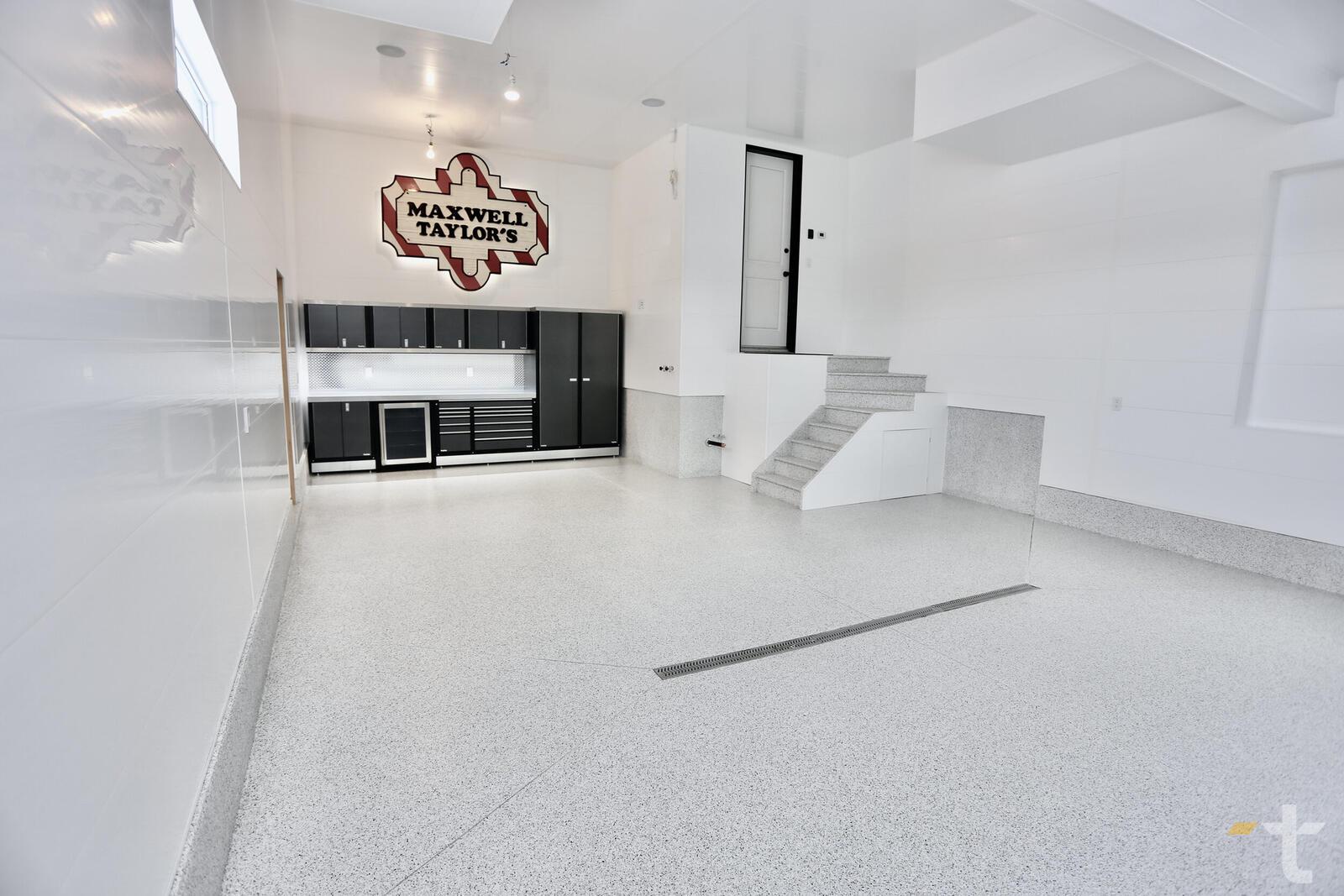

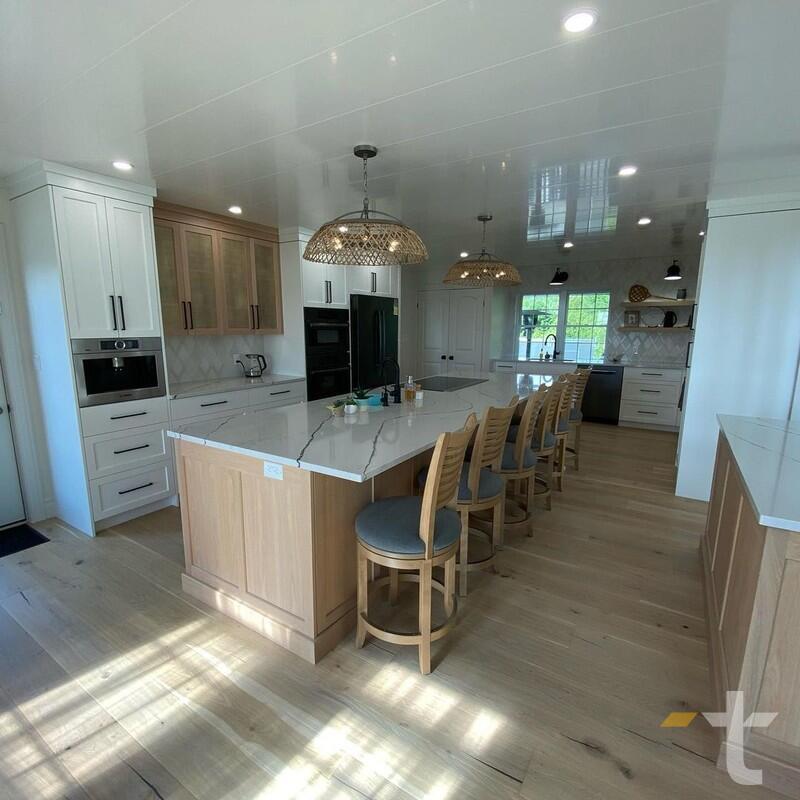

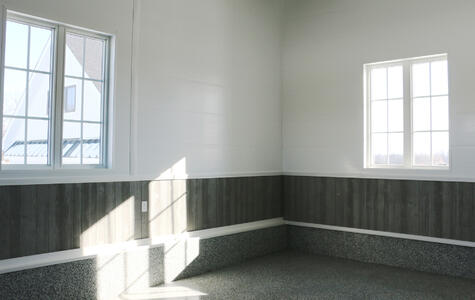

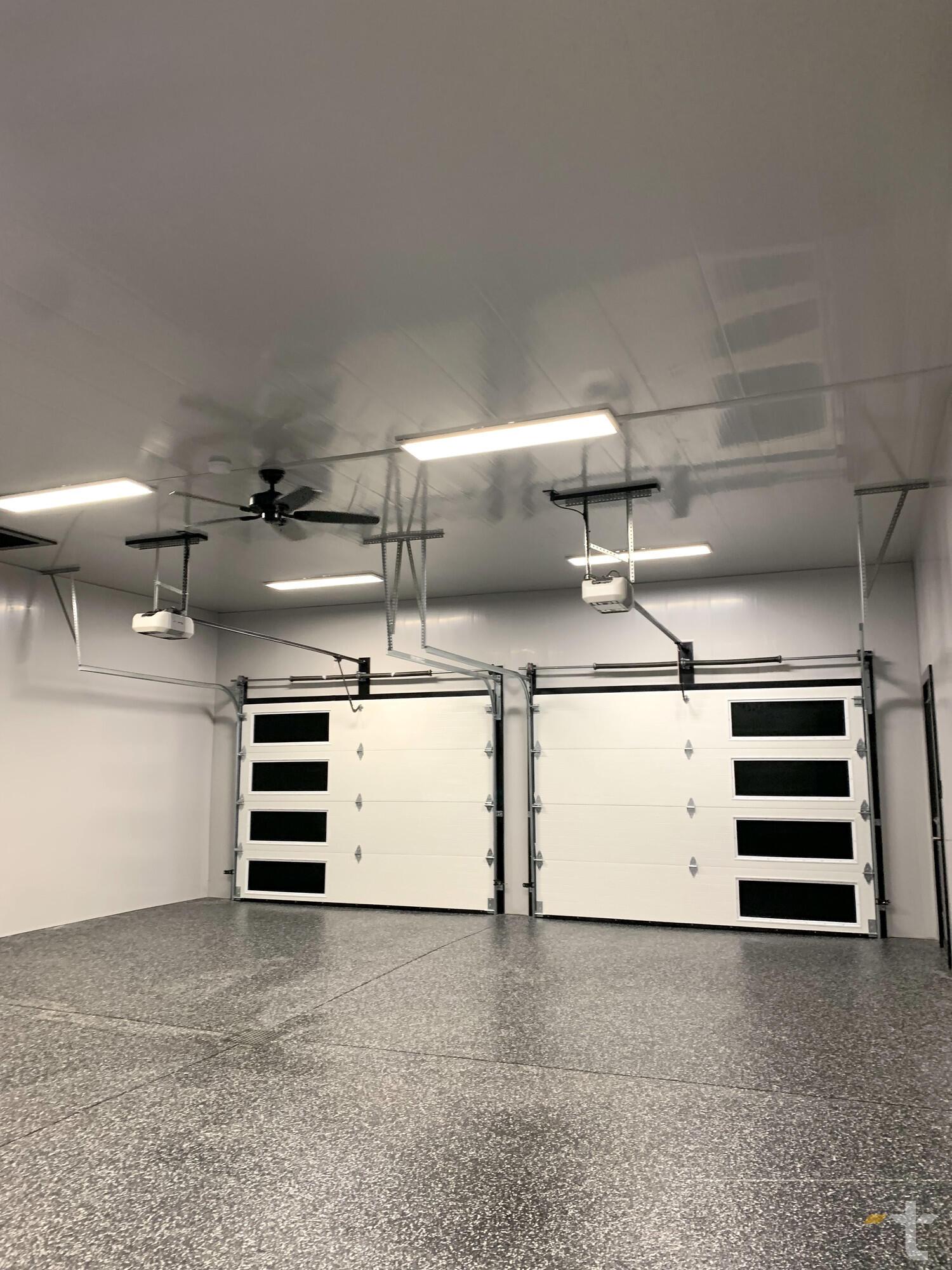

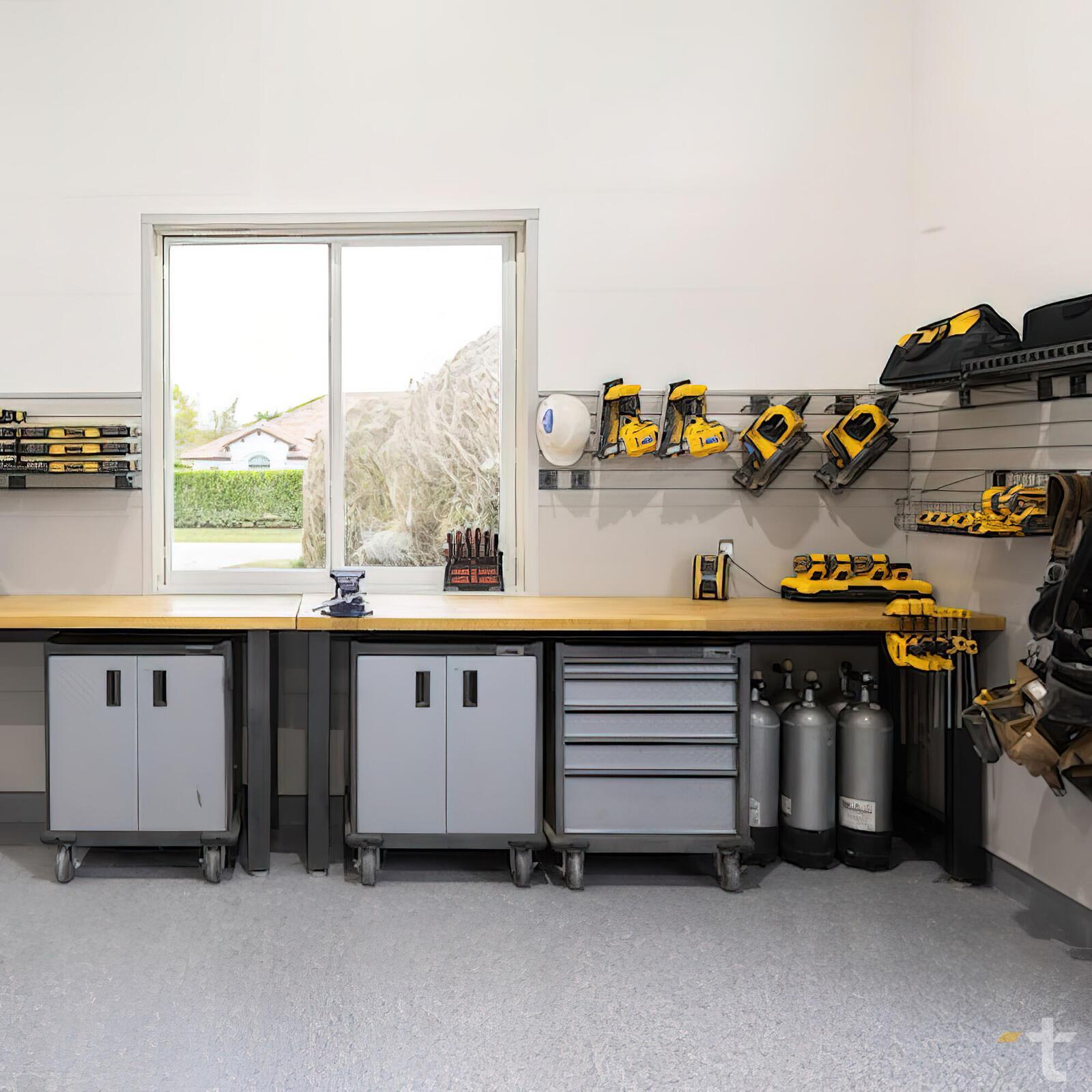

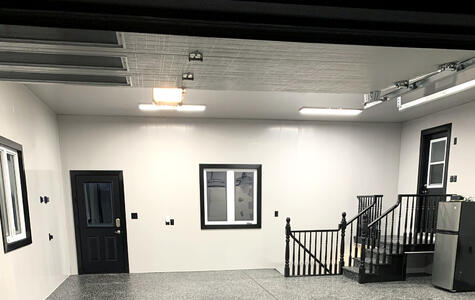

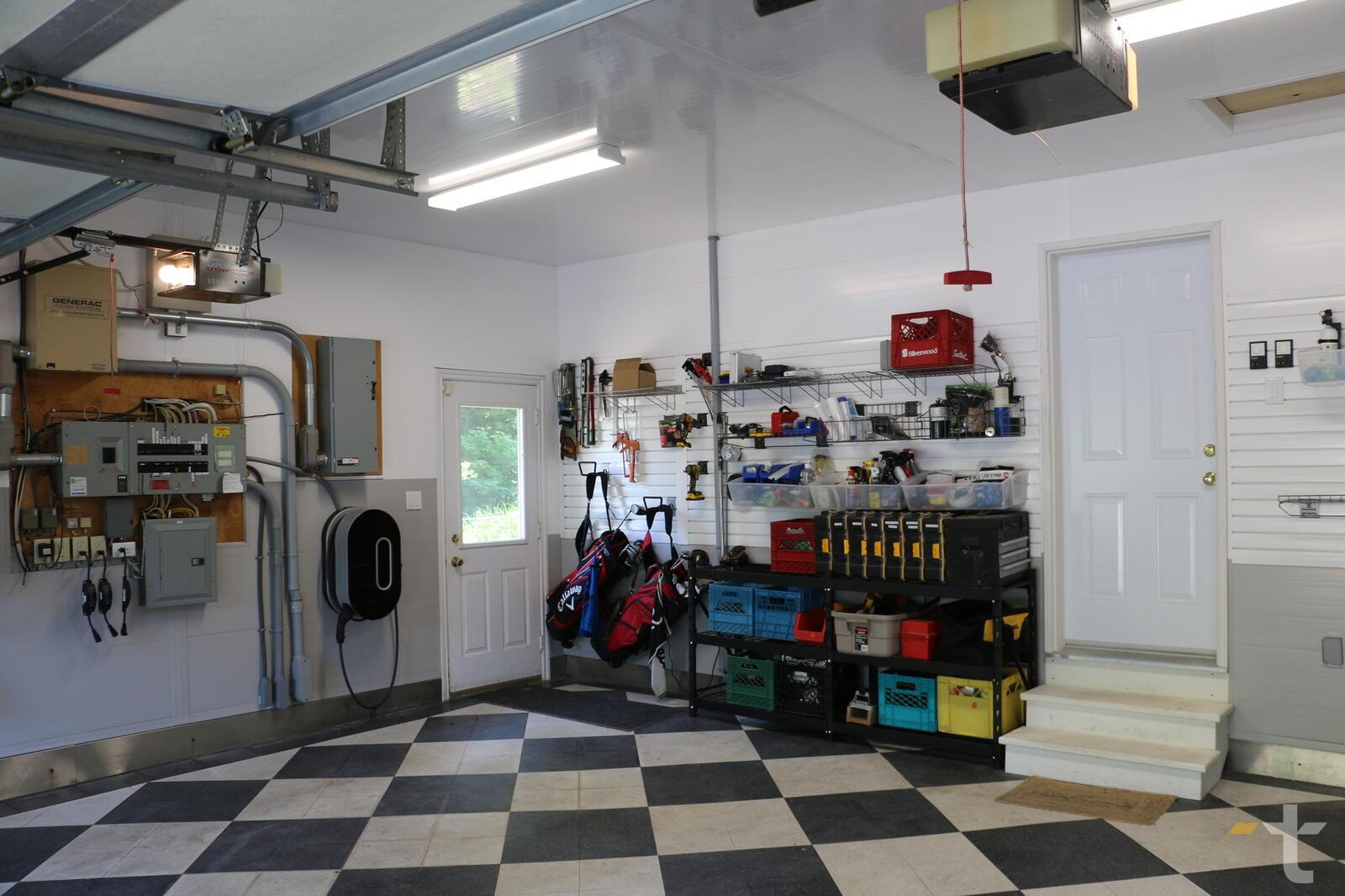

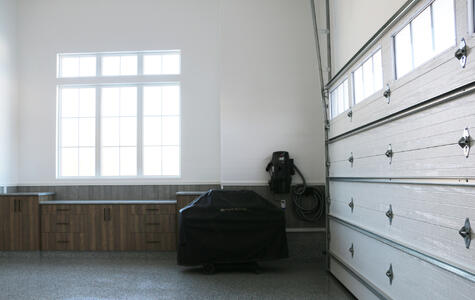

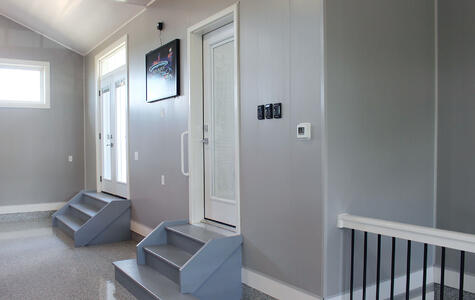

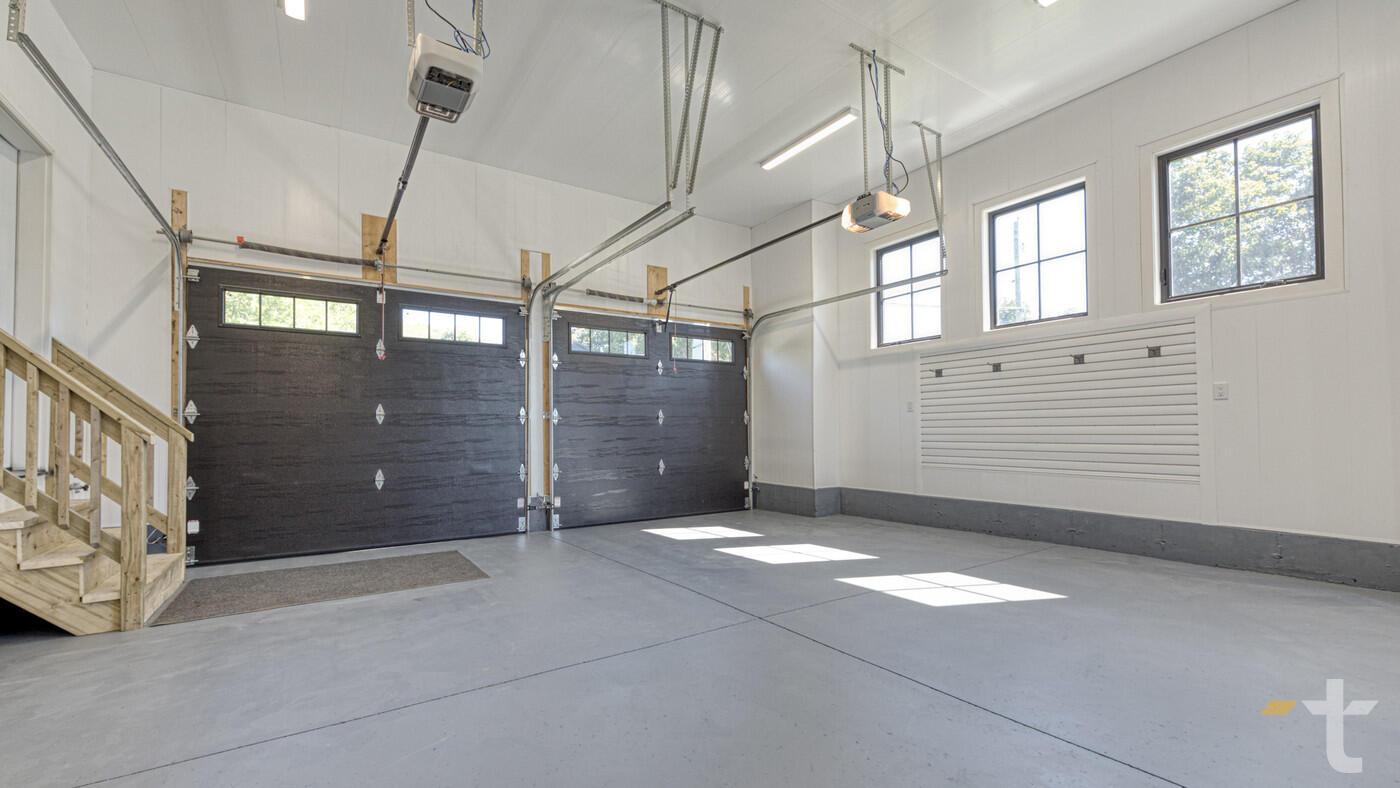

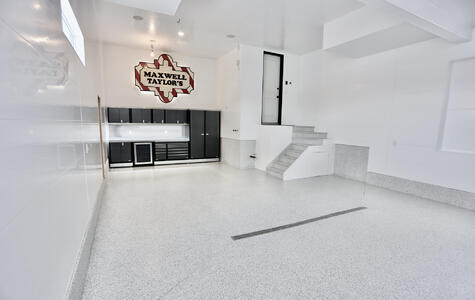

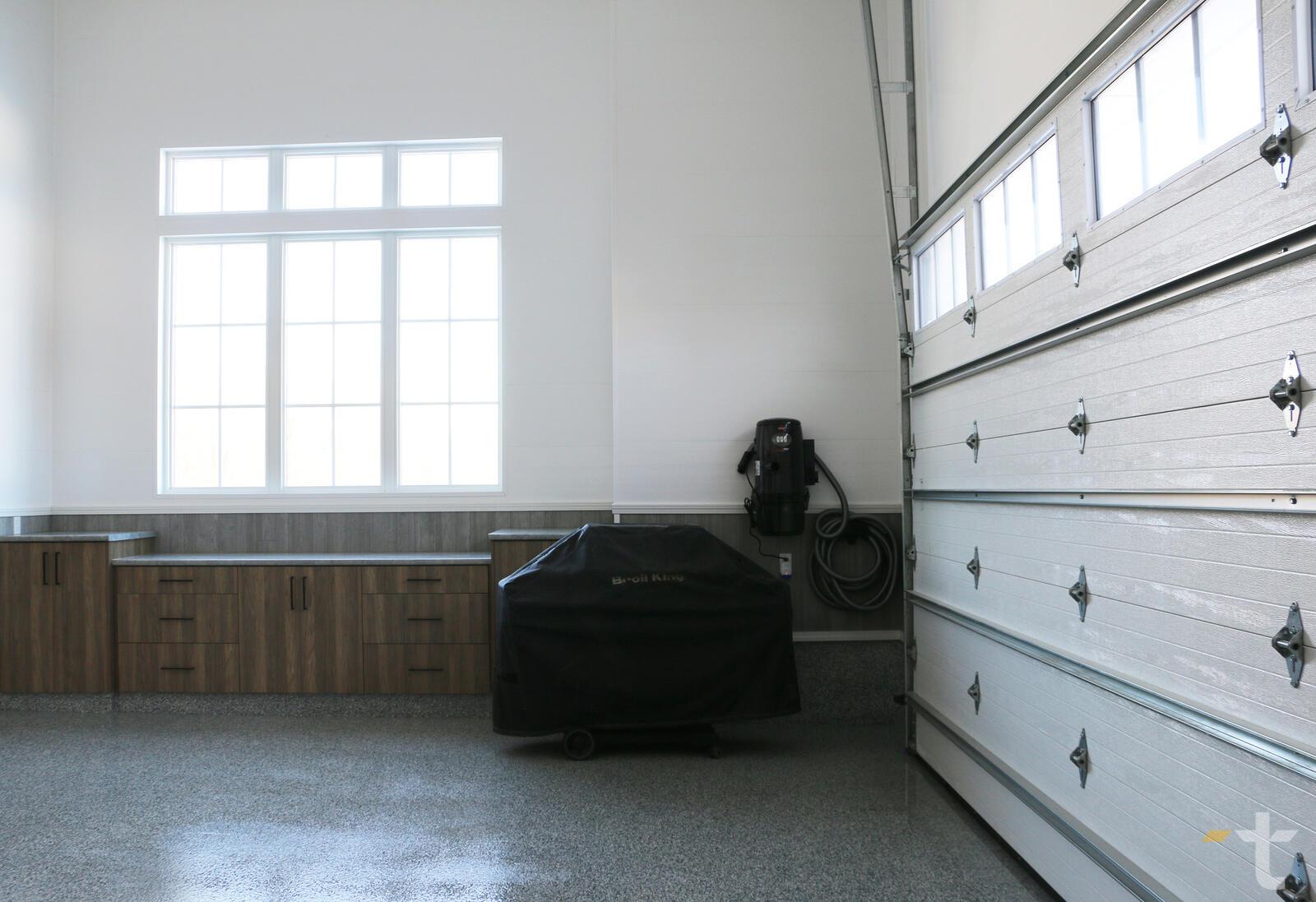

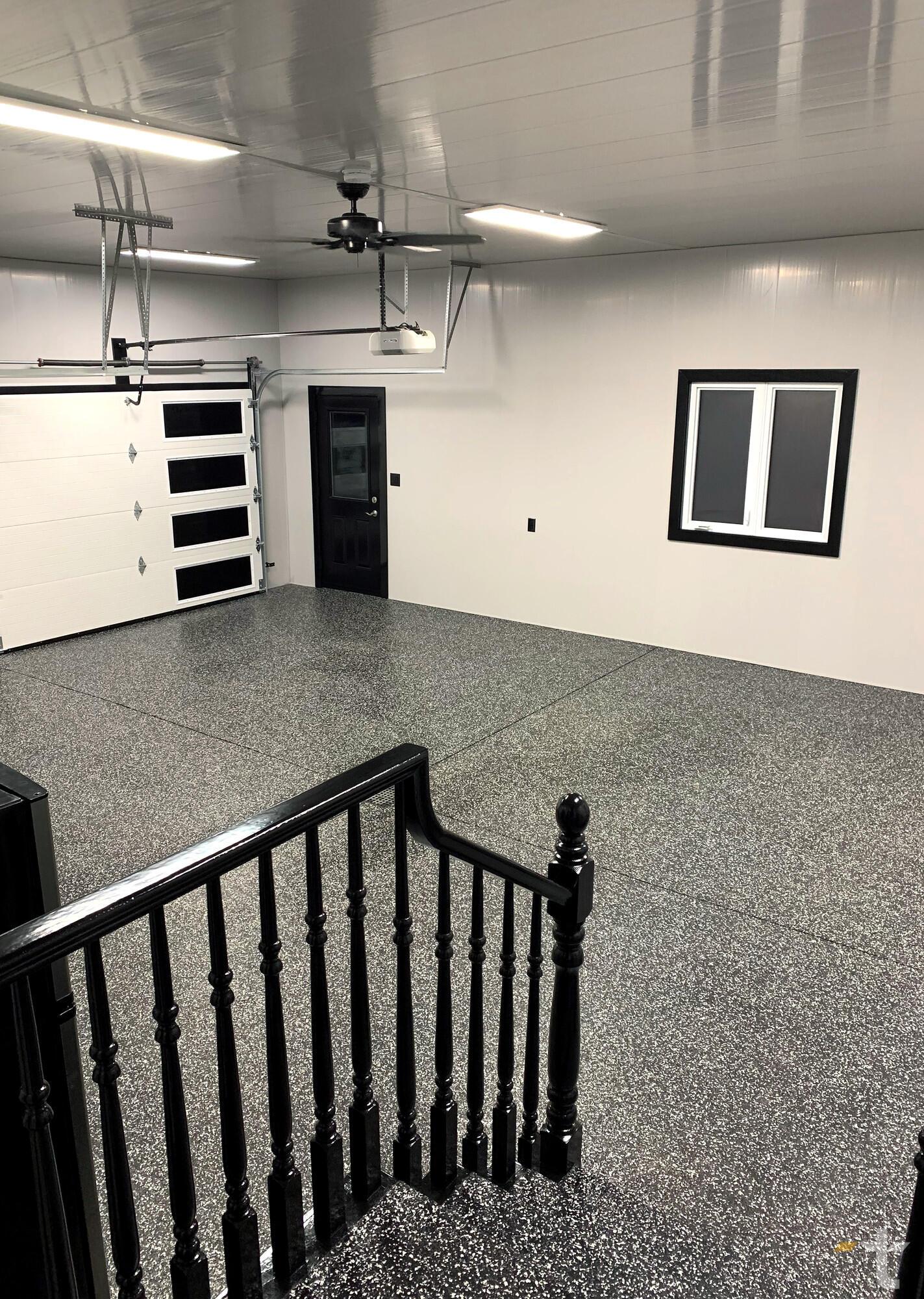

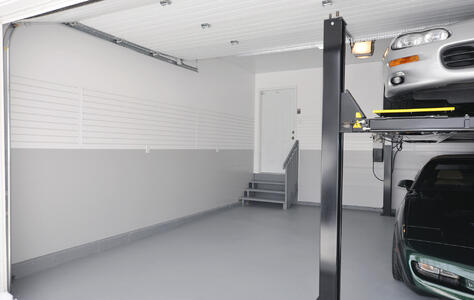

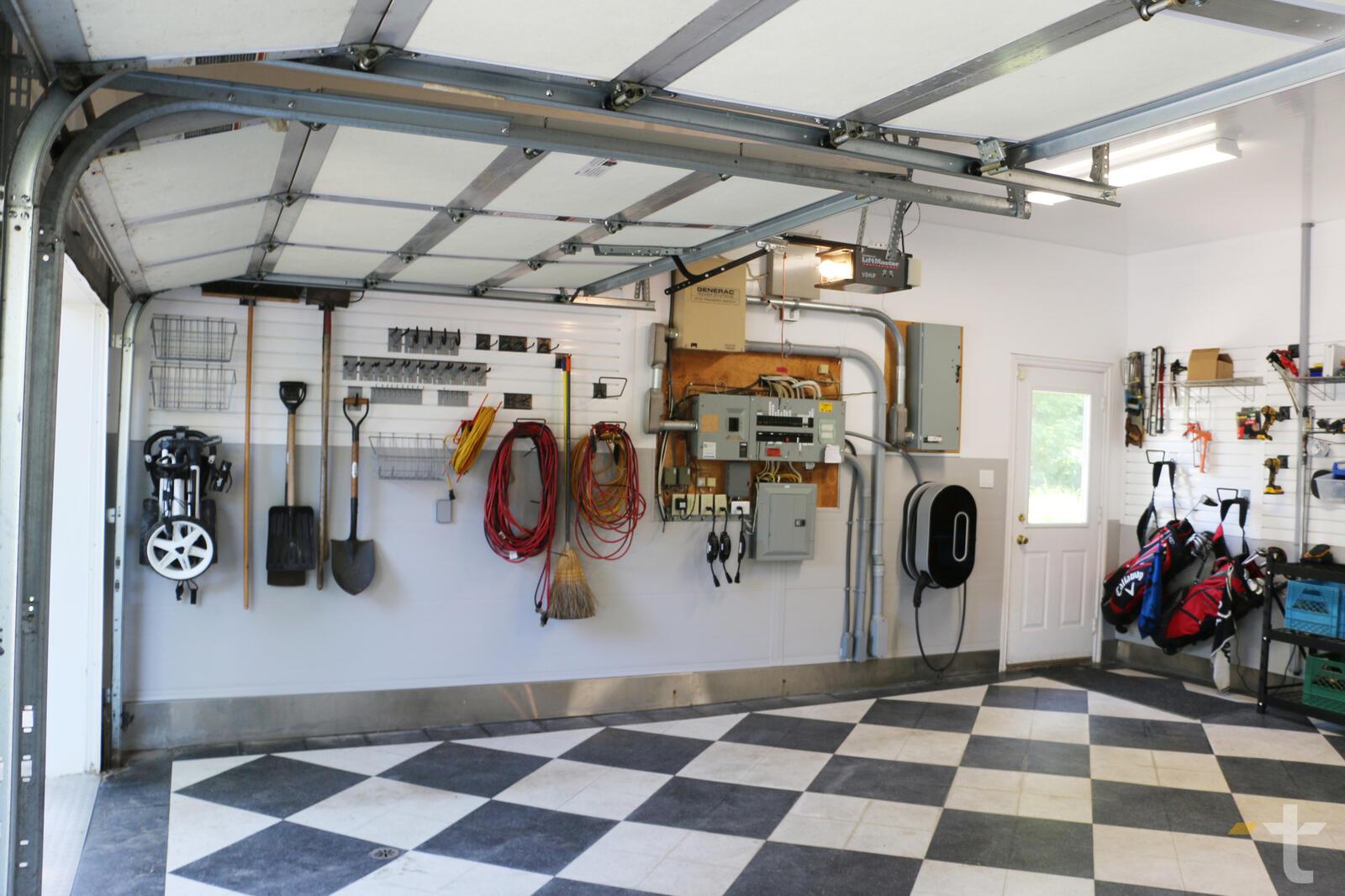

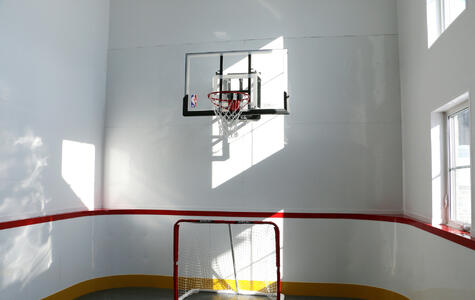

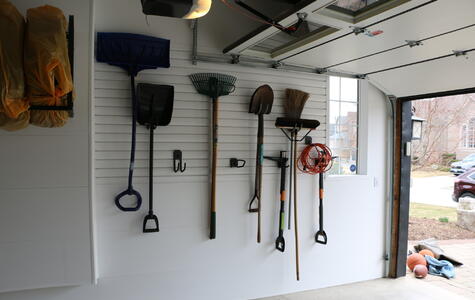

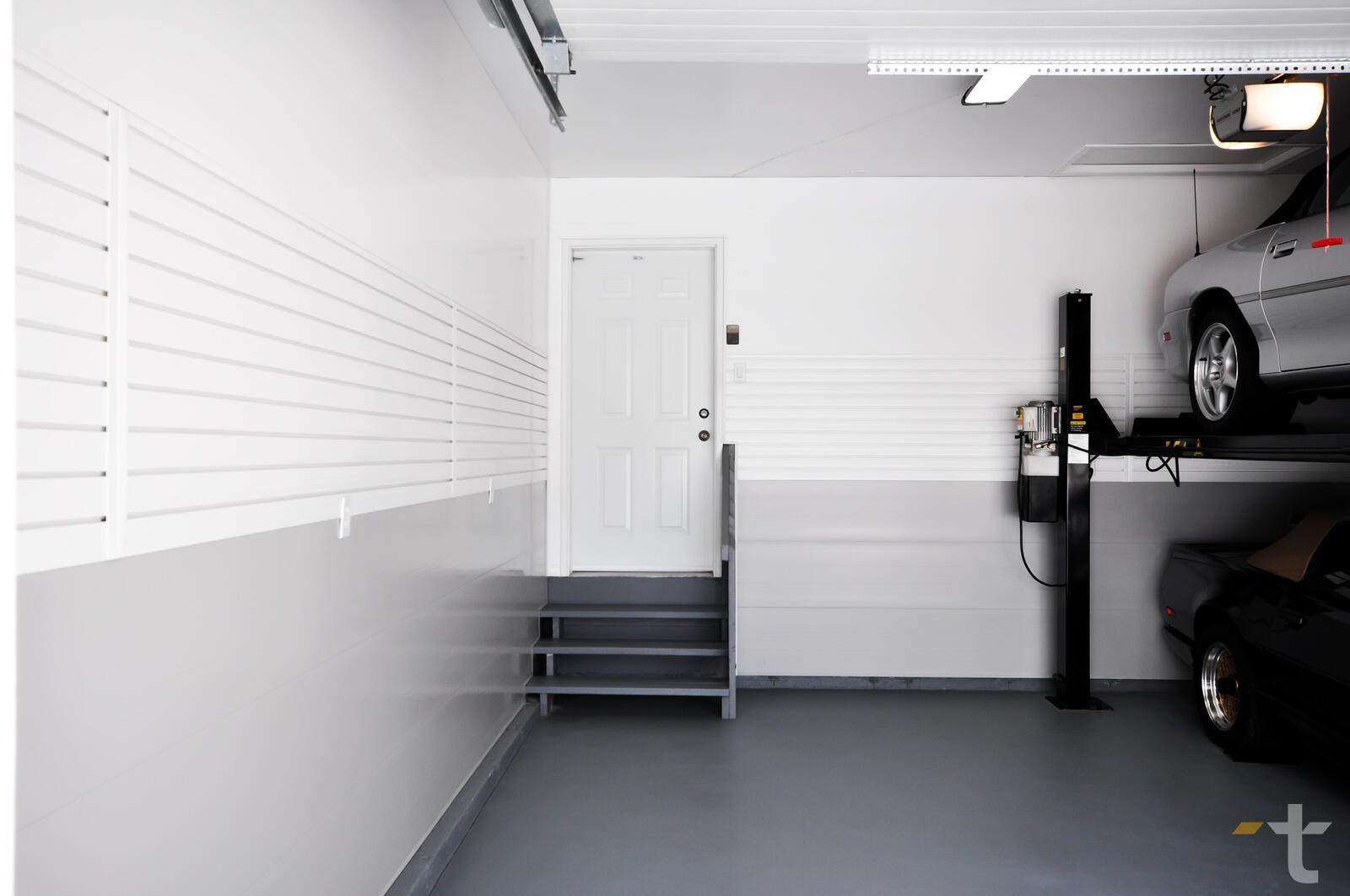

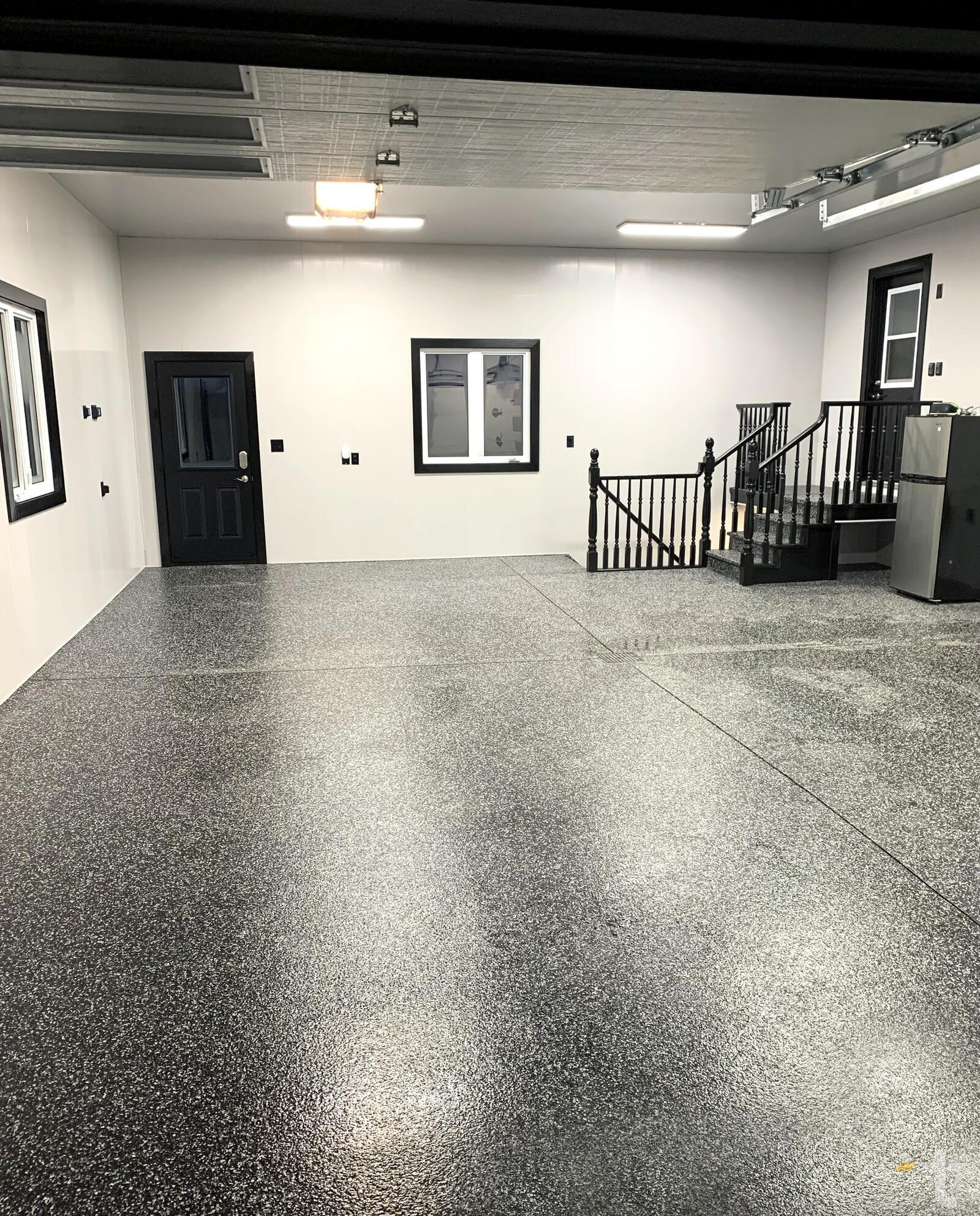

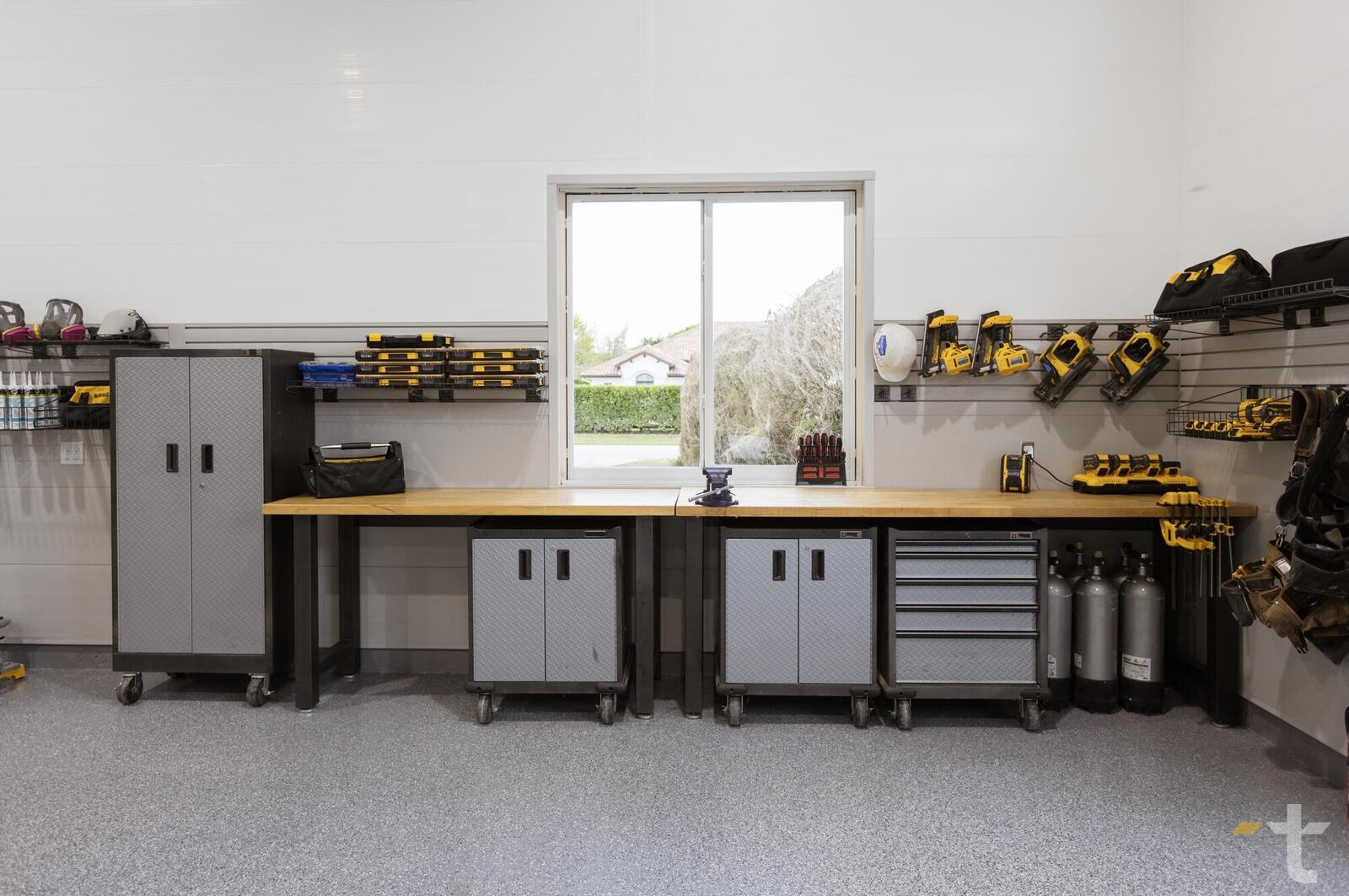

  • Garages
  • Home Organization

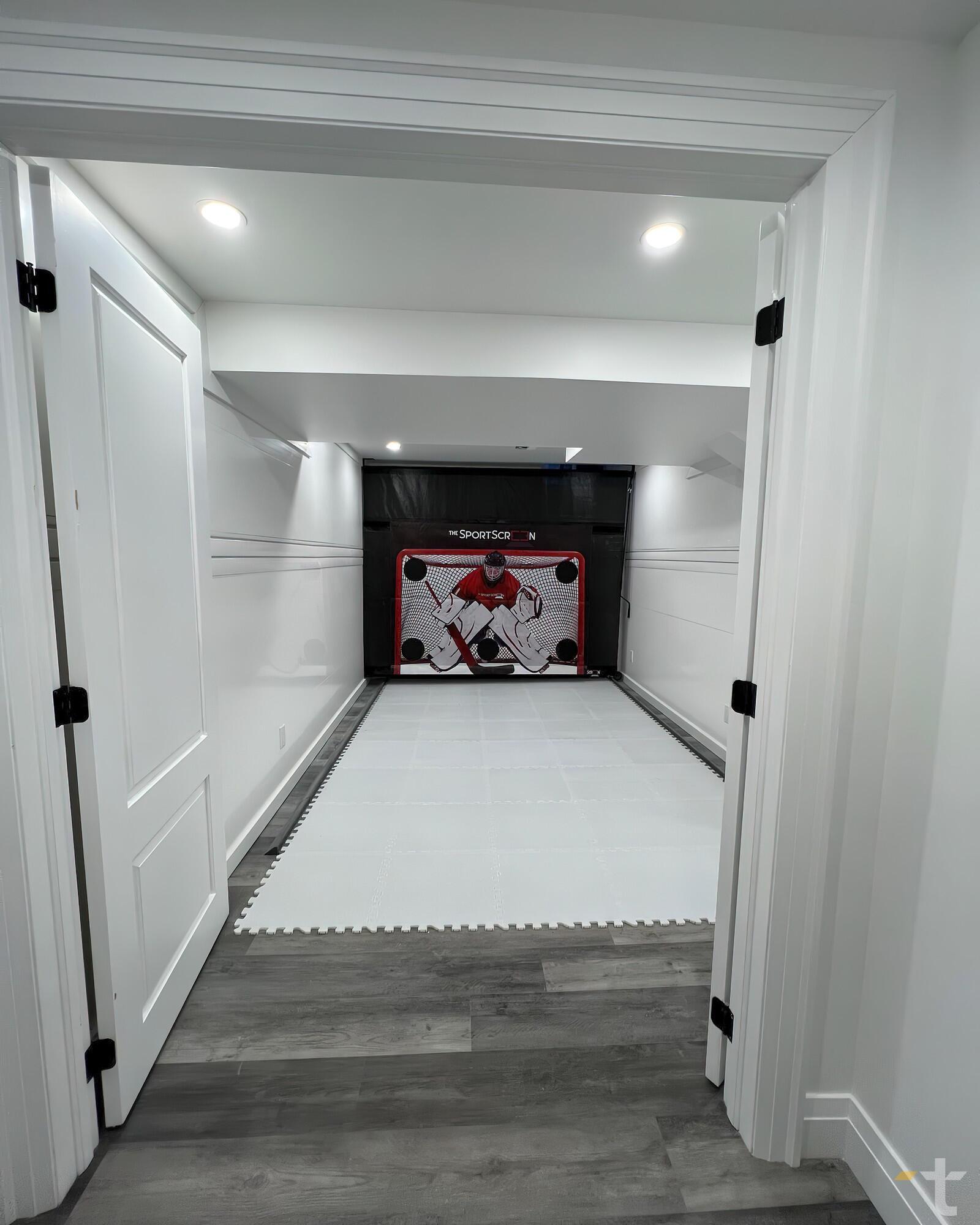

  • Basements
  • Laundry Rooms
  • Docks & Boathouses

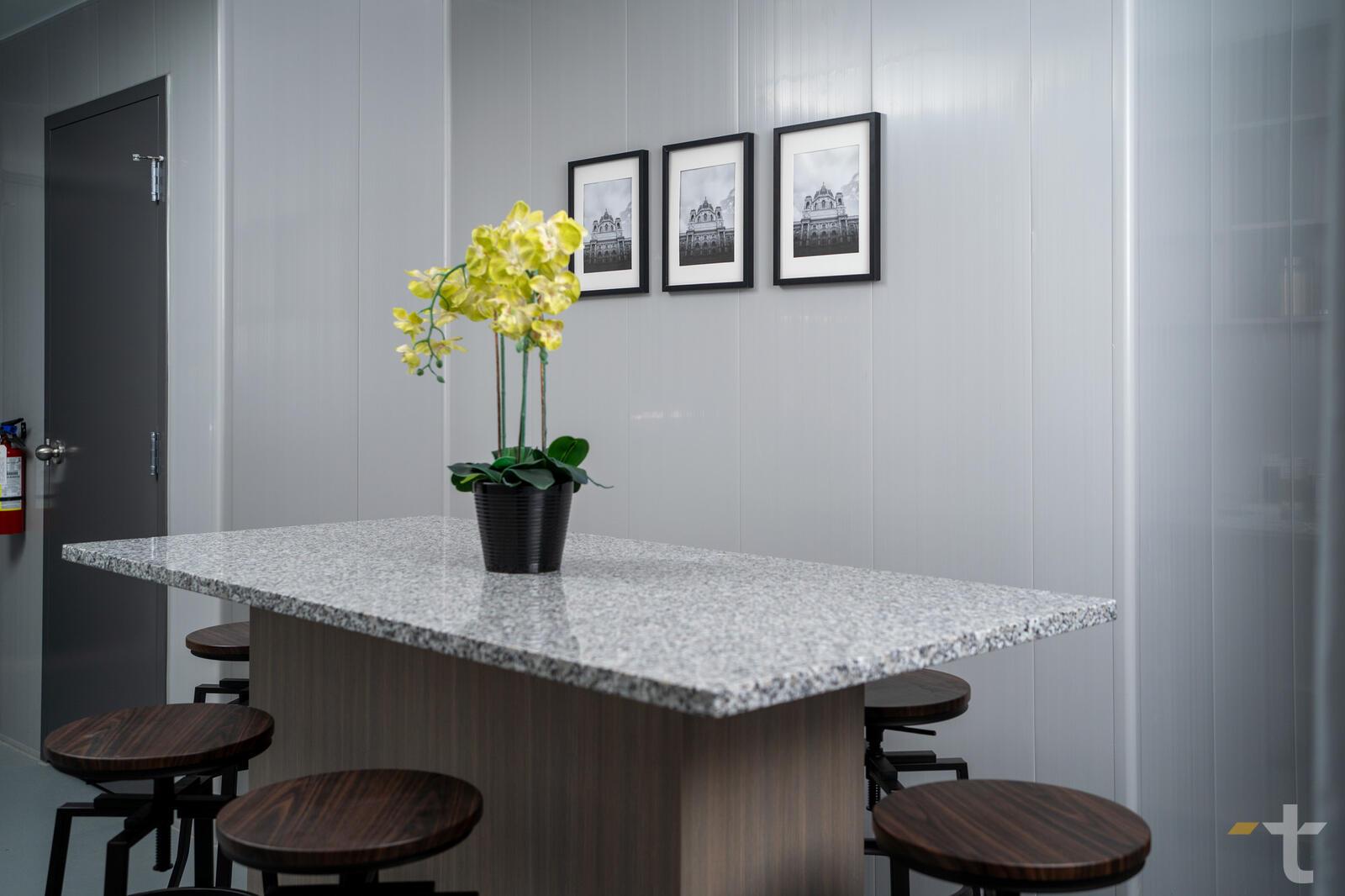

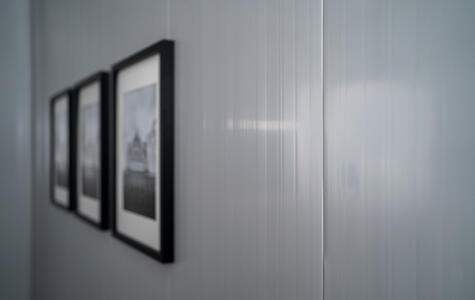

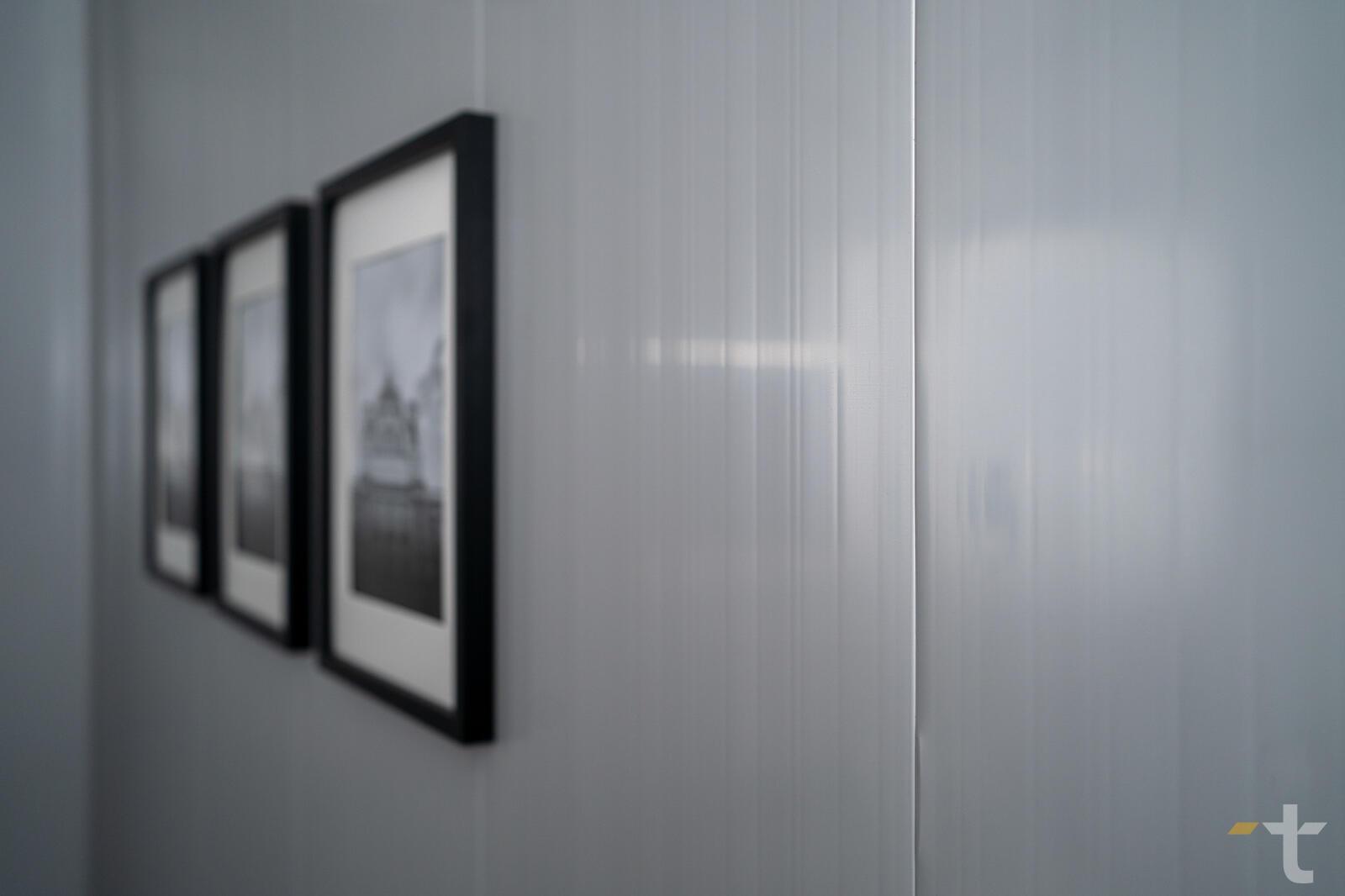

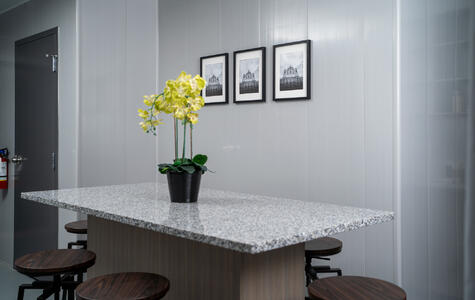

  • Multi-Residential Facilities

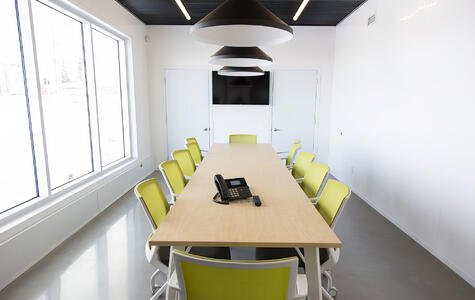

High-performance wall and ceiling solutions for commercial applications

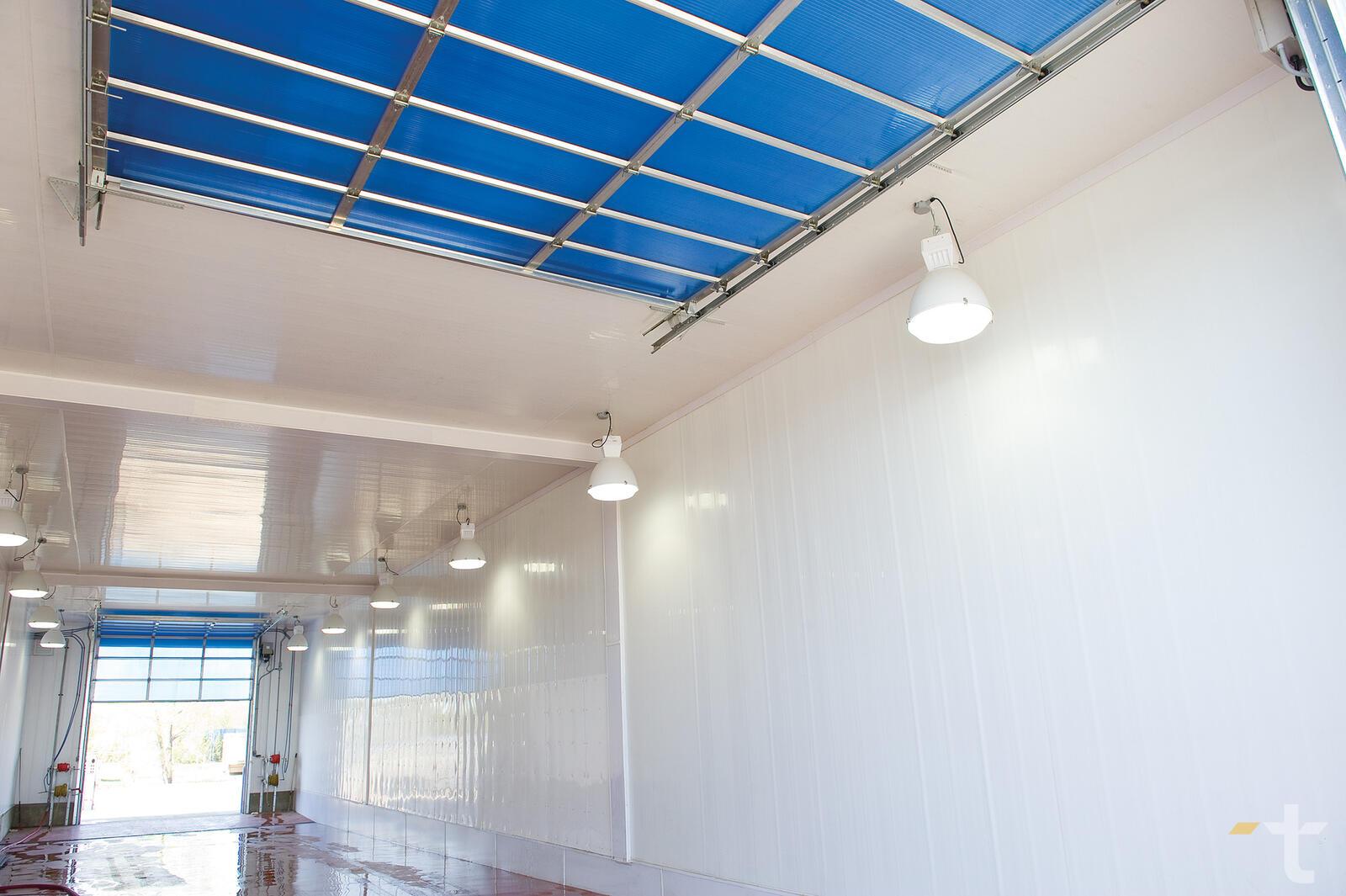

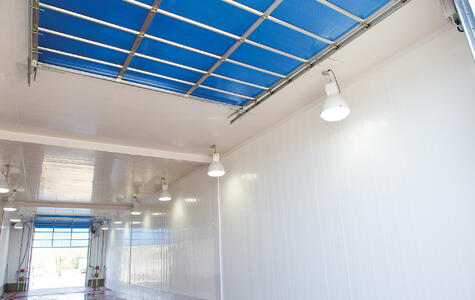

  • Car & Truck Washes

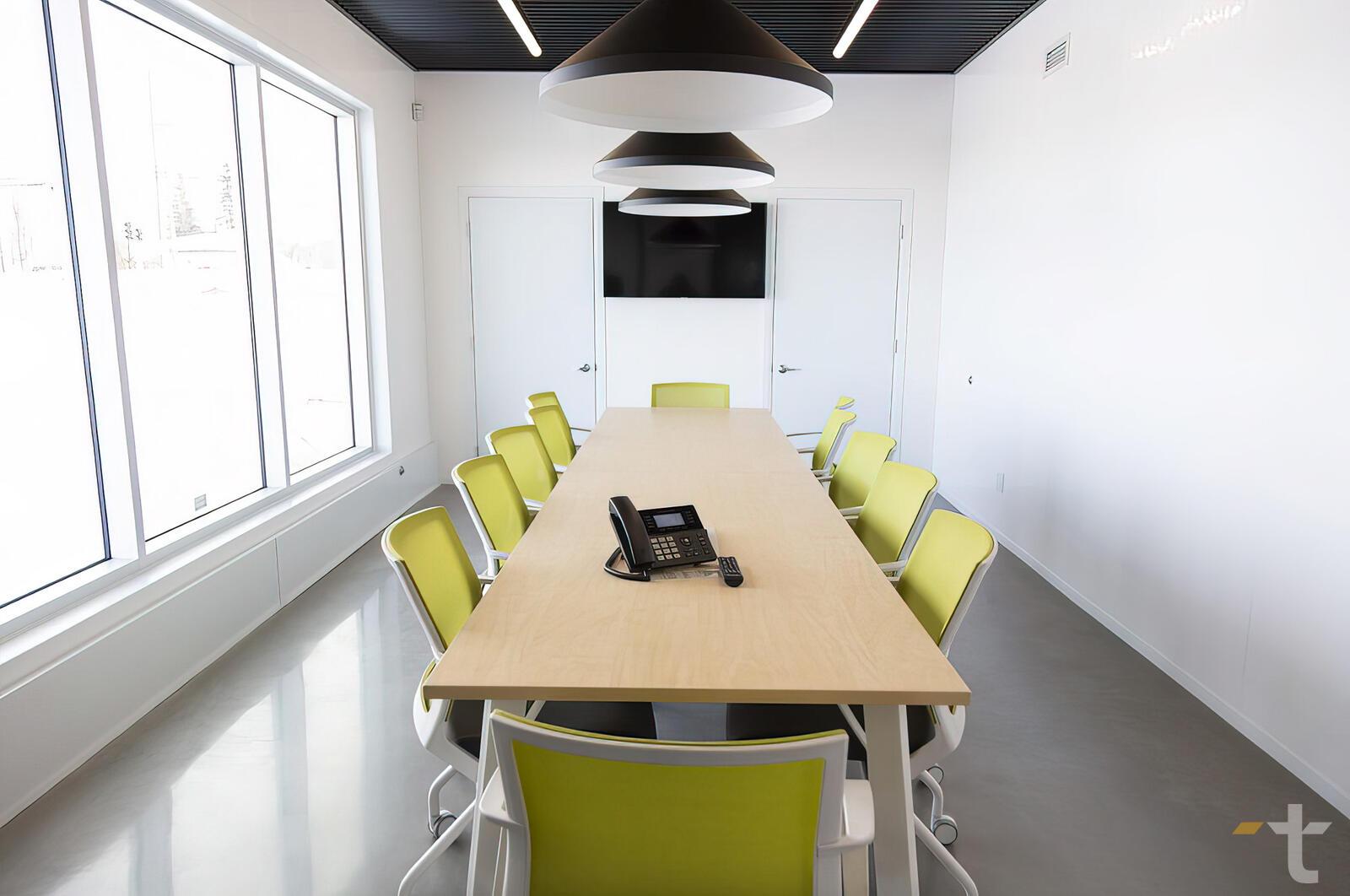

  • Retail & Office Spaces

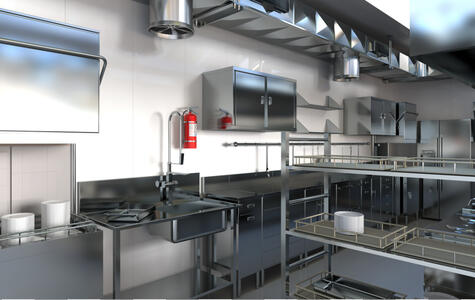

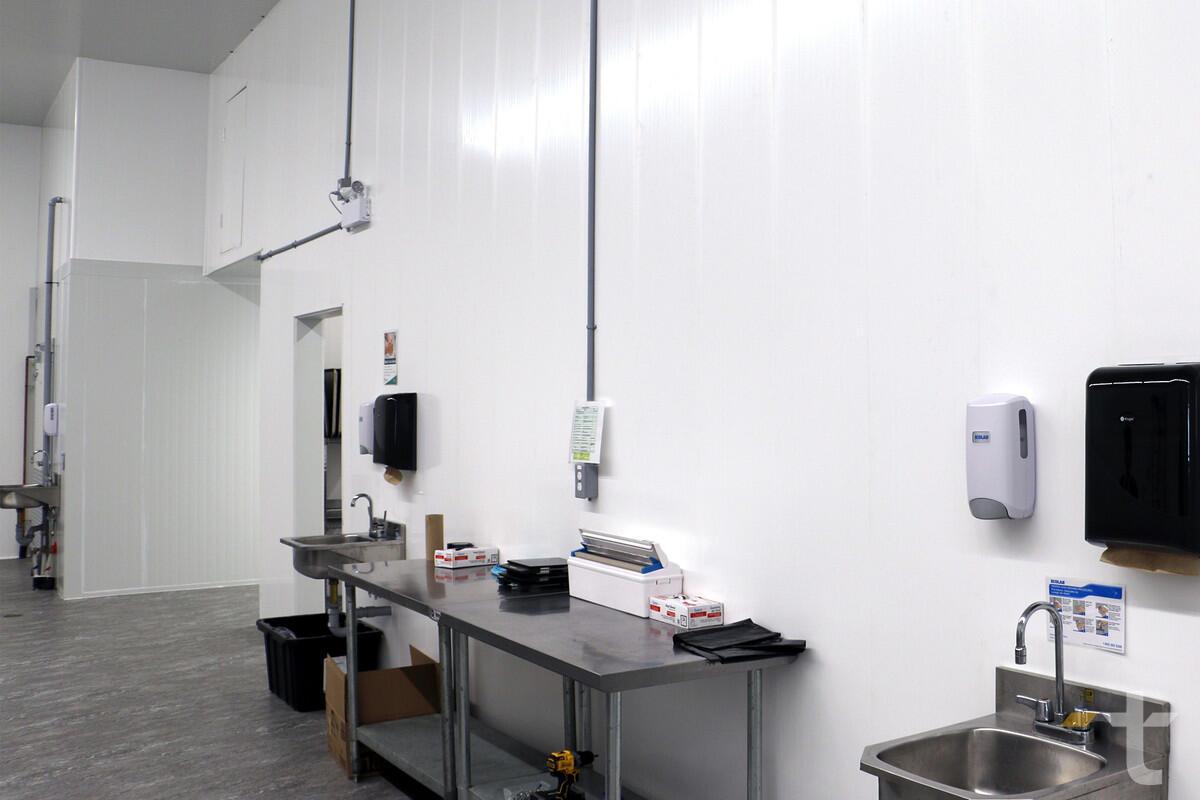

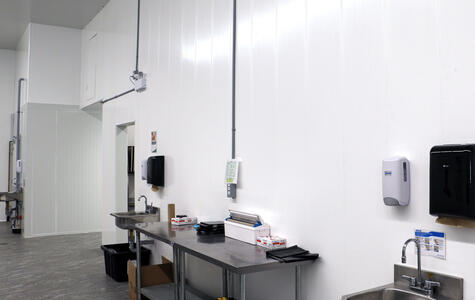

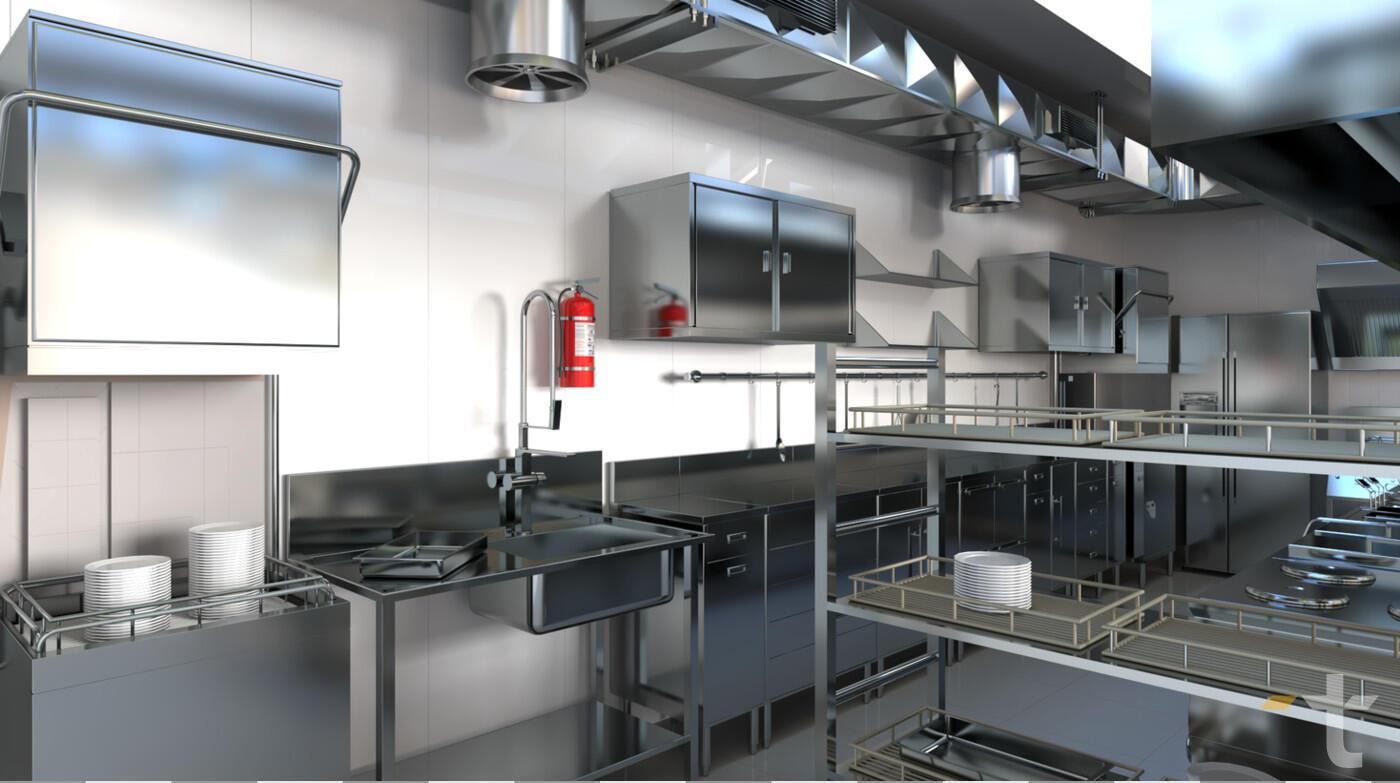

  • Commercial Kitchens
  • Healthcare Facilities
  • Food Processing Facilities

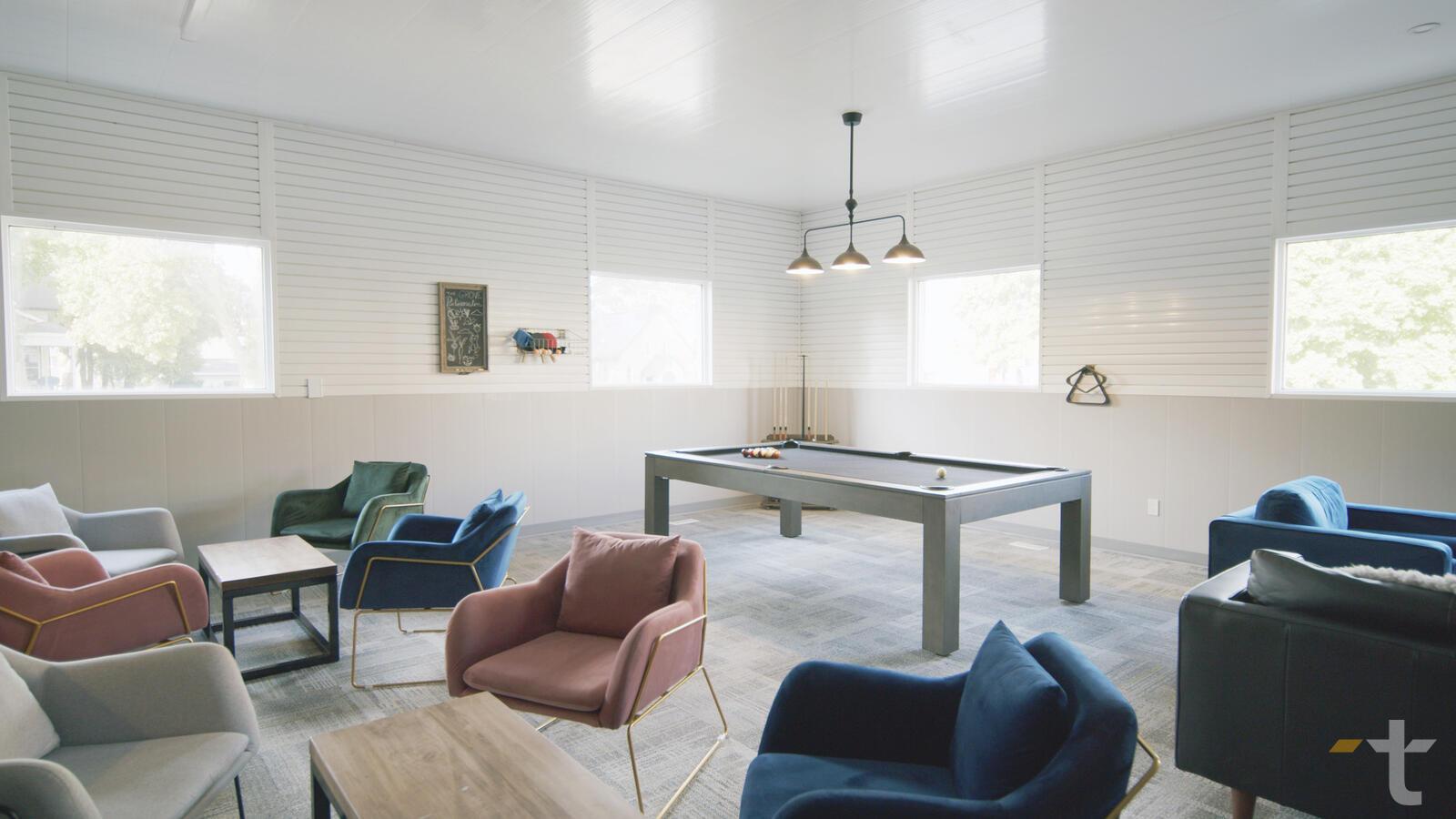

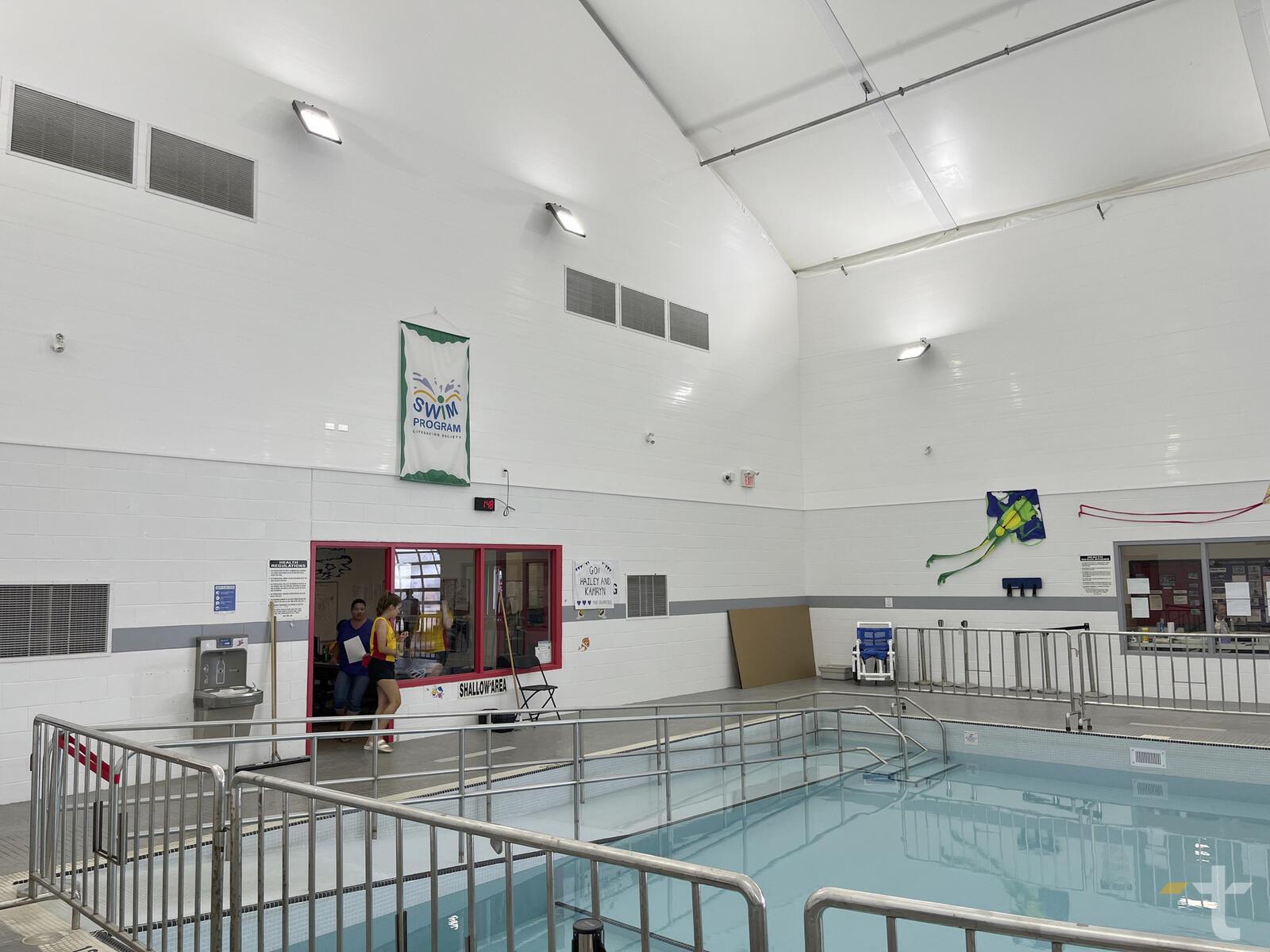

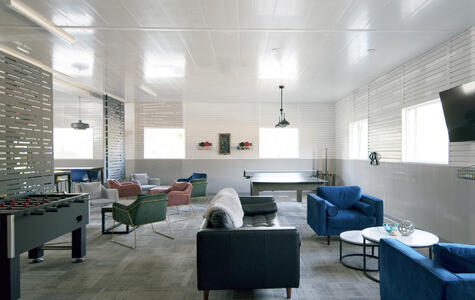

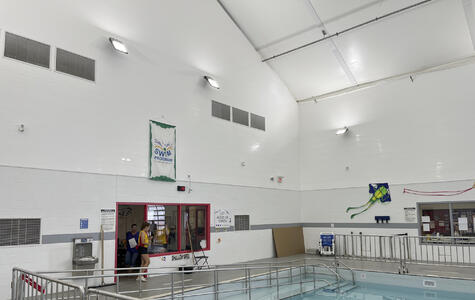

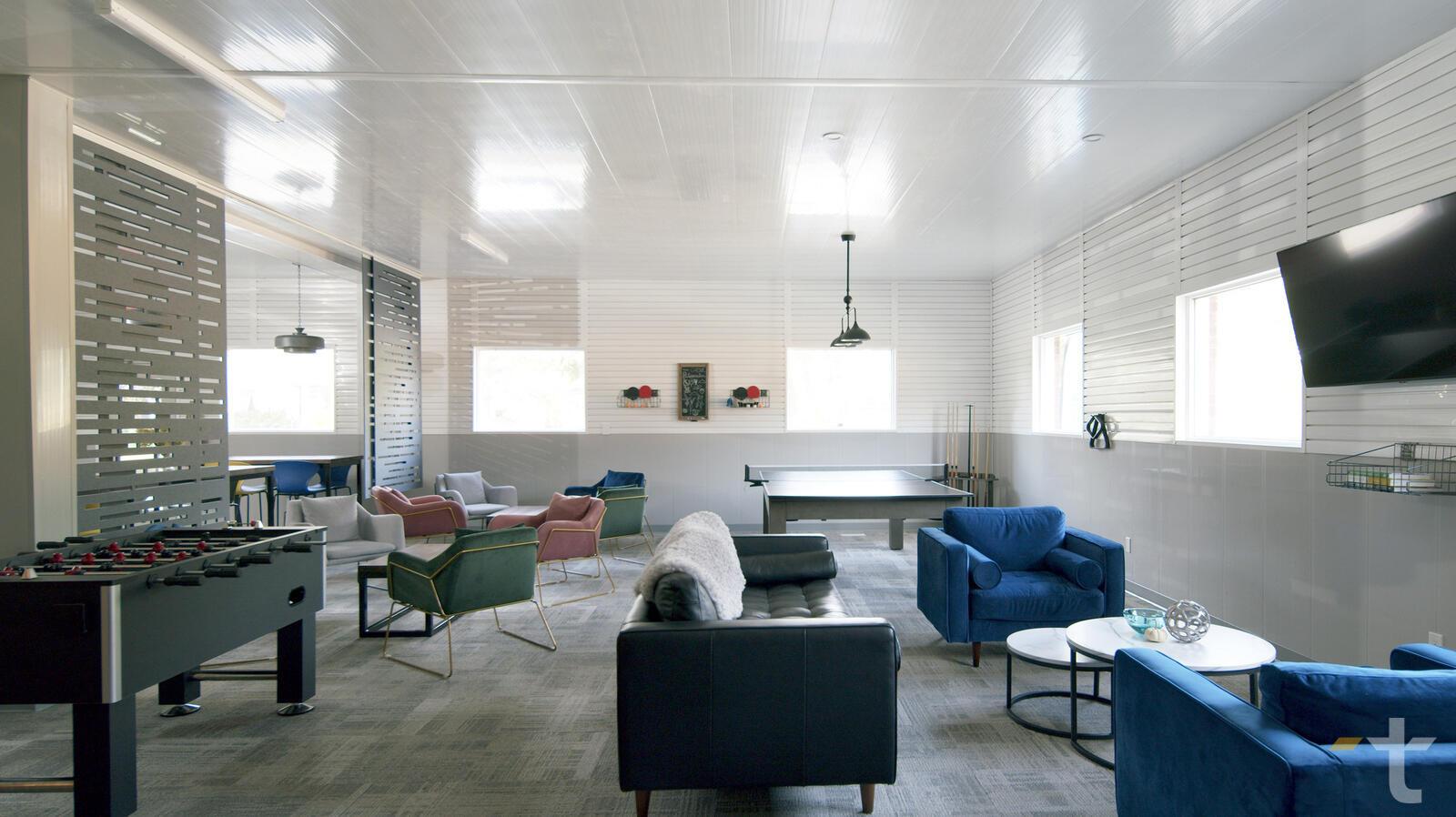

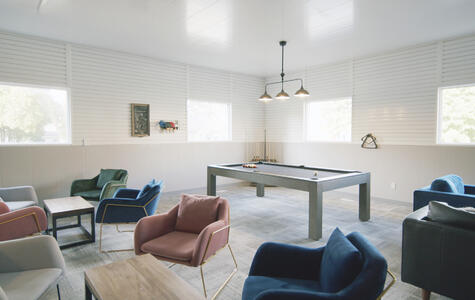

  • Recreational Facilities

High-performance wall, ceiling and penning solutions for agriculture applications

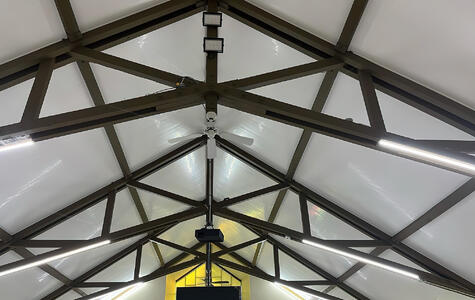

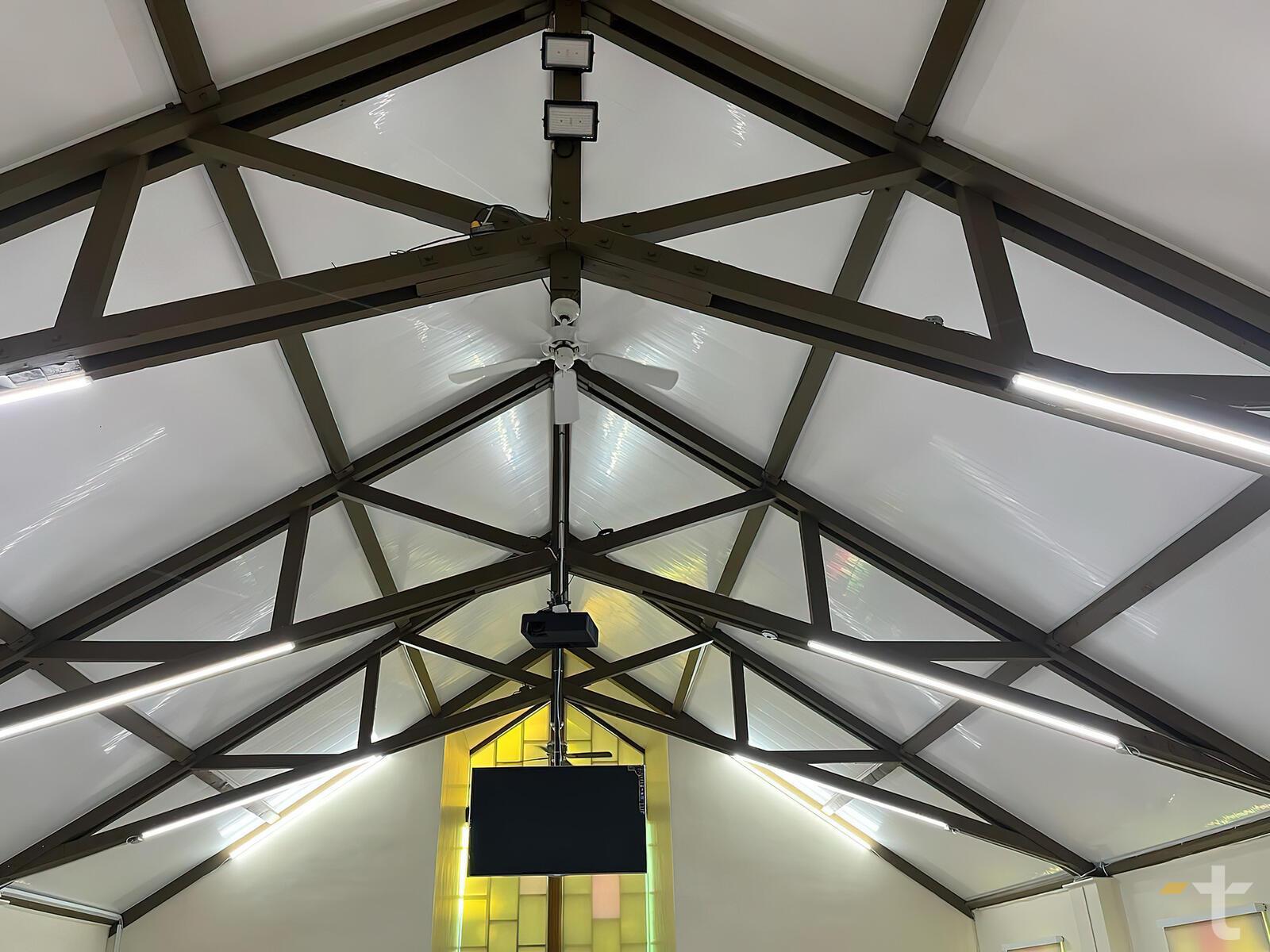

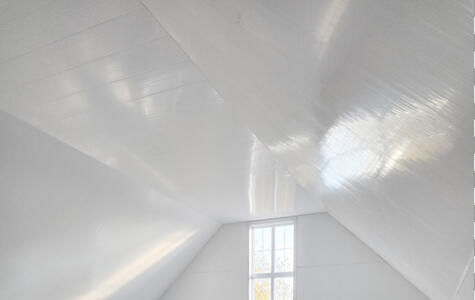

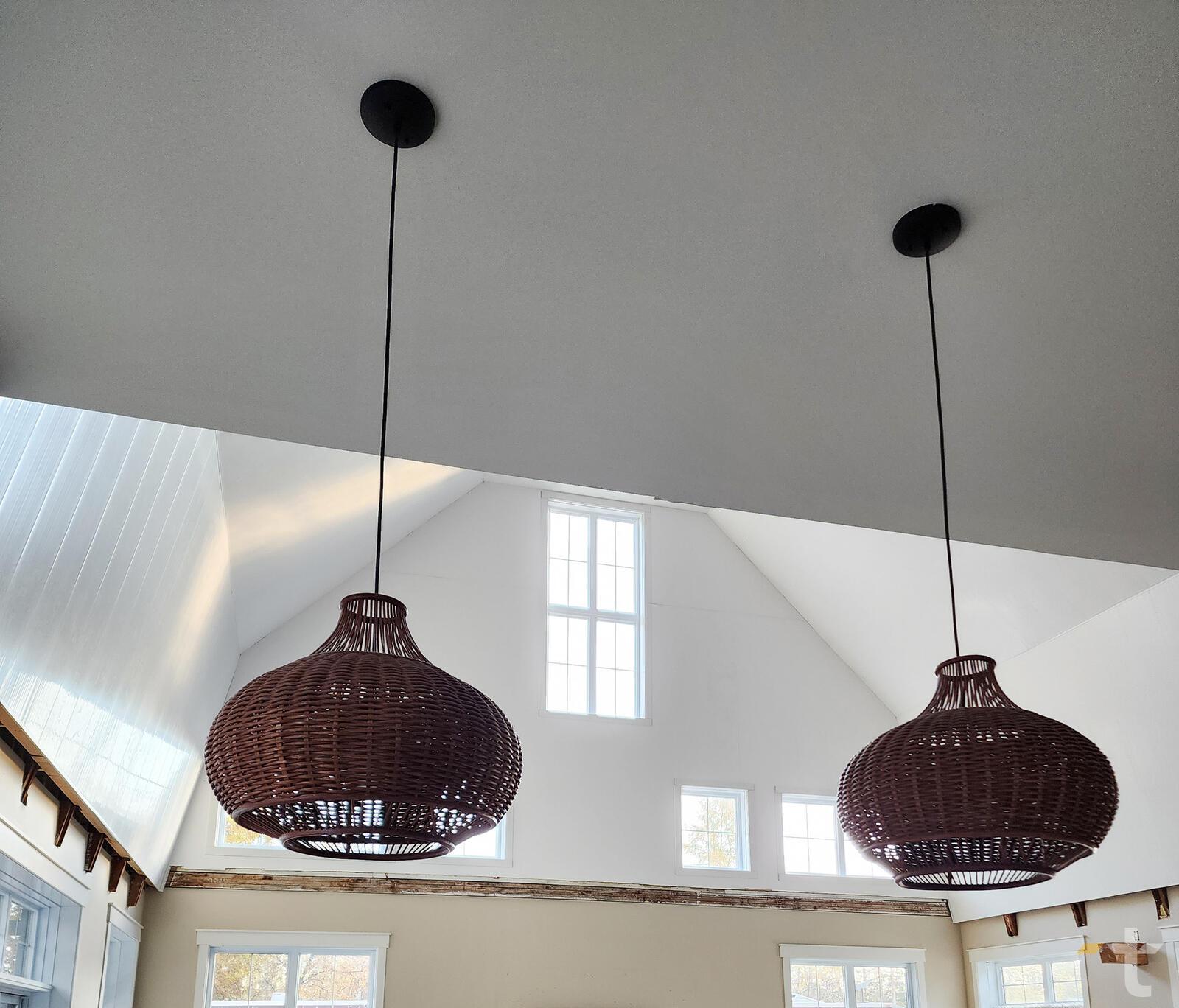

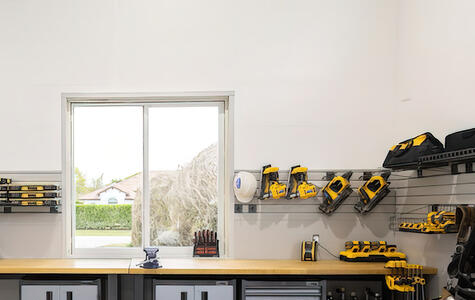

  • Barns & Workshops

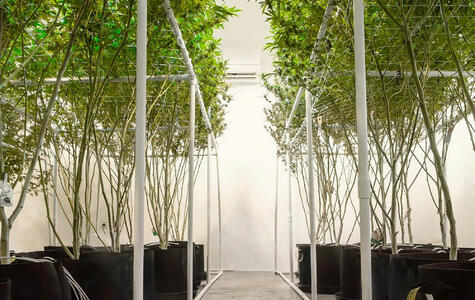

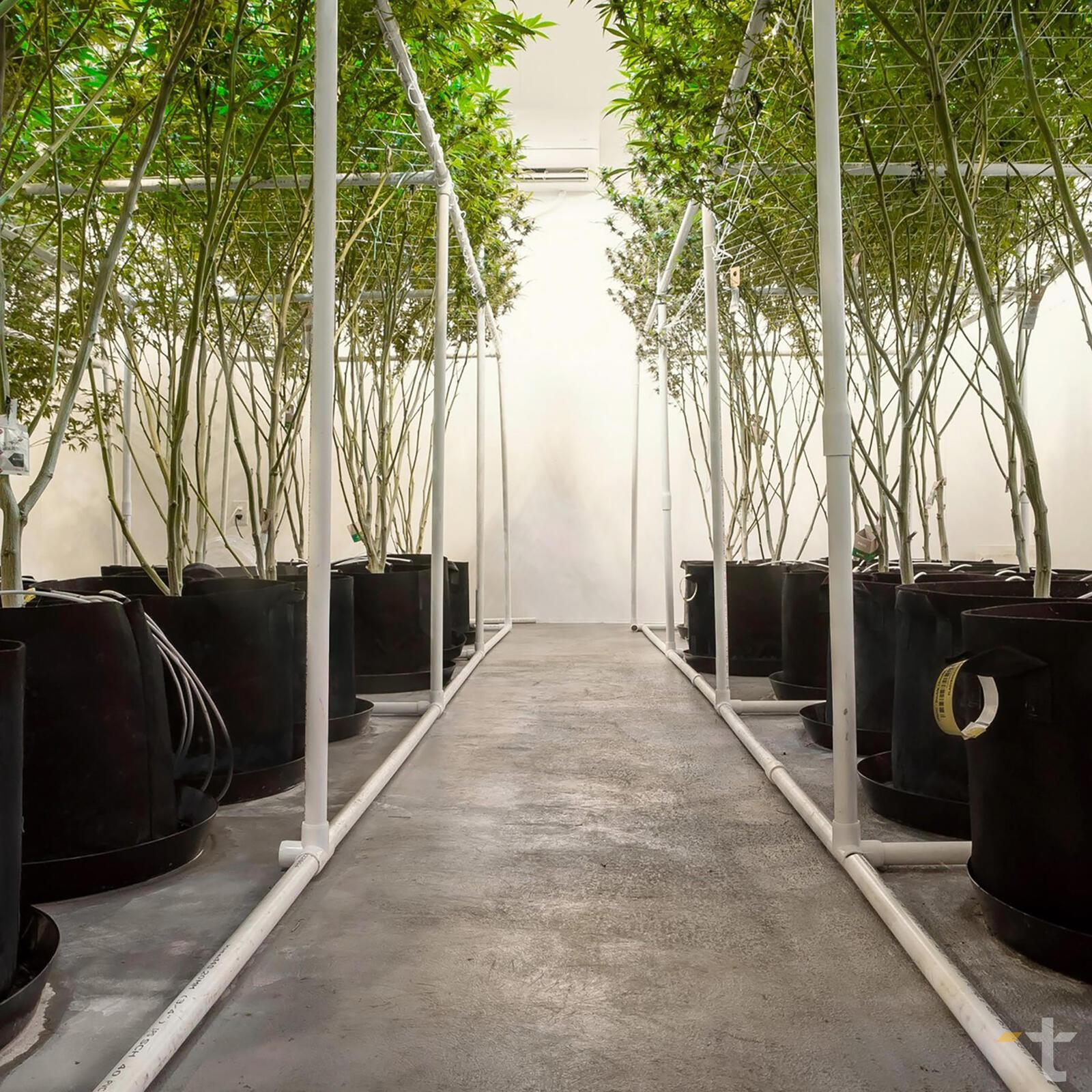

  • Indoor Grow Rooms

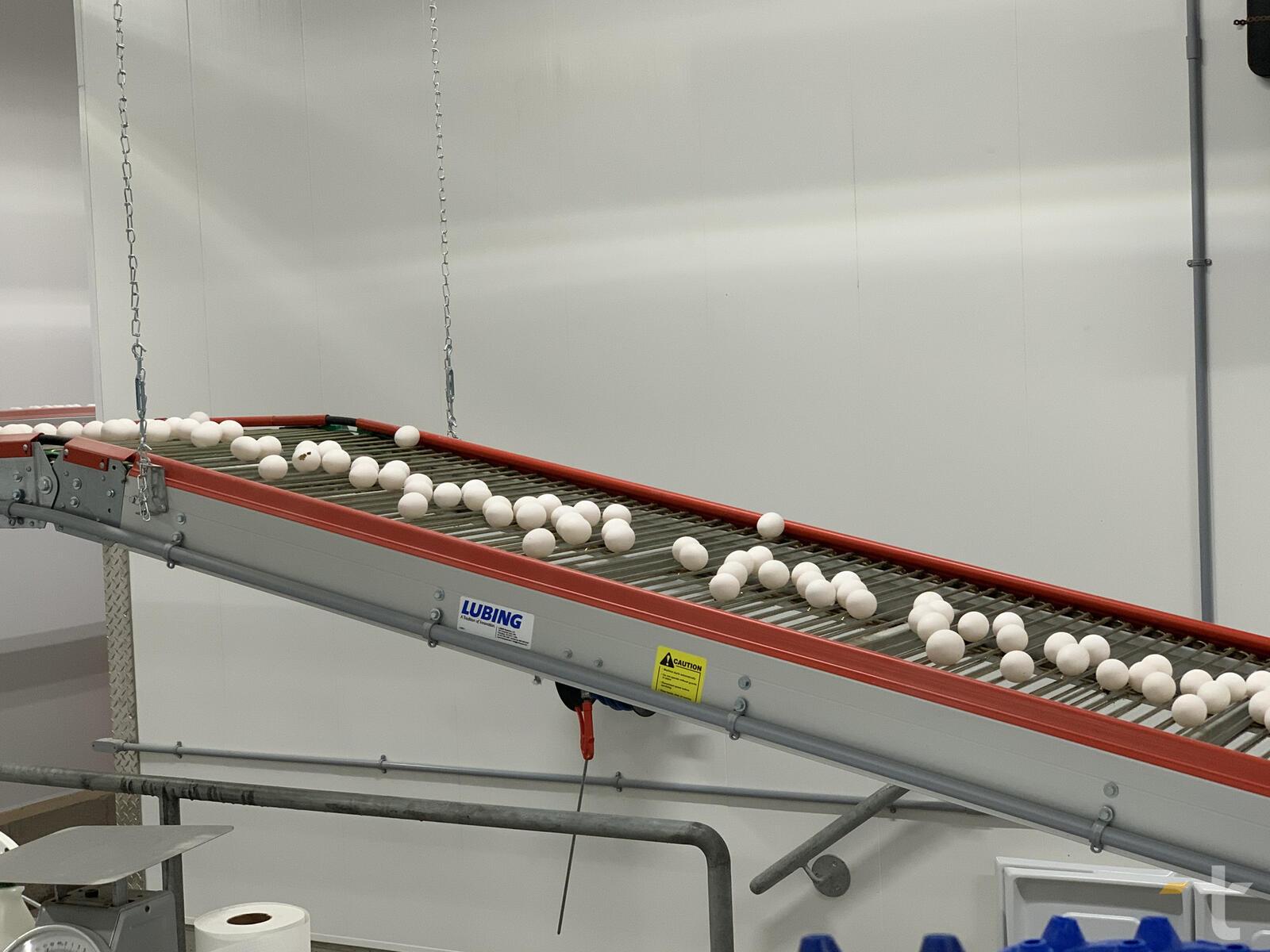

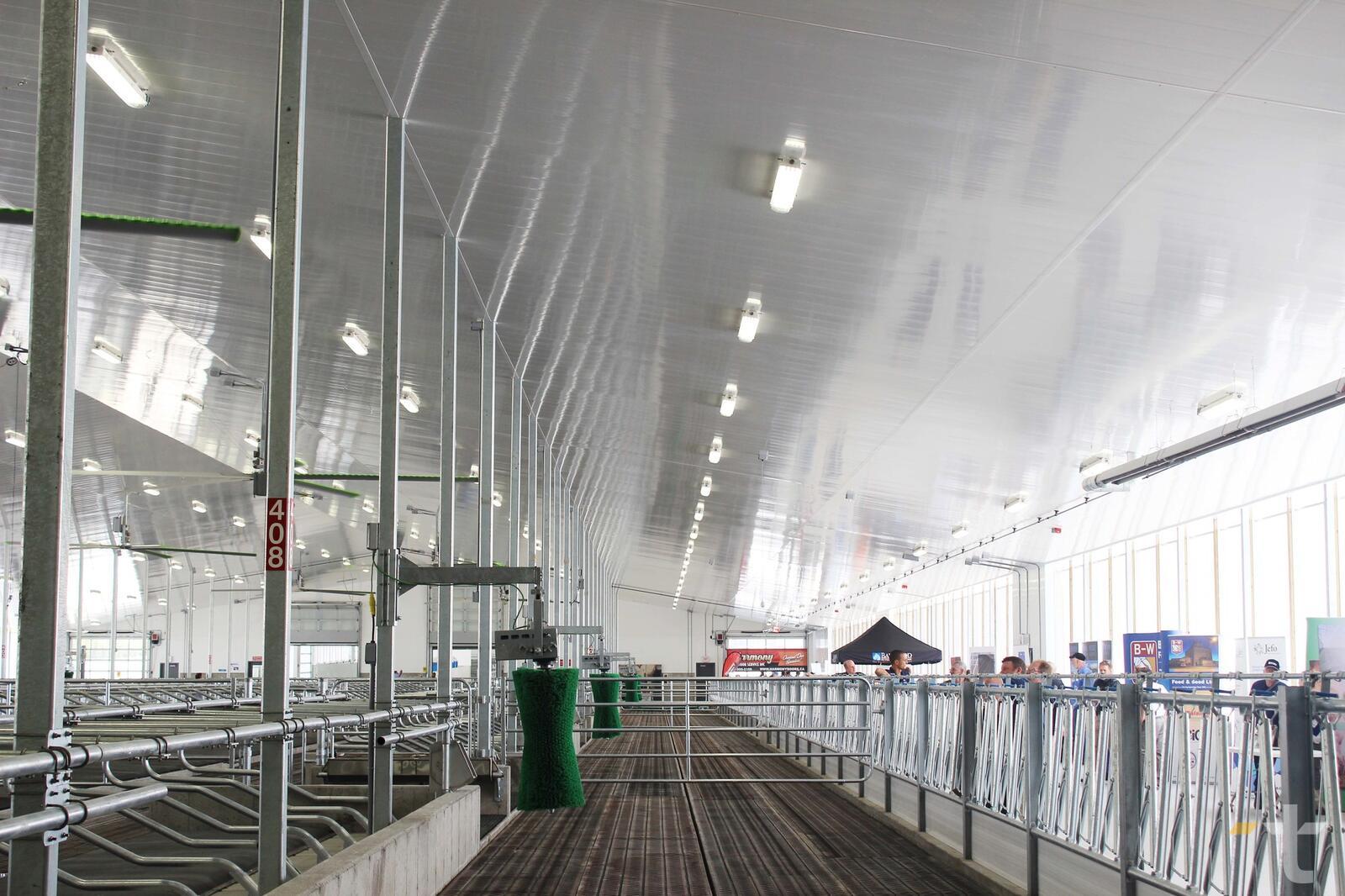

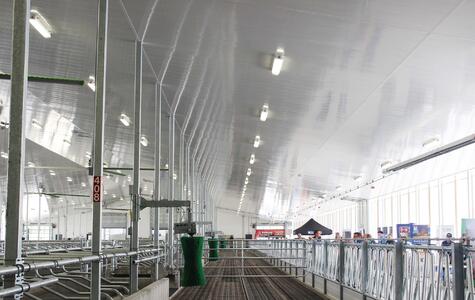

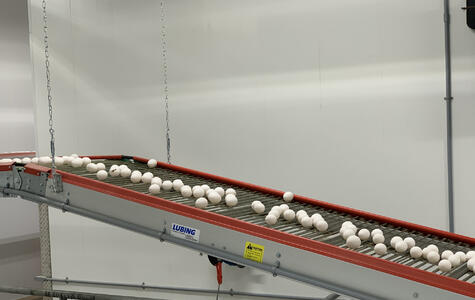

  • Dairy, Hog, and Poultry Facilities

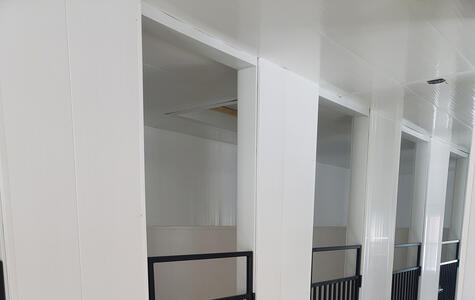

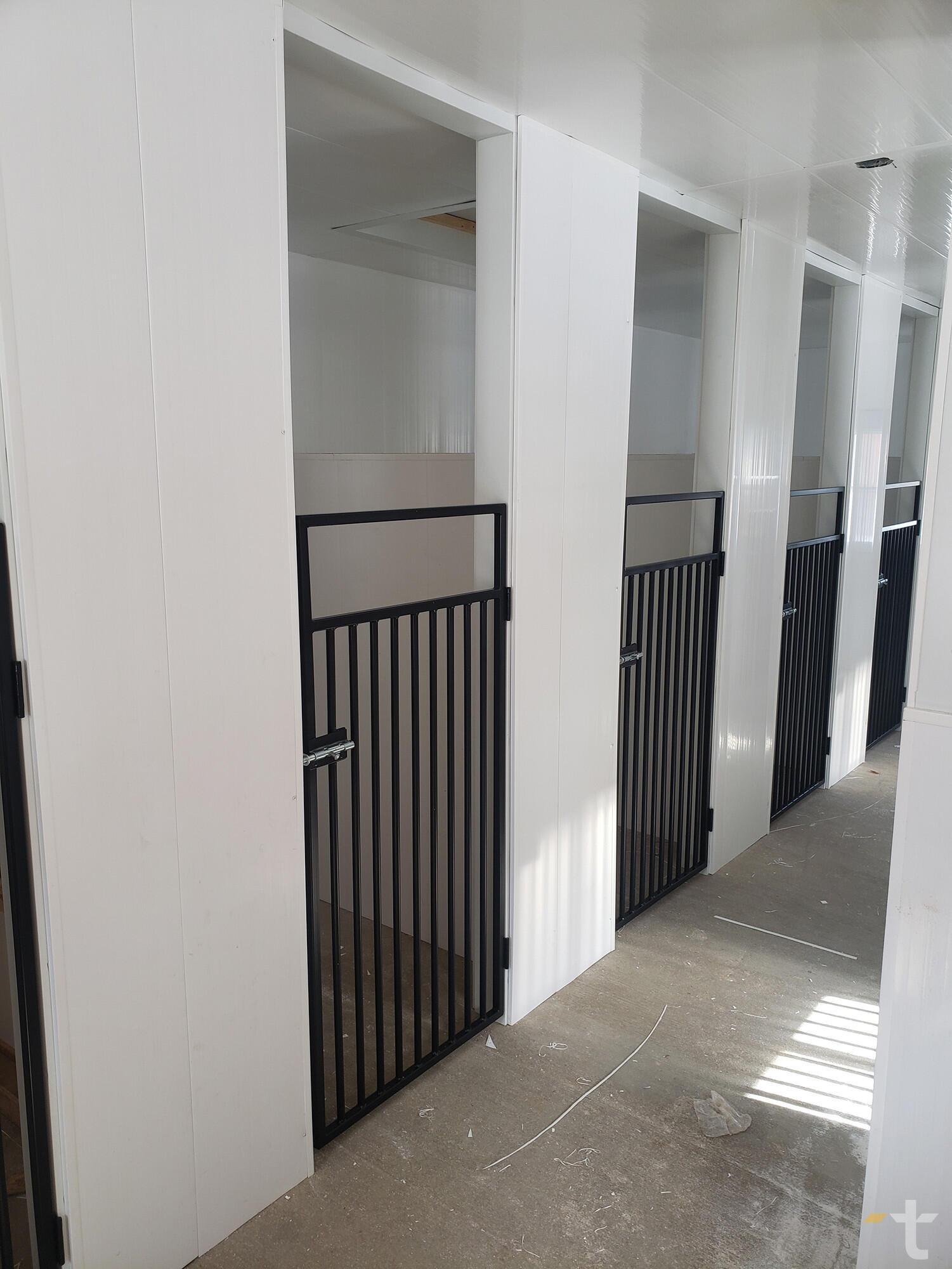

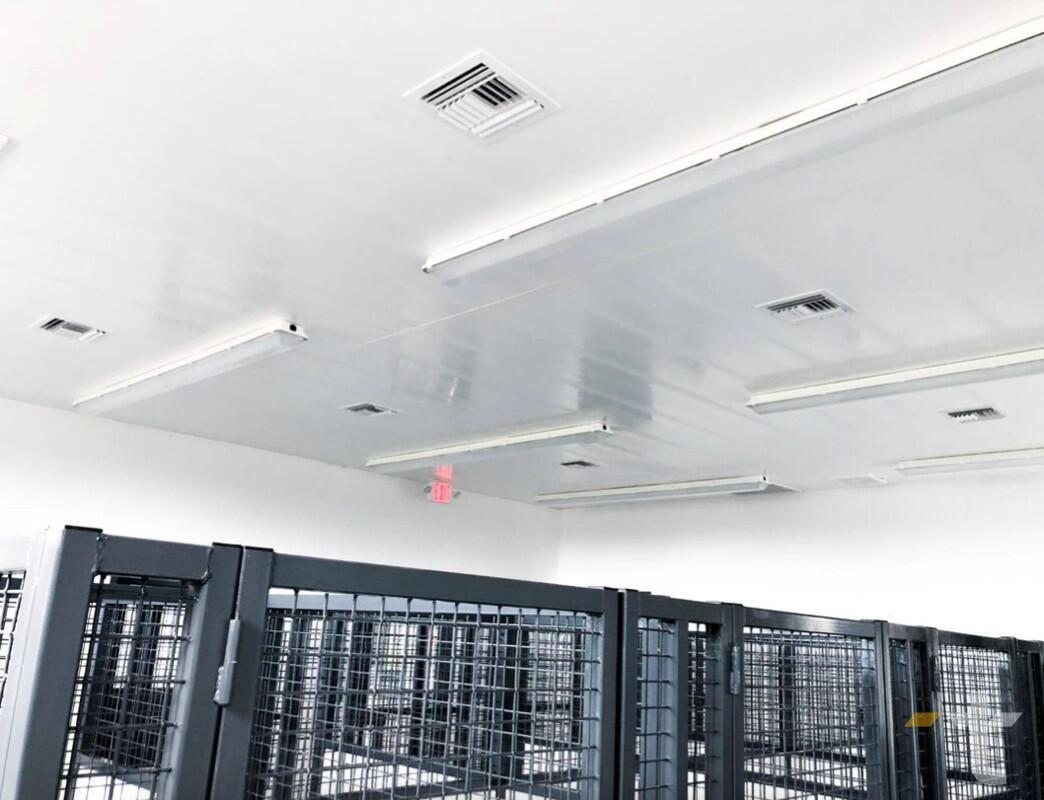

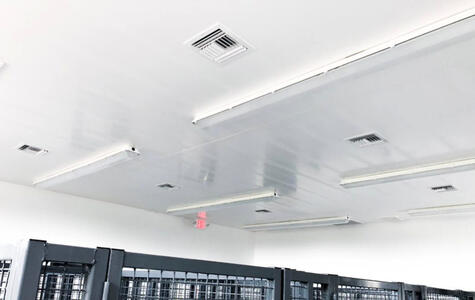

  • Dog Kennels

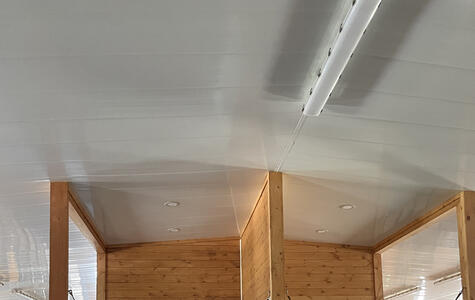

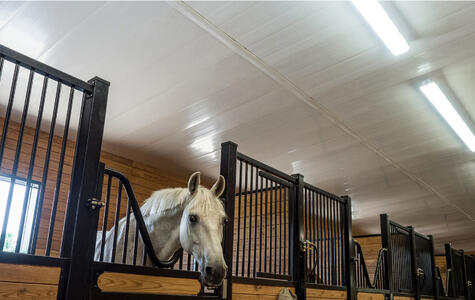

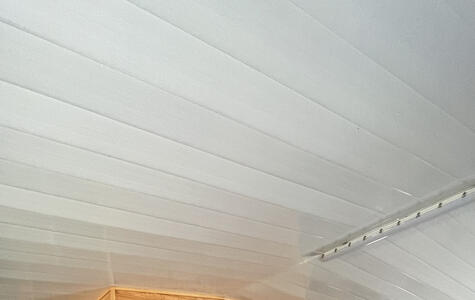

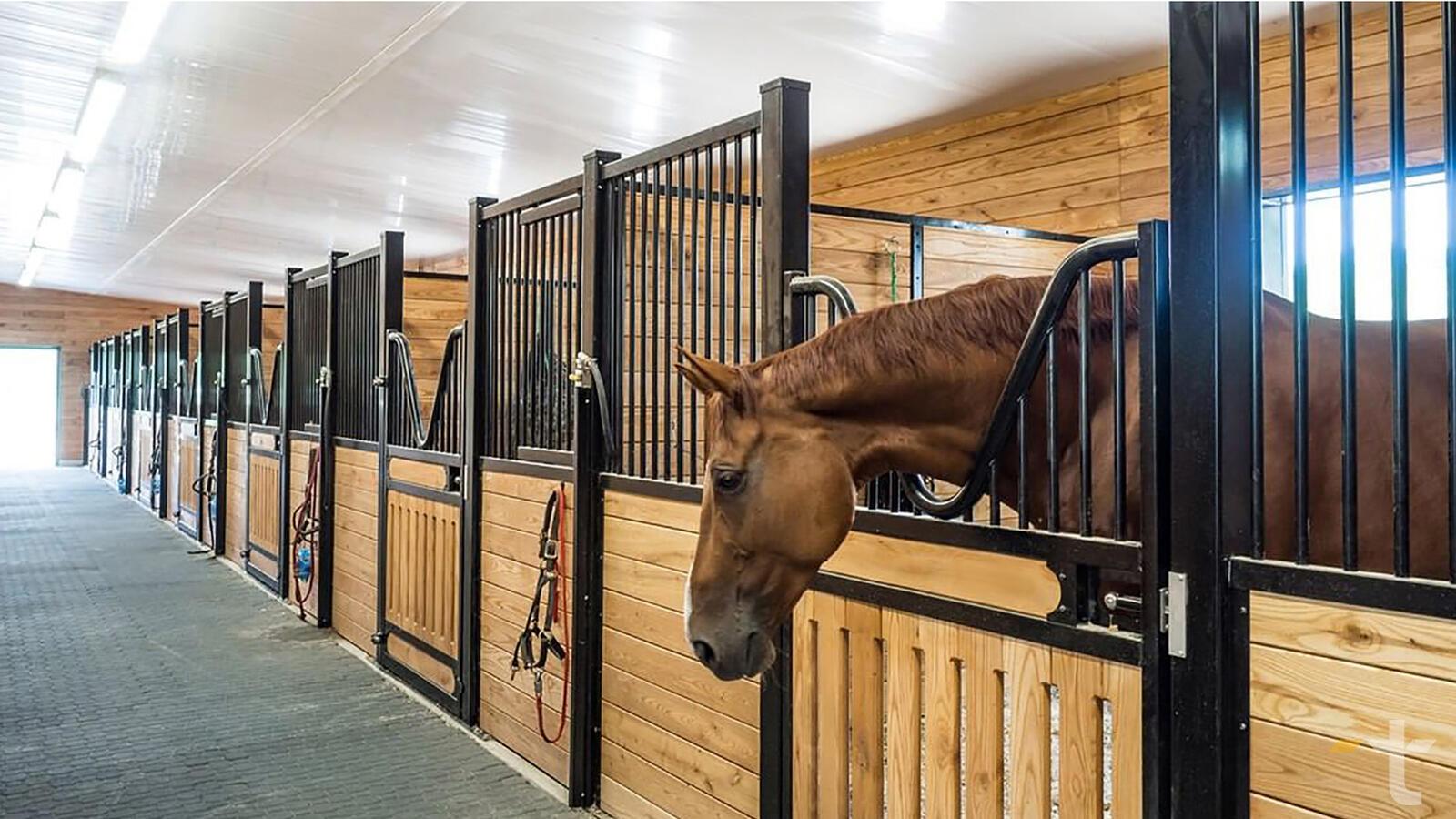

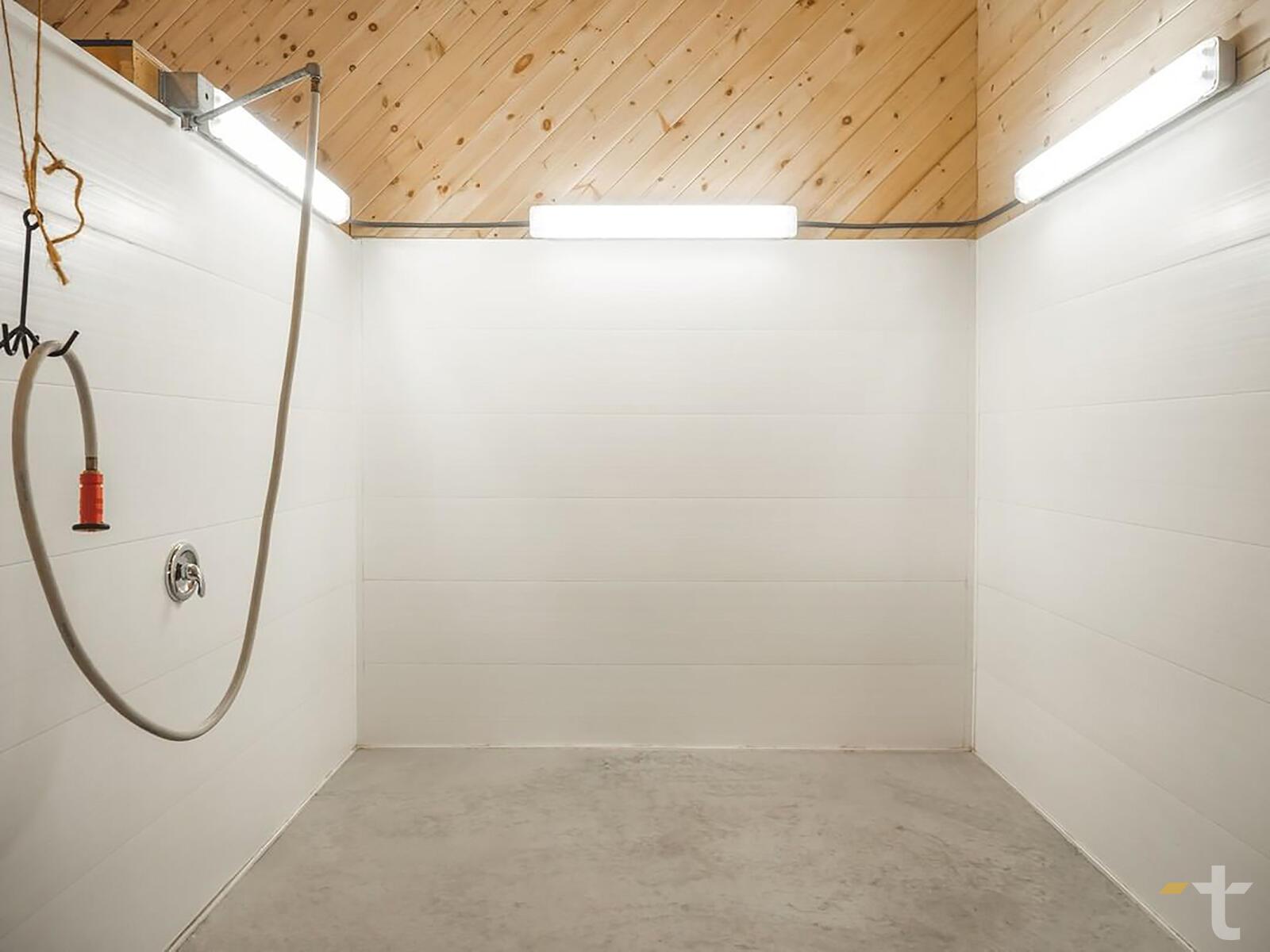

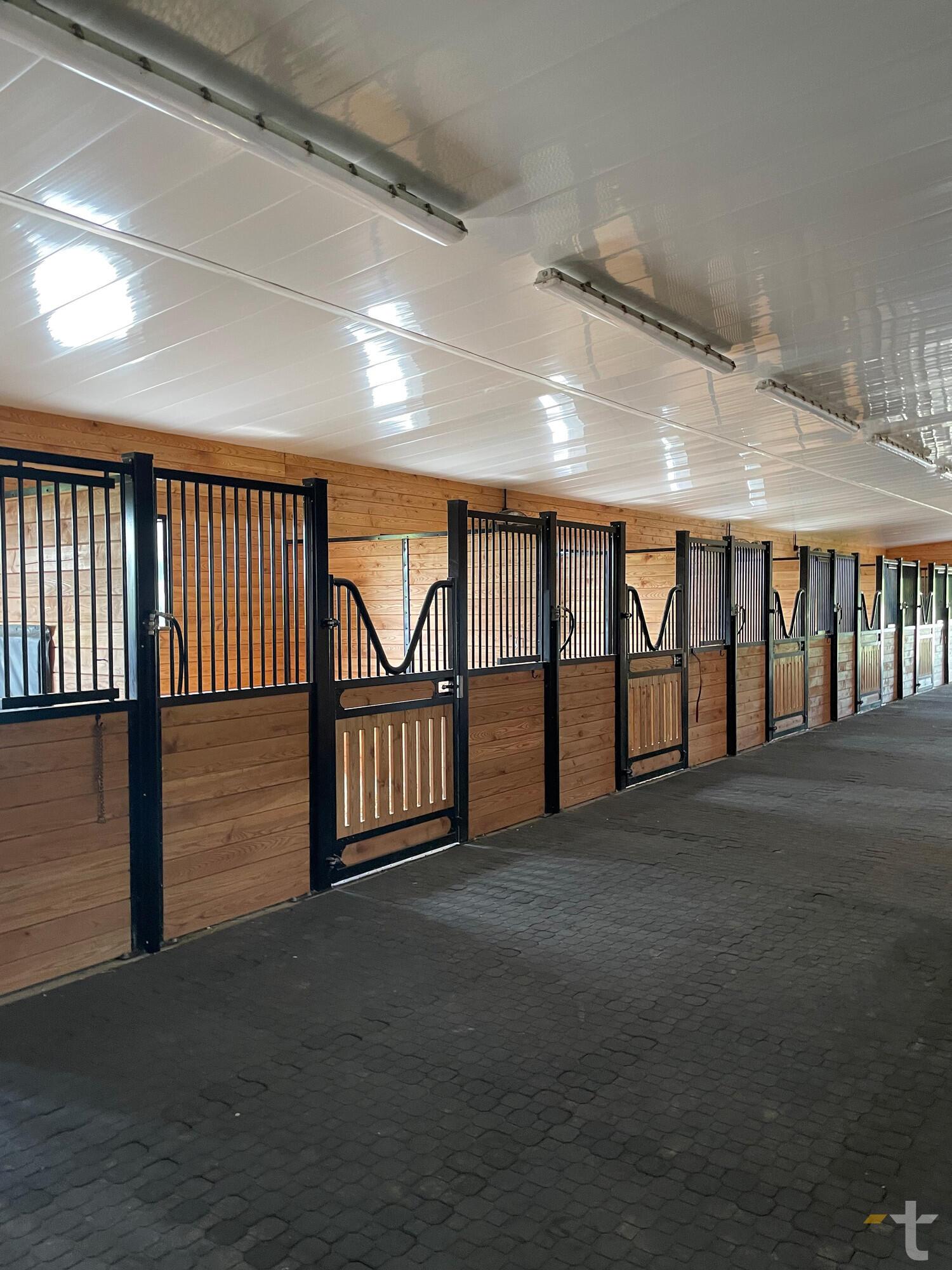

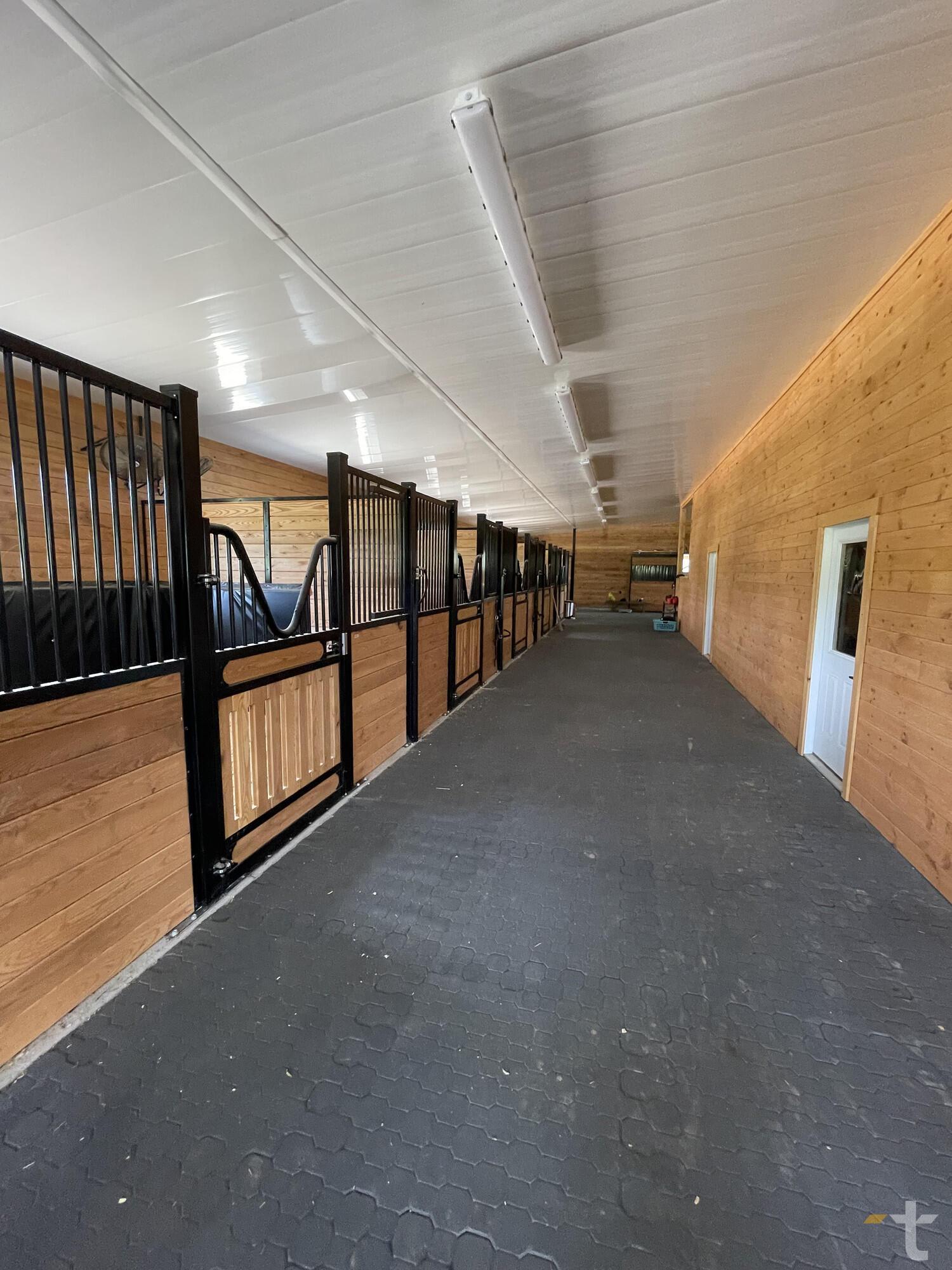

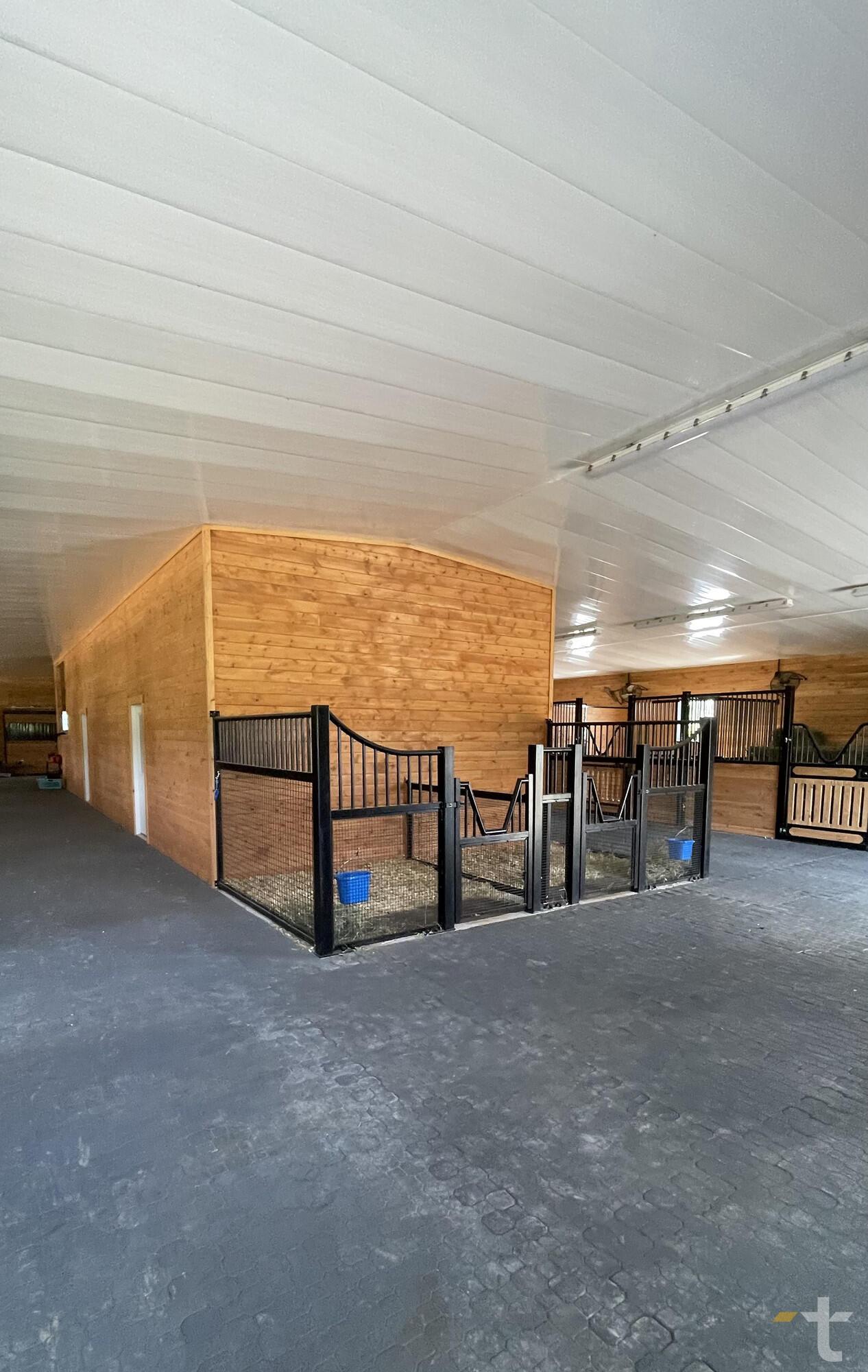

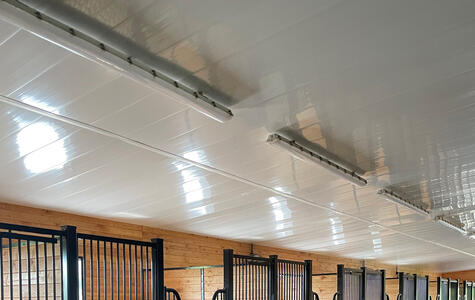

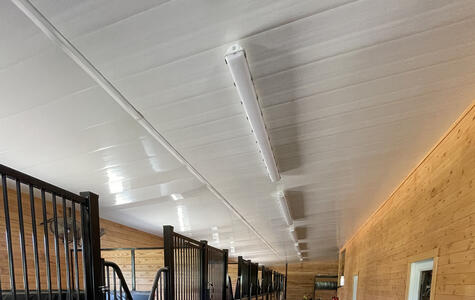

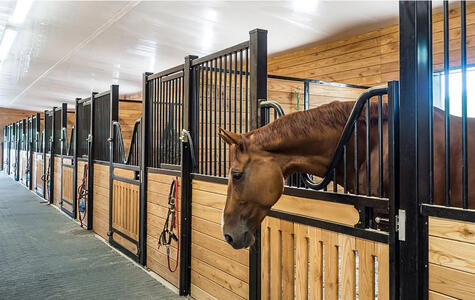

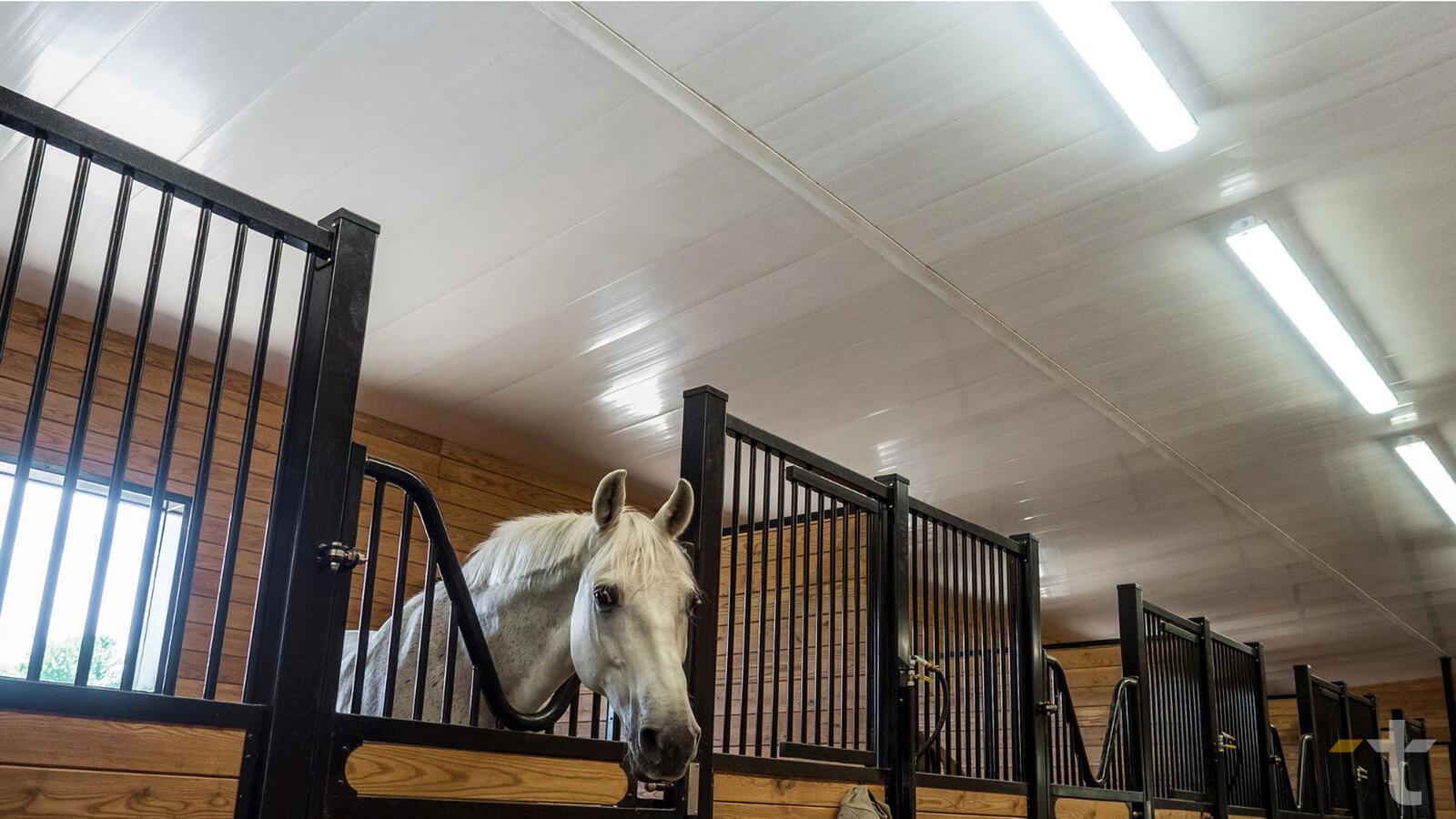

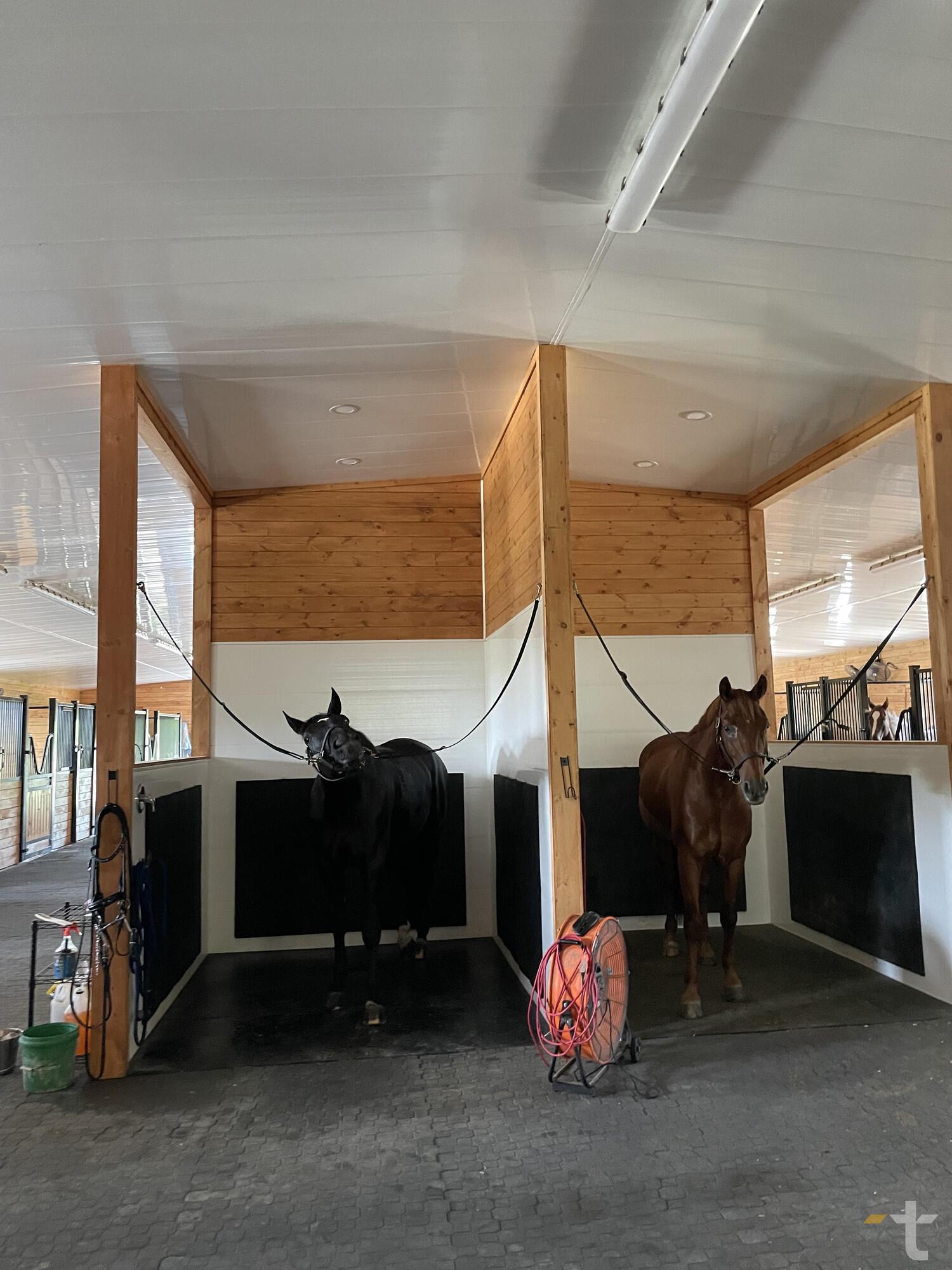

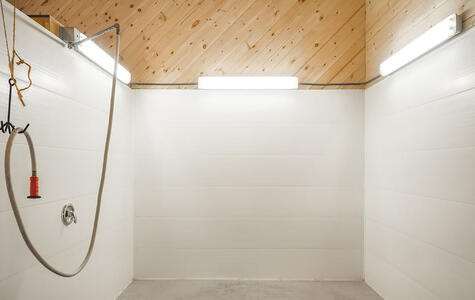

  • Horse Stables

Get inspired by Trusscore success stories

Trusscore Wall&CeilingBoard is transforming residential, commercial, and agricultural spaces across North America. See how happy our customers are with their finished projects by checking out the stories below.

...

Residential

Garage Reno Rescue

Mold, wear and tear, and insulation issues had left this homeowner's drywall-covered garage in need of serious intervention. Find out why he turned to Trusscore Wall&CeilingBoard and Trusscore SlatWall get the job done.

...

Commercial

Toasting Success in Creemore

Creemore Springs Brewery needed to upgrade the walls and ceiling in its fermenting room, where continually damp conditions caused drywall to degrade. Find out why Trusscore Wall&CeilingBoard proved to be the answer.

...

Agriculture

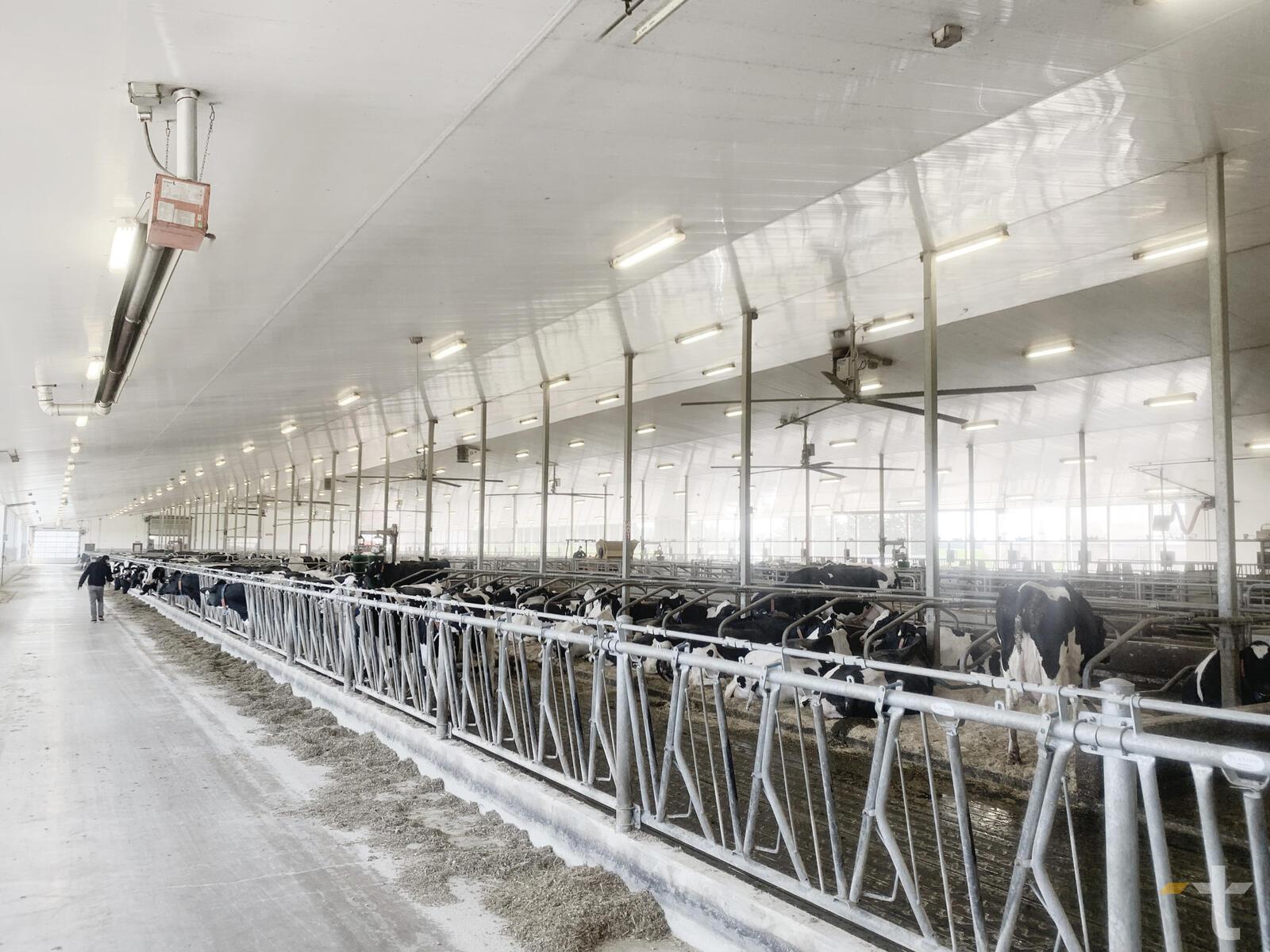

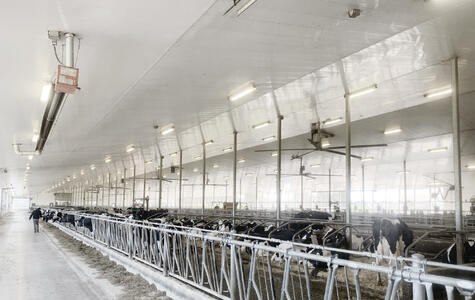

Dairy Done Right

White Rock Farms searched for a durable wall panel solution for the interior of its 700-head dairy operation, one that was easy to keep clean. The bullseye for this North Carolina dairy was Trusscore Wall&CeilingBoard.

Trusscore Wall&CeilingBoard will last a lifetime — we guarantee it with our warranty

When you buy Trusscore Wall&CeilingBoard, you’re covered by a 20-year standard warranty.
When you register your warranty with us, you’ll automatically receive extended lifetime warranty.

Download Warranty InformationRegister Warranty


Achieve your aesthetic, performance, and sustainability goals with Trusscore Wall&CeilingBoard

Made from PVC, Trusscore Wall&CeilingBoard is designed to replace conventional wall systems made from plywood, painted drywall, and FRP panels in a broad range of commercial and agricultural applications.


Product dimensions

TrusscoreWall&CeilingBoard is available in a standard width of 16” and a standard length of 8', 10', 12', 14', 16’ or 20’. Custom lengths are available subject to minimum order requirements.

Durability

Trusscore Wall&CeilingBoard durability testing results are as follows:

  • Specific Gravity (ASTM D792): 1.46
  • Tensile Strength (ASTM D638): 6575 psi
  • Tensile Modulus (ASTM D638): 377,000 psi
  • Yield Strength (ASTM D638): 6575 psi
  • Drop Impact Resistance (ASTM D4226): 2.08 ln-lb/mil

Volatile organic compounds

Trusscore panels are low VOC compliant per the California Department of Public Health Standard Method v1.2 testing standard.

Light reflectivity

White Trusscore panels have a high light reflectivity (LR) score of 0.9, meaning 90% of light will be reflected when it hits our panels.

Antimicrobial testing

Per third party testing (ISO 846:2019), Trusscore Wall&CeilingBoard provides complete protection against mold and bacteria.

Fire performance

Trusscore Wall&CeilingBoard has a "Class A" fire rating with a flame spread index of 10 and smoke developed index of 380, per CAN/ULC S102 and ASTM E84 testing.

Recyclability

Trusscore products are 100% recyclable and can be reground and reused to make new materials.

Streamline your design process with our collection of CAD drawings

Below you’ll find PDF and DWG files of Trusscore Wall&CeilingBoard panel profiles, Trusscore trim profiles, and Trusscore Wall&CeilingBoard vertical and horizontal steel, wood, and concrete masonry unit (CMU) wall assemblies.

...
Trusscore Wall&CeilingBoard: Section & Elevation

PDF | DWG


...
45 Degree H Channel

PDF | DWG


...
Base Trim

PDF | DWG


...
F-Trim

PDF | DWG


...
H-Channel Snap-In Trim

PDF | DWG


...
Inside Cove Corner

PDF | DWG


...
J-Trim

PDF | DWG


...
Outside Corner Rounded

PDF | DWG


...
Outside Corner Square

PDF | DWG


...
2Steel Stud With Insulation

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Square Corner

PDF | DWG


...
Steel Stud

Square Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Wood Stud

Square Corner

PDF | DWG


...
Wood Stud With Insulation

Square Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Steel Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded Corner

PDF | DWG


...
Steel Stud

Rounded Corner

PDF | DWG


...
Steel Stud With Insulation

Rounded Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Wood Stud

Rounded Corner

PDF | DWG


...
Wood Stud With Insulation

Rounded Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Square Corner

PDF | DWG


...
Steel Stud

Square Corner

PDF | DWG


...
Steel Stud With Insulation

Square Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Wood Stud

Square Corner

PDF | DWG


...
Wood Stud With Insulation

Square Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Square Corner

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Steel Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud With Insulation

Rounded & Square Corners

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded & Square Corners

PDF | DWG


...
8" CMU

Rounded & Square Corners

PDF | DWG


...
Steel Stud

Rounded & Square Corners

PDF | DWG


...
Wood Stud

Rounded & Square Corners

PDF | DWG


...
Concrete Masonry Unit (CMU)

Rounded Corner

PDF | DWG


...
Steel Stud

Rounded Corner

PDF | DWG


...
Steel Stud With Insulation

Rounded Corner

PDF | DWG


...
Steel Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Wood Stud

Rounded Corner

PDF | DWG


...
Wood Stud With Insulation

Rounded Corner

PDF | DWG


...
Wood Stud: 1Hr Fire Rating

Rounded Corner

PDF | DWG


...
Door & Trim Installation

Horizontal Panel Installation

PDF | DWG


...
Door & Trim Installation

Vertical Panel Installation

PDF | DWG


...
Window & Trim Installation

Horizontal Panel Installation

PDF | DWG


...
Window & Trim Installation

Vertical Panel Installation

PDF | DWG


...
Wood Stud

Horizontal Panel Installation

PDF | DWG


...
Wood Stud

Vertical Panel Installation

PDF | DWG


Download product and technical information about Trusscore Wall&CeilingBoard

If you’re looking for more detailed technical information about Trusscore Wall&CeilingBoard, explore the resources below.

  • Trusscore Car and Truck Washes Application Sheet

    Car and truck washes make heavy demands on its wall and ceiling coverings. The longevity of your facility depends heavily on your choice of materials. Trusscore has you covered. (735.68 KB PDF) - *


  • Residential Spaces - Application Sheet

    Trusscore wall systems are transforming the residential construction industry. Trusscore is perfect for residential spaces. (1.20 MB PDF) - *


  • Trusscore Dairy Application Sheet

    Dairy farmers know the problem areas in their barn because they’ve had to repair them several times. It’s time to choose a future-proof material that reduces the time and money spent on repairs that come with inferior products like FRP, glass board, concrete, plywood, and OSB. It’s time to choose Trusscore. (1.57 MB PDF) - *


  • Trusscore Hog and Pork Application Sheet

    In today’s competitive pork production business with strict biosecurity measures, maintaining clean and hygienic facilities that are high-strength and long lasting are critical for better productivity and profitability. (2.55 MB PDF) - *


  • Trusscore Poultry Application Sheet

    Poultry production facilities — for layers, broilers, breeders, and pullets — are some of the most demanding and harsh agriculture environments. Building them strong and keeping them clean with low maintenance is paramount to the productivity of your operations. (898.22 KB PDF)

Can’t find the information you’re looking for?

Contact us — a Trusscore Product Specialist is on hand with answers to any of your questions.

Ask an Expert

Earn LEED certification credits with Trusscore Wall&CeilingBoard

Leadership in Energy and Environmental Design — also known as LEED — is a globally recognized accreditation in the building sector which encourages green, sustainable building design. All Trusscore products, including Trusscore Wall&CeilingBoard can help builders earn credits in the Materials and Resources and Indoor Environmental Quality categories.

leed-table.svg

Visit our Trusscore & LEED Certification page to learn more.

Participate in accredited Trusscore training sessions

Learn how to design beautiful and functional spaces using high-performance PVC wall and ceiling systems in this free one-hour course accredited by the American Institute of Architecture (AIA) and the International Design Continuing Education Council (IDCEC).

Whether you choose to participate in an on-demand, live virtual, or in-person training session, you’ll earn one Health, Safety, and Welfare (HSW) credit from the AIA and IDCEC, and one learning hour from the Ontario Association of Architects (OAA).

...

Watch On-Demand

Looking for flexibility? Get your credit immediately with our on-demand option. Complete this 1-hour course on yout own time.

...

Join a Live Session

It's your chance to learn the course and get answers to your questions in real-time.

No live sessions for this course are currently scheduled. Watch this space for updates.

...

Book a Session

Who doesn't love Lunch & Learns?
Gather your colleagues and let's do this!

Get step-by-step instructions on how to install Trusscore Wall&CeilingBoard

Whether you’re brand new to installing Trusscore products or consider yourself a tried-and-true Trusscore expert, this page has everything you need to know when installing Trusscore Wall&CeilingBoard.

QuickStart Guide Installation Guide

...
Cold Weather Guidelines

For installations where the products must be installed below the reccomended temperature range.

...
Cleaning & Disinfecting Guidelines

Read through some guides to help you handle any level of dirt your Trusscore product encounters.

...
Painting Guidelines

Here is some information to keep in mind should you choose to paint your Trusscore products.

...
Epoxy Floors Technical Guide

This guide provides reccomendations when installing Trusscore products in applications where epoxy flooring is also used.

...

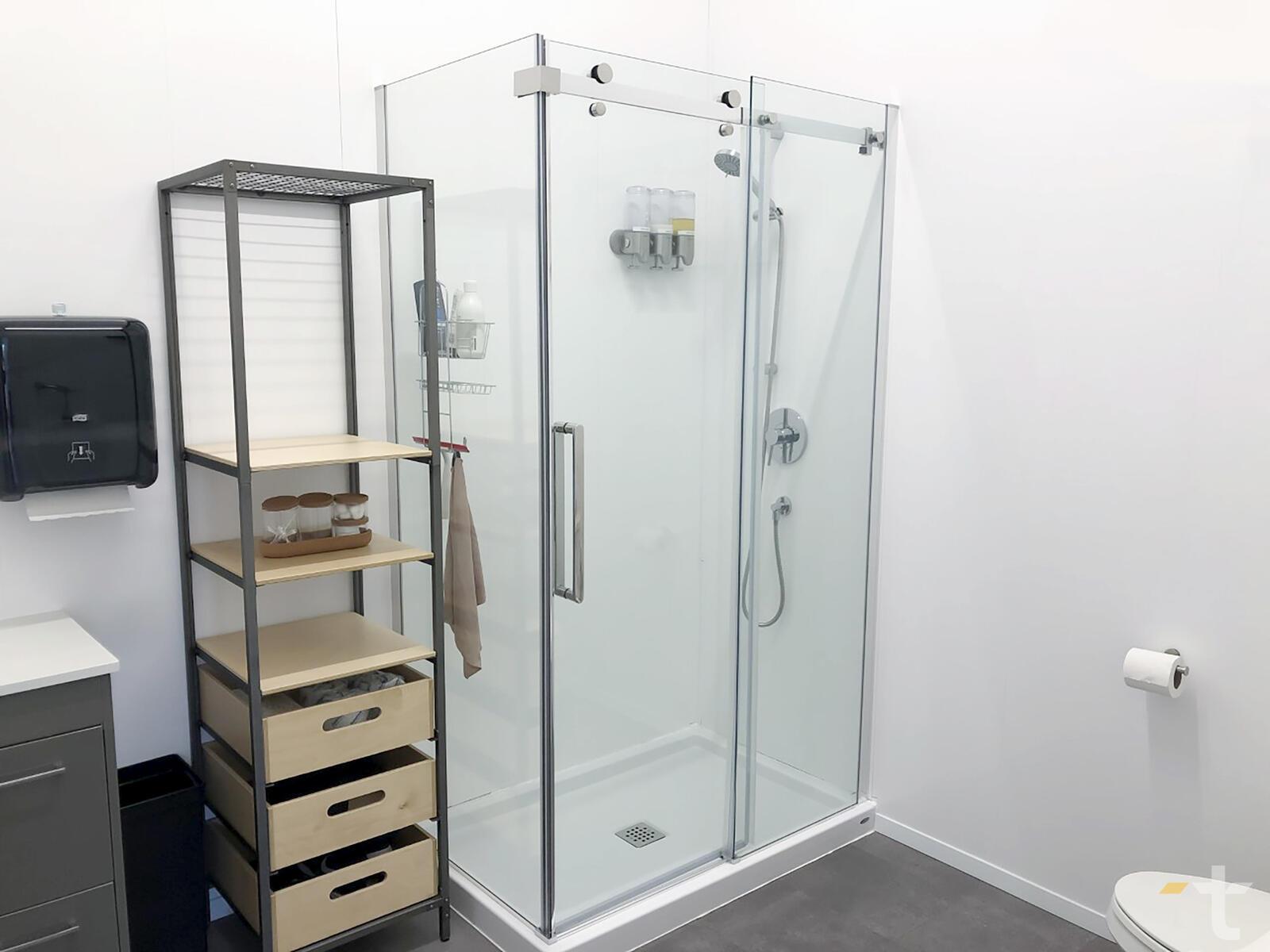

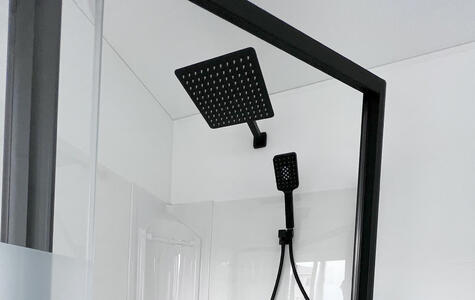

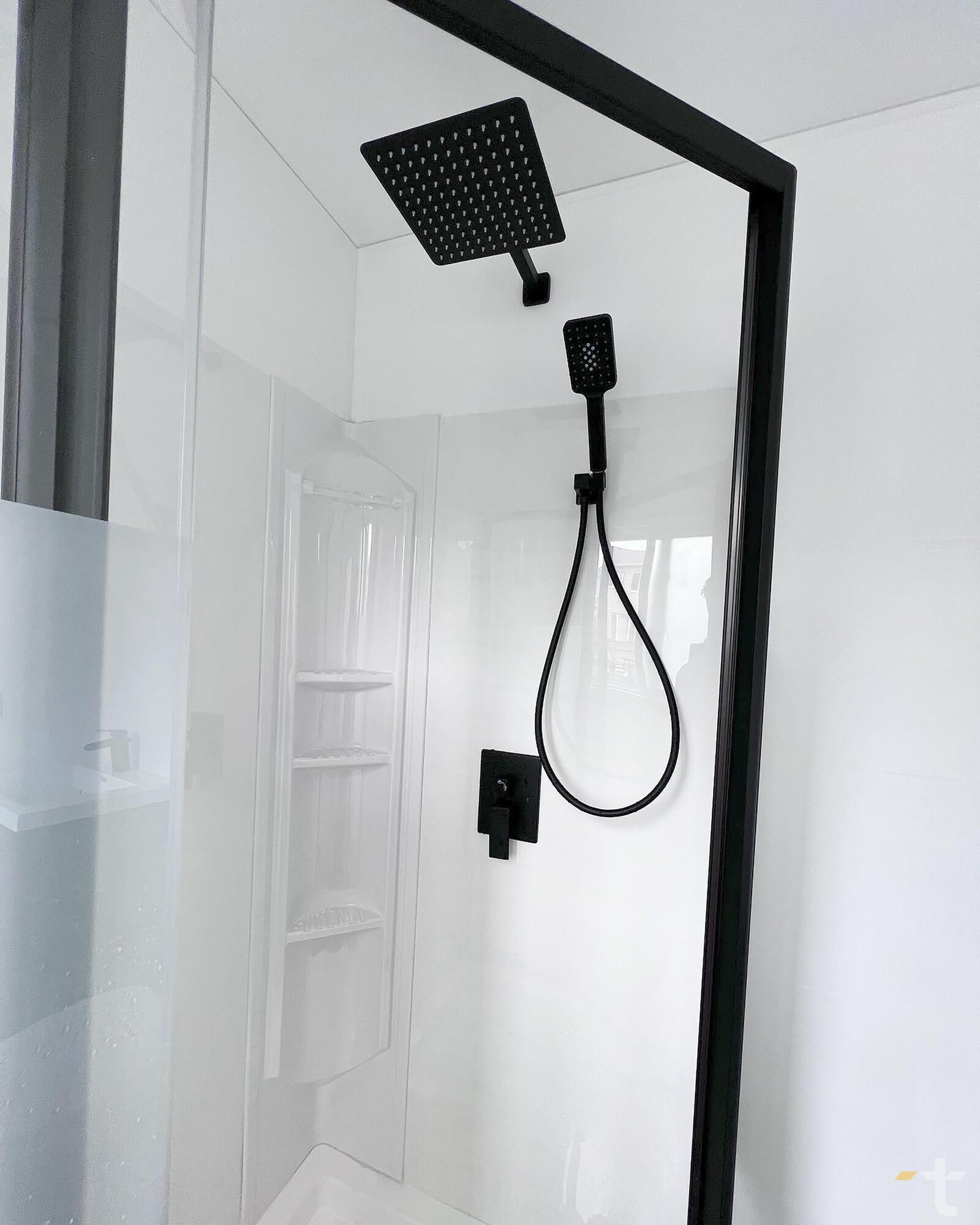

Trusscore Shower Technical Guide

This guide will provide steps on how to install Trusscore Wall&CeilingBoard panels in a shower enclosure to create a waterproof shower with a stylish design.

...
Fire Performance

Learn more about Trusscore fire rating and performance including its Class A fire rating, its use with fire-rated assemblies, and its thermal barrier requirements.

Order Trusscore Samples

If you haven’t used Trusscore before, samples of Trusscore Wall&CeilingBoard, Trusscore SlatWall, and Trusscore trim rings can help show you what you’ve been missing out on.

Order Samples

Find a Residential Retailer

Trusscore works with thousands of retailers across North America to bring you the best service and access to our products.

Where to Buy
